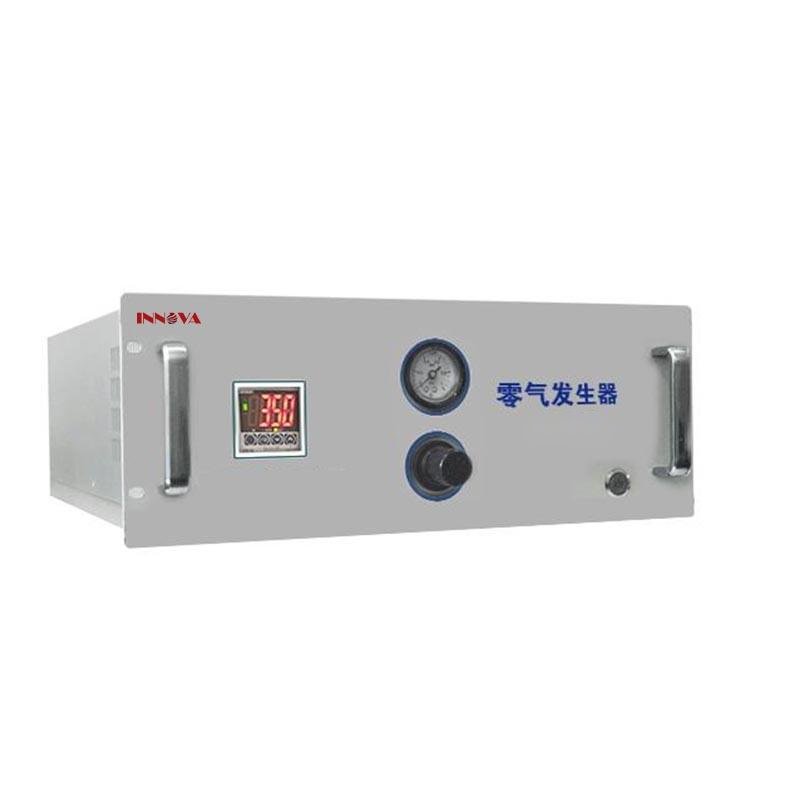

IZERO-air can provide clean and dry zero-gas air after internal multi-stage water removal, hydrocarbon removal and impurity removal. The equipment is mainly used for zero calibration of ambient air quality detection systems and instruments, and can also be used as penetrant tube furnace gas washing or FID analysis.
The zero gas generator components include an external oil-free air compressor, a pressure flow controller, a water removal system, SO2, NO, NO2, 03 and H2S removers, CO and hydrocarbon removers. Zero gas generator based on catalytic combustion reaction and molecular sieve adsorption filtration principle, remove SO2, NO, NO2, 03, H2S.cO, NH3, hydrocarbons, particles in the air, output dry and clean air.
| Argument | Index |
| Zero gas output | At 0.2MPa, the flow rate can reach 20 standard liters per minute |
| Maximum output pressure | 0.45 MPa |
| Dewpoint | -20℃, the flow rate reaches 15 standard liters per minute |
| Output concentration | SO2 < 0.5 PPB |
| H2S < 0.5 PPB | |
| NO < 0.5 PPB | |
| NO2 < 0.5 PPB | |
| O3 < 0.5 PPB | |
| CO < 0.025 PPM | |
| CH < 0.02 PPM | |
| Power supply | 220V~240V, 50Hz, 5A |
| Weight | 14kg |
| Specification | 53.5 cm x 42.5 cm x 17.5 cm |
| Temperature | 5℃ ~ 40℃ |
