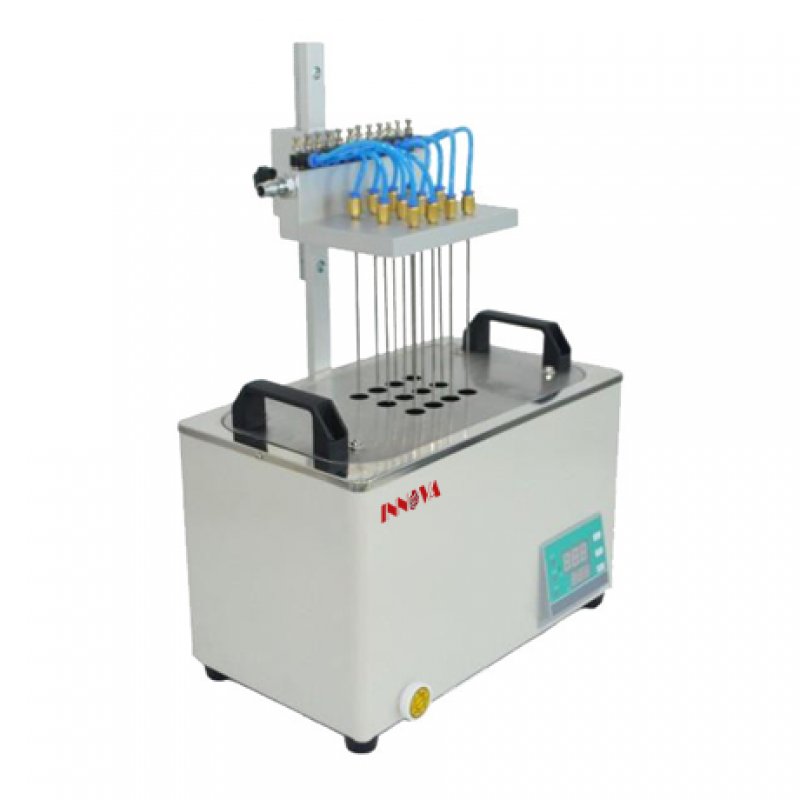

Water bath nitrogen evaporator adopts purge and trap technology，which can control the sample temperature and use inert gases such as nitrogen to quickly, controllably and continuously blow onto the sample surface to achieve rapid oxygen-free concentration of the sample.This method is time-saving, convenient and accurate.
● Each gas needle channel on the dispensing chamber can be used in combination or individually, and each gas needle can be opened and closed individually. The height of the dispensing chamber can be adjusted as needed.
● The gas flow rate of each channel can be adjusted individually to meet different needs.
● With special self-balancing suspension lifting system to flexibly adjust the height of dispensing room.
● Digital thermostat, dual digital display, over-temperature alarm.
● Solvent contact parts are made of 316 stainless steel and alloy aluminum for plastic spraying, with long service life and convenient cleaning.
● The entire machine can be put into the fume hood.
● Equipped with a gas flow meter to adjust the inlet flow rate.
● The standard heating block aperture is Φ15mm, which can be customized according to users need.
| Model | INE-12SL | INE-24SL | INE-36SL | INE-48SL |
| Number of samples | 12 | 24 | 36 | 48 |
| Heating mode | Water bath | |||
| Number of heating module | Standard with one test tube rack | |||
| Temperature control accuracy | ±1℃ | |||
| Temperature range | Room temperature ~100℃ | |||
| Temperature control mode | 4-digit digital display / PID adjustment / over-temperature alarm | |||
| Gas flow rate | 0-15L/min, adjustable | |||
| Nitrogen consumption | 330ml/min/sample | |||
| Dimension | 535*390*620mm | |||
