Vortex mixers are ideal for mixing liquid components in tubes, resuspension of cells, using an eccentric mechanism. They are widely used in clinical labs performing virus diagnostic tests and in biological & chemical analysis applications. It is perfect for mixing high-viscosity materials, such as waxes and slurries; to mix battery slurries, paints, pharmaceuticals and more.

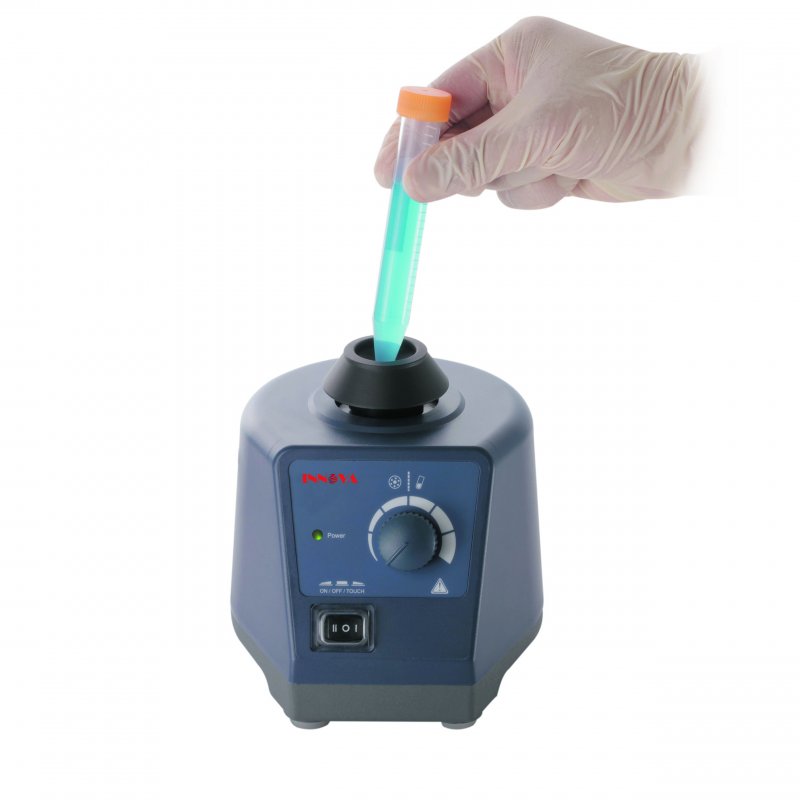

| MX-S Variable Speed Vortex Mixer |
• Variable speed of 0 to 3,000rpm for gentle shaking to rapid mixing of samples • Touch or continuous operation mode • Includes a standard top head for mixing a single test tube or other small vessel up to 30mm in diameter • Electronic speed control maintains constant speed even during changes in load • Steel base with specially designed vacuum suction feet provides stability and dampens vibration • Robust aluminum-cast construction |
||||||||||
| MX-F Fixed Speed Vortex Mixer |
|||||||||||
| MX-E Economic Vortex Mixer |
• Compact , portable and fits nicelyon bench-top (erase desktops and table tops) • Touch operation,Fixed speed of 3,000rpm for rapid mixing of samples • Powerful and efficient 12V DC brushless motor is smooth operation and has long life • Foot pad design secures the mixer in place and does not wobble during operation |
||||||||||
| MX-C Cell Disruptor |
• Durable, reliable and affordable • Easy to operate, rapid hands-free disruption of up to 8 microtubes • Processes at a constant, controlled shear rate • Maintains genome integrity of the biological samples • Facilitates subsequent purification of genomic material • Best suited for research laboratories demanding accurate, reproducible, repeatable results |
||||||||||
| Specifications |
MX-S (Adjustable speed) |
MX-F (Fixed speed) |
MX-E | Specifications | MX-C |
| Voltage,Frequency | 100-120V/200-240V,50/60Hz | 100-120V/200-240V,50/60Hz | 100-240V,50/60Hz | Voltage,Frequency | 200-240V/ 100-120V, 50/60 Hz, |
| Power | 60W | 60W | 12W | Power | 60W |
| Mixing motion | Orbital | Orbital | Orbital | Shaking movement | Orbital |
| Orbital diameter | 4mm | 4mm | 4.8mm | Orbital diameter | 4mm |
| Motor type | Shaded pole motor | Shaded pole motor | - | Run type | High-speed circumferential |
| Motor rating input | 58W | 58W | 10W | vortex and oscillation function | |
| Motor rating output | 10W | 10W | - | ||
| Speed range | 0-3000rpm | 3000rpm | 3000rpm | Speed range | 0-3000rpm(Adjustable) |
| Speed display | Scale | - | - | Speed display | Scale |
| Run type | Touch operation/Continuous | Touch operation/Continuous | Touch Operation | Dimension | 127X130X160mm |
| Weight | 2.0kg | ||||
| Dimension[W×H×D] | 127×130×160mm | 127×130×160mm | 133X133X80mm | Capicity | 8×2mL |
| Weight | 2.0kg | 2.0kg | 0.6kg | Functions | Disrupts cells, yeast, bacteria, |
| Permissible ambient temperature, Permissible relative humidity | 5-40℃, 80%RH | 5-40℃, 80%RH | 5-40℃, 80%RH | algae, fungi, etc.to prepare cell | |
| Protection class | IP20 | IP20 | IP21 | lysates for further processing |
