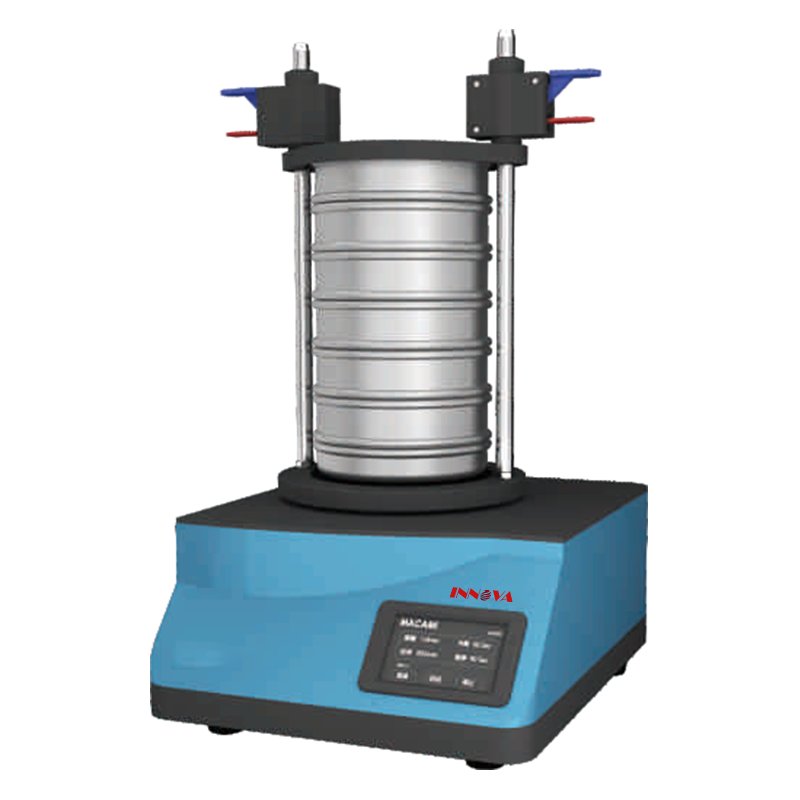

Vibrating Separator IMS60 is widely used in the research and development of raw materials, semi-finished products and final products, process quality control and quality inspection. Meeting all customer needs and expectations, the instrument is suitable for dry/wet screening. The vibrating screen adopts electromagnetic drive power, which can produce three-dimensional throwing motion effect, so that the sieve can uniformly distribute motion on the entire screen cross-section. Each screen is equipped with an independent amplitude setting, which ensures that the sample properties are matched, so that accurate analysis can be made even when the screening time is short.
◆ Intermittent mode can be set to ensure the screening rate of the sample;
◆ With dry screen and wet screen two functions;
◆ No maintenance, very quiet operation;
◆ Unique three-dimensional throwing operation, to ensure the high precision of screening;
◆LED5 inch touch screen, intelligent control, easy operation;
◆ Digital setting, can get accurate and repeatable results;
◆ Reliable screening results, comfortable and convenient humanized design;
◆ Can be connected to the computer to use special screening software for operation control, data processing record and analysis, screening evaluation.
| Size range of screening | 20 microns to 25 mm | Storable parameter | 20 groups |
| Amplitude range | 0.2~3.0 mm | Maximum load | 3.0 kg |
| Time frame | 01 to 99 minutes | Rated power | 400 W |
| Intermittent range | 00~99 seconds | Rated voltage | 220 V, 50 HZ |
| Drive screening mode | Electromagnetic drive | Instrument size | 450*500*260 mm |
| Optional screen diameter | 100\150\200\203 mm | Package size | 400*650*650 mm |
| Screening number | Lv. 9 | Instrument weight | 46 kg |
