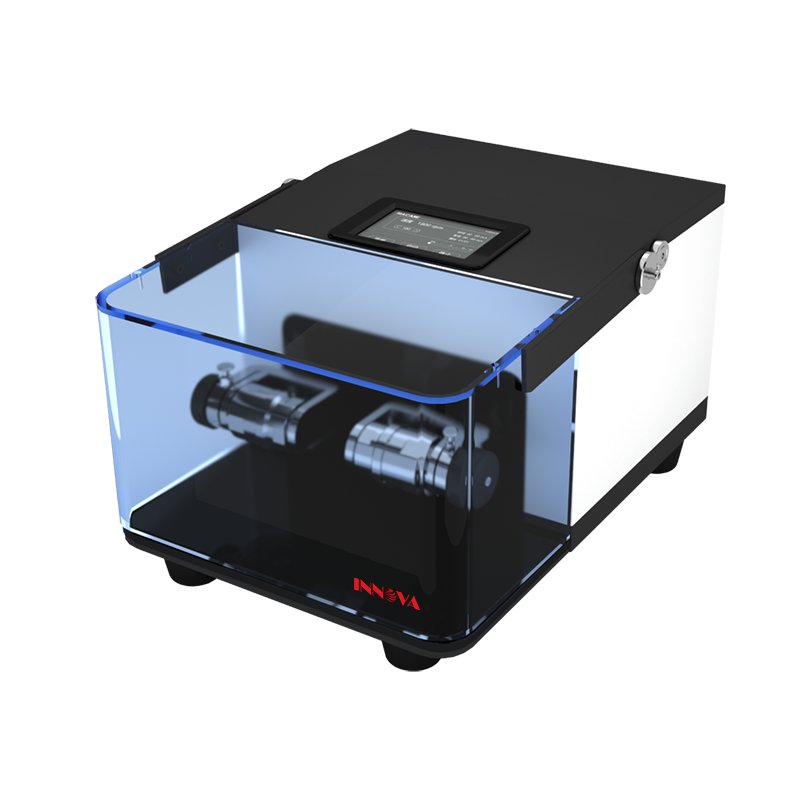

IMB60 vibrating ball mill takes only a few seconds to achieve the purpose of crushing, mixing and homogenizing the sample. In addition, this instrument is particularly suitable for biological cell wall breaking and DNA/RNA extraction. Moreover, the instrument can also perform cryogenic milling of heat-sensitive samples.
◆ Can be used for dry milling, wet milling and frozen milling;
◆ Very short milling time, can achieve fine milling effect;
◆ High throughput design, up to 192 biological samples can be broken;
◆ Experimental parameters can be preset through the LED panel, and the milling results are highly repeatable;
◆ Top cover with safety interlocking device, high safety design to ensure the safety of experimental personnel;
◆ 5-inch LED control panel can set parameters such as operation time, intermittent time and milling speed;
◆ A variety of materials and specifications of milling tanks and related accessories can be selected, can be suitable for different experimental needs;
◆The instrument adopts an integrated motor switch, which can be started only when the organic cover is closed.
◆ The cover cannot be opened during the operation of the instrument;
◆ Specially designed safety locking device of milling tank ensures the tightening safety of milling tank to the greatest extent;
◆ Advanced Easy Clamp system, can fast and efficient tightening milling kit;
◆ A variety of milling kits can be selected, and the effective volume of the milling tank is from 0.2 ml to 6*100 ml.
| Injection size | <10 mm | Instrument size | 370*500*350 mm |
| Rated power | 200 W | Sample size | 0.2 ~ 400 ml |
| Sample size | <5 microns | Package size | 480*380*650 mm |
| Rated voltage | 220 V, 50 HZ | Time setting | 00:01~99:59 minutes/second |
| Rotational speed | 180~1800rpm/min, up to 2000 rpm,continuously adjustable | Instrument weight | 36 kg |
