With saturated steam as sterilization medium, INOVPSS series vertical pressure steam sterilizer discharges coldair through gravity so that the saturated steam completely penetrates to the surface of articles. Using thesaturated steam under high pressure to kill all microorganisms and their spores, it can achieve reliable sterilization effect, and is the most effective method in physical sterilization, lt is suitable for medical service and healthcare, scientific research, university laboratories, hospitals at all levels, centers for disease control and preven.tion, inspection and quarantine institutions as well as other relevant enterprises and institutions, and is widelyused in medical service, medicine, biochemistry, agricultural science, laboratories, colleges and universitiesand other sectors for sterilization for rubber, dressing, liquid, devices, etc.

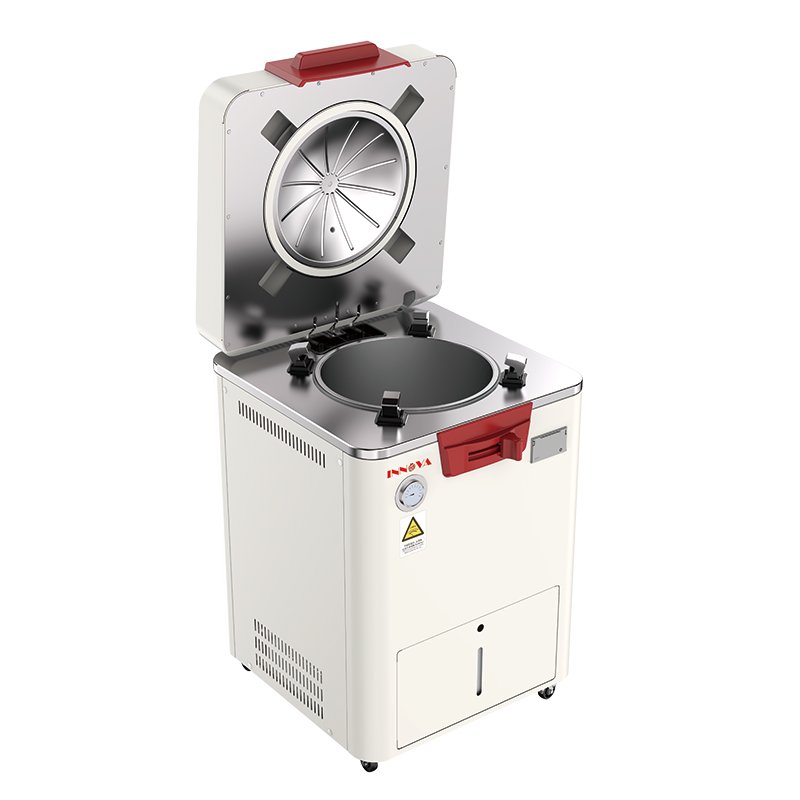

1.Top Flip-up DoorOpening Structure
Uses the compact top-and-bottom opening design.
2.Door Locking Technology
Uses the multi-point evenly-distributed synchronous linkage press-fit technology, making the door sealing more reliable.
3.Humanized Operation InterfaceUses a 7-inch true color touch screen to display the parameters at the same time: sterilization temperature,sterilization time, sterilization mode, door status, article temperature, operation process status, sterilization process curve diagram and alarm status, etc.
4.Rich Program Content
Presets 10 standard programs and 200 custom programs so that normal sterilization, solid, liquid, agalmedium dissolution and insulation, waste, etc. can be handled by making simple settings.
5.Quick Cooling
Comes standard with a cooling fan, thus shortening the cooling time.
6.Double-temperature Testing in the Internal Chamber
The sterilizer is provided with a fixed temperature probe (optional), which is movable, for which different temperature control modes can be set based on diferent loads such as solid & liquid sterilization and user requirements. Dual detection and sterilization is more safe and reliable.
7.Printing
The sterilizer is provided with a needle printer (optional), which can print the temperature, time, steam discharge, cooling, start time and end time of sterilization in the process ofsterilization. Built-in with F0 value calcu-lation function, it can print F0 value, convenient for users to record and trace.
8.Auto Start
Sterilization programs are able to run automatically at a set time.
9.Memory Storage
The sterilizer is able to store 20,000 pieces ofsterilization records, and allows access to the historical data and the export with a USB disk.
| Model | INOVPSS-60 | INOVPSS-85 | INOVPSS-100 | |
| Model | Intracavity volume (L) | 60 | 85 | 100 |
| Dimensions (W × D × H)mm Sterilization chamber size |
650x660x865 | 650x660x1030 | 650x660x1155 | |
| (Diameter×Height) mm | ø 405x506 | ø 405x706 | ø 405x831 | |
| Working power supply | AC220V士10% 50Hz | |||
| Chamber body | Material of sterilization chamber |
2.5 mm thick 06Cr19Ni10 stainless steel | ||
| Heater for sterilization | 3200Wx1 | |||
| Cooling fan | Axial flow fan | |||
| Design pressure (MPa) Maximum working |
0.35 | |||
| Performance | Pressure (MPa) | 0.27 | ||
| Design temperature | 150℃ | |||
| Working temperature for sterilization |
105°C~138°C | |||
| Working temperature for dissolution |
60~100°C | |||
| Unlocking temperature | 40°C~99°C | |||
| Temperature display accuracy | 0.1℃ | |||
| Cover structure/Cover opening (closing) mode | Manual top-and-bottom opening/closing type (with safe locking structure) |
|||
| Locking mode | 4 claws for locking | |||
| Steam discharge mode | Built-in condenser and water collection tank,automatic internal discharge, without steam external discharge | |||
| Verification interface | G1/2A pressure verification interface and GlA temperature verification interface reserved | |||
| Control | Temperature control mode | Microcomputer automatic control,7” LCD touch screen | ||
| Storage system | The memory stores 210 programs and theUSB disk stores 20,000 pieces ofsterilization process records. | |||
| Operating function(working mode) | Bare device, encapsulated device, dressing procedure, rubber procedure, liquid procedure, liquid with insulation, agar melting, medium sterilization, medium dissolu-tion, waste sterilization, custom program l and custom program 2 available. | |||
| Other functions | Program lock, reservation, memory, forced cooling, fault recording, cumulative time.cumulative operation times, time display, operating sound ON / OFF setup, articletemperature sensor (optional), data reading and F0 value calculation. | |||
| Timer presetting range | No limited sterilization time | |||
| Pressure gauge display range | -0.1~0.5MPa | |||
| Safety device | Sensor failure alarm, heater wire breakage, pressure safety valve, door safety interlockprotection, electromagnetic lock protection,pressure lock protection, water level sensor， over temperature protection and leakage protection. | |||
