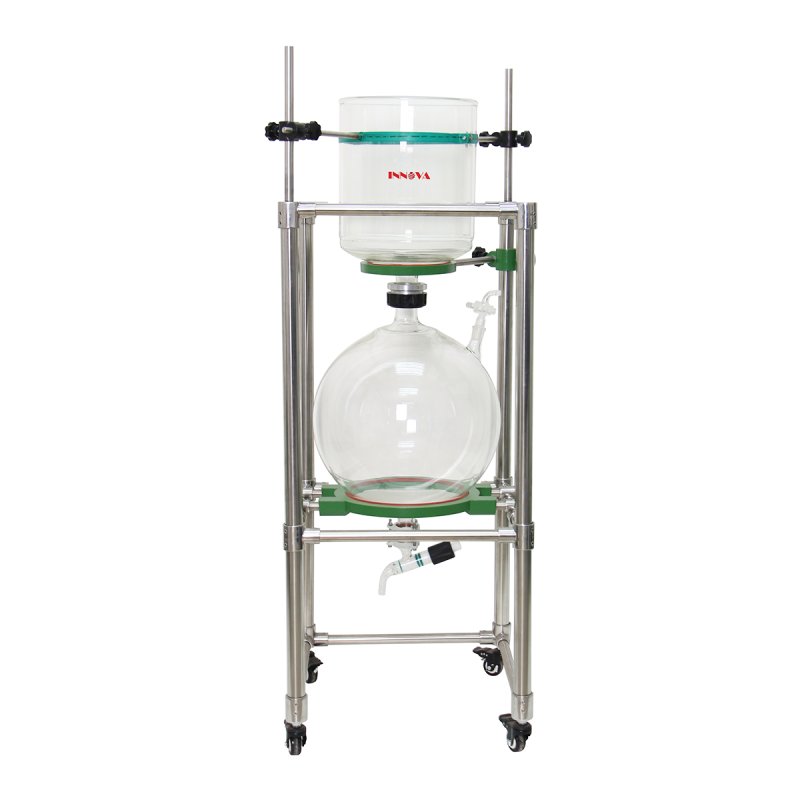

The vacuum filter is mainly used for liquid-solid filtration under vacuum conditions. It has been widely used in laboratories nowadays.
Though filtration can be done simply with gravity, more often vacuum filtration is employed because it is much faster. Several points are worth remembering. First, be sure to clamp your filter flask securely. These flasks are easily upended. Use the trap between your filter flask and the aspirator. Also, be sure to use thick-walled vacuum tubing and not the thin-walled tubing used for water lines.
Features
High-quality Borosilicate glass 3.3 with excellent physical and chemical properties for glass parts
Perfect sealing property and no dead corner design for charging solution or power more easily
One vacuum valve for connecting the vacuum pump for processing vacuum filtration
Cost-saving modular design and can be customized by clients' requirements
Safe in operation, easy to move around with lockable casters
| Model | FG-10L[SS] | FG-20L[SS] | FG-30L[SS] | FG-50L[SS] |
| Funnel inner diameter& height | 250*250 | 300*300 | 350*350 | 400*400 |
| Size of flange connection | 60 | 60 | 60 | 60 |
| Material of discharge valve | PTFE | |||
| Glass material | Borosilicate glass 3.3 | |||
| Frame material | Stainless Steel 304 | |||
| Funnel type | Detachable funnel | |||
