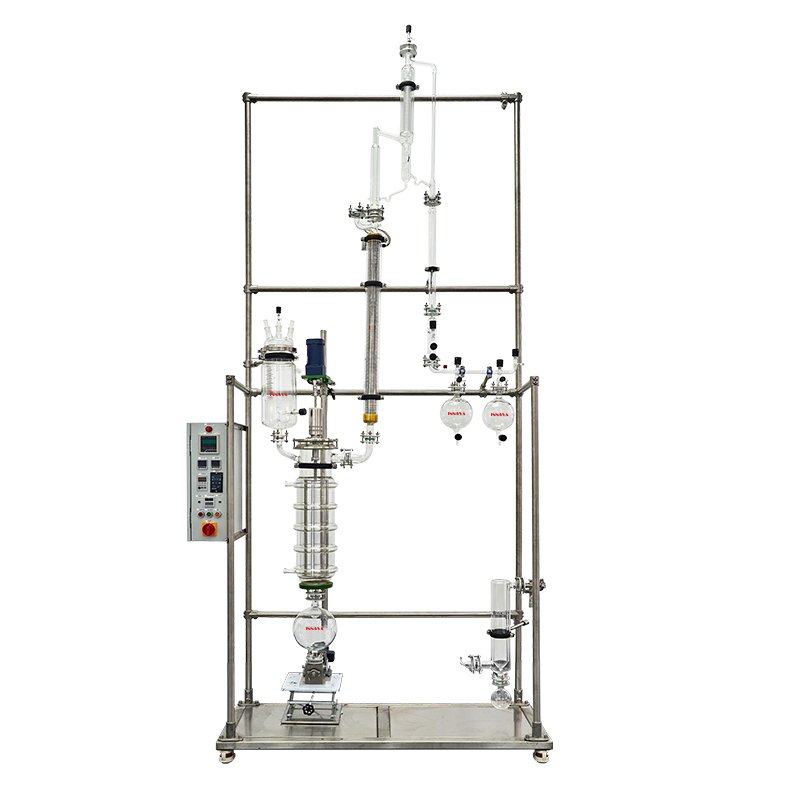

Thin film distillation column is a coupling device betweenthin-film evaporator and distillation column.In the
process of distillation, thin film distillation column cansolve the problem of thermal decomposition of heat-sen-sitive materials, which caused by too high temperature inthe tower bottom and too long residence time in thereboiler.It prevents deterioration reactions such as
decomposition, polymerization and oxidation of materialswhen heated, and effectively protects the characteristicsof product materials; At the same time, compared with thetraditional thin-film evaporator, the thin-film distillationcolumn increases the function of distillation, which canbetter improve the purity of products and reduce morepurification process steps.
·Low distillation temperature andhigh vacuum degree
·The vacuum environment with negative pressurecan avoid the decomposition and polymerizationof heat-sensitive materials, and reduce thedistillation temperature of materials which withhigh boiling point.The material will have shortresidence time and high heat transfer efficiency.
·High degree of separationand purity
·It can separate the materials which are noteasily separated by conventional distillation,and under the control of distillation columnand reflux, it can obtain high-purity product.
·The design of main control box ,easy operation
·The total control box is designed to control therotating speed , reflux ratio and vacuum displayof thin film distillation.
·Supply Customized Services
·Can supply customized service according tocustomer's material characteristics.
| Model | IFDC-60 | IFDC-80 | IFDC-100 | IFDC-150 | IFDC-200 | |
| Thin film part | Raw material tank | 0.5L Feeing Tank | 1L Feeing Tank | 1L Feeing Tank | 2L Feeing Tank | 3L Feeing Tank |
| Feeding | Valve control, Jacket insulation | |||||
| Evaporator | Scraper film-forming, good sealing, corrosion resistance and other characteristics. | |||||
| Distillation Column | Column length (m) | Setting according to process | ||||
| Tower heating mode | Multiple choice | |||||
| Condenser of distillation column head | Setting according to throughput | |||||
| Reflux ratio control | Yes | |||||
| Electric cabinet | Multi-functional integration of temperature display and vacuum degree. | |||||
| Supporting Equipment | Heating system | Heating and Circulating | ||||
| Cooling system | Cooling and Circulating | |||||
| Vacuum system | Vacuum system | |||||
