Thermo Mix series integrates precise and efficient heating & cooling and mixing function

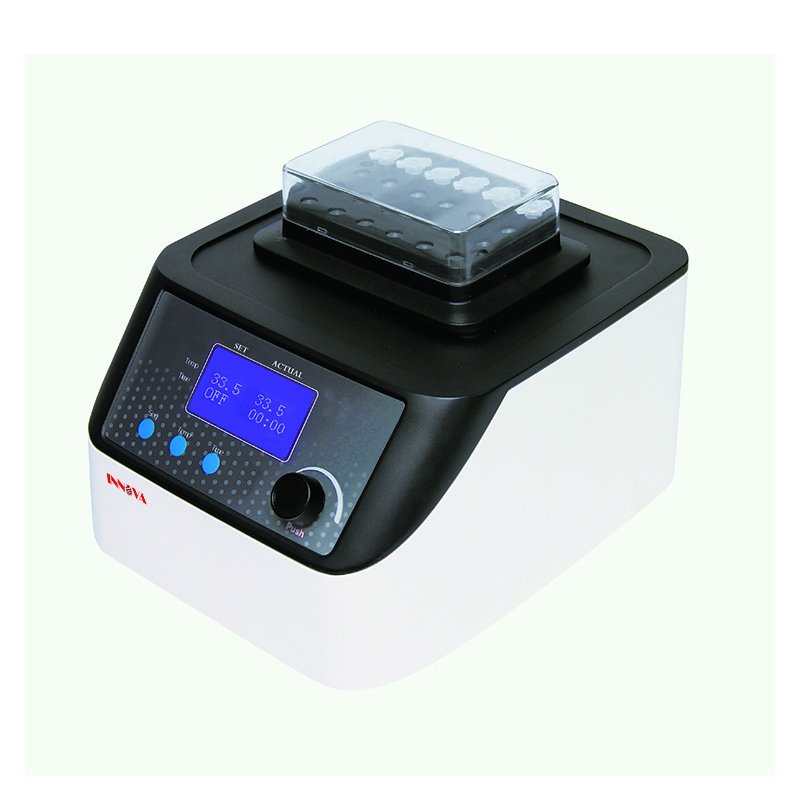

HCM100-Pro-Heating/Cooling/Mixing
HCM100-Pro combines the excellent mixing and accurate temperature control, to make your work efficiently and productively
• Fully programmable
• Precise temperature control for heating and cooling
• Real-time display of speed, temperature and time
• Excellent mixing (200-1500rpm)
• Quick interchange of blocks without tools and automatic block recognition
• Compatible with most popular tubes
• Block equipped with a lid for heat preservation
• Temperature self-calibration
| Specifications | IHCM100-Pro | IHM100-Pro |
| Functions | Heating,cooling&mixing | Heating&mixing |
| Temperature range [℃] | Below room temp 15- 100 | Room temp-100 |
| Temperature Setting range [℃] | 0-100 | 15-100 |
| Temperature control accuracy@20-45 [℃] | ±0.5 | ±0.5 |
| Temperature uniformity@20-45 [℃] | ±0.5 | ±0.5 |
| Power [W] | 200 | 200 |
| Time setting range | 0min~99h30min | 0min~99h30min |
| Max Heating speed | 5.5℃/min | 5.5℃/min |
| Max Cooling speed | 5℃/min(100℃-room temp) 0.5℃/min(below room temp) | - |
| Mixing speed [rpm] | 200-1500 | 200-1500 |
| Mixing orbit [mm] | 3 | 3 |
| Display | TFT | TFT |
| Program | 9 | 9 |
| Overheating protection [℃] | 150 | 150 |
| Voltage,Frequency | 110/220V，50/60HZ | 110/220V，50/60HZ |
| Dimension [mm] | 200x235X120 | 200x235X120 |
| Weight [kg] | 7.3 | 7.3 |
| Operating temperature [℃] | 10-40 | 10-40 |
| Operating humidity [% RH] | ＜80 | ＜80 |
