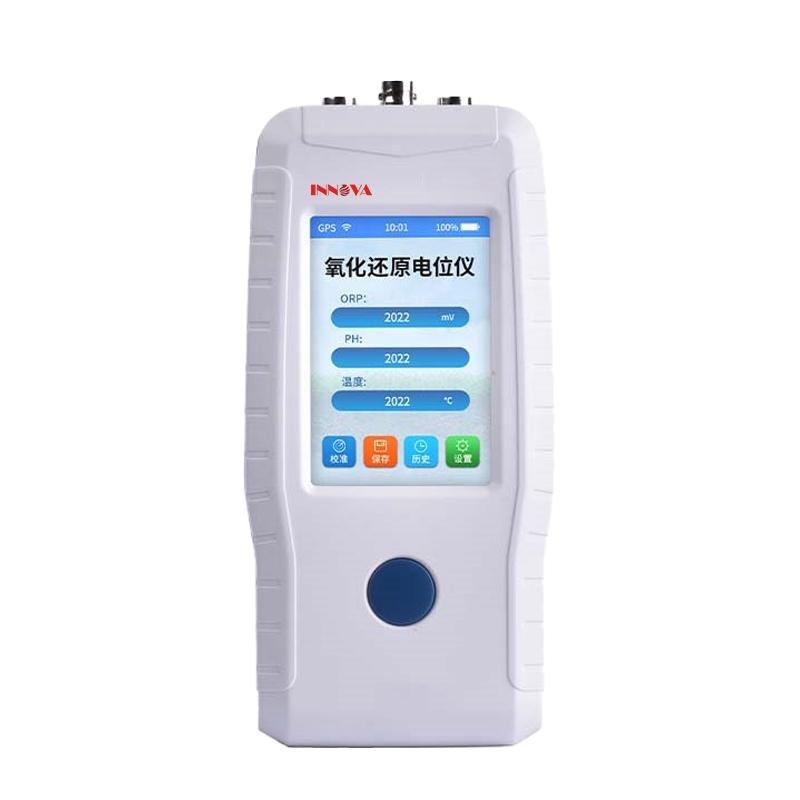

The INOSRP soil redox potential meter is primarily used for on-site in-situ testing of the redox potential of fresh or moist soil, as well as for measuring data such as the redox potential, pH, and temperature of water (medium).
1. ARM Cortex-M3 architecture processor, Android system.
2. Standard Type-C charging, allowing direct use of a smartphone charger to charge the device.
3. Continuous monitoring, with data collection intervals adjustable in minutes.
4. Supports calibration.
5. Features automatic temperature compensation and supports manual temperature compensation.
6. Includes dedicated ORP electrodes, reference electrodes, and stainless steel hollow probes, which can be directly inserted into soil.
7. Features a reading lock function (automatic reading), with measurement results being final results, eliminating the need for conversion or calculation.
8. Detection results can be uploaded.
9. Detection results can be exported to Excel spreadsheets for viewing on a computer.
10. Detection result storage capacity of 5 million entries, supporting data storage and retrieval.
11. Supports Wi-Fi, with detection results directly transmitted to the monitoring platform.
12. 3.5-inch color touchscreen for an enhanced user experience.
13. Features automatic backlight and automatic shutdown functions;
14. IP65 protection rating.
| Model | INOSRP | INOSRPPro | |
| Test items | Soil | Soil, water quality | |
| ORP | Range | -2000 mV to 2000 mV | |
| Resolution | 0.1 mV | ||
| Error range | ±10 mV | ||
| pH: | Range | 0 to 14 pH | |
| Resolution | 0.1 pH | ||
| Error range | 0.05 pH | ||
| Temperature | Range | 5 to 60°C | |
| Resolution | 0.1°C | ||
| Error range | ±1°C | ||
| External Power Supply | DC 5V/2A | ||
| Rated Power | 3W | ||
| Battery Capacity | 6000mAh | ||
