| Orbital Shaker | |||||||

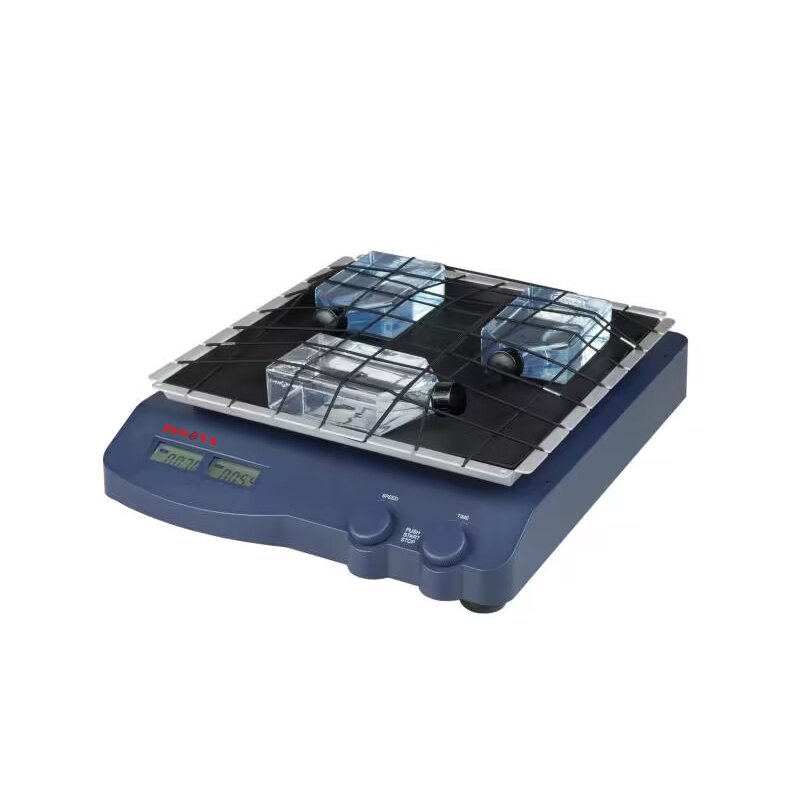

| SK-O330-M Fixed Plate LCD Digital Orbital Shaker SK-O180-S LED Digital Orbital Shaker |
• Double-screen display for time and speed respectively • Compact footprint • Provides smooth and uniform shaking • Two options： 9.8kg(O330-M)and speed range 70-400rpm, 3.1kg(O180-S)and speed range 40-200rpm • Continuous or timer operation mode • Maintenance- free brushless DC motor • Over speed detection and protection |
||||||
| Linear Shaker | |||||||
| SK-L330-Pro SK-L180-Pro LCD Digital Linear Shaker |
• Linear reciprocating shaking action • Two options:7.5kg(L330) and 2.5kg(L180) with platform • Independent LCD display for speed andtime • Speed range of 100-350 rpm • Maintenance- free brushless DC motor • Over speed detection and protection • Wide range of platforms for use with a variety of vessels |
||||||
| Rocking Shaker | |||||||
| SK-R330-Pro LCD Digital Rocking Shaker SK-R1807-S LED Digital Rocking Shaker |
• Rocking motion angle 9°(R330-Pro) and 7°(R1807-S) • Two options： 10kg (R330-Pro)and speed range 10-70rpm, 2kg (R1807-S) and speed range 10-80rpm • Double LCDs/LEDs for independent display of time and speed • Continuous or timer operation mode • Electronic time switching clock: 1min-19h59min • Wide range of platforms for use with a variety of vessels(R330-Pro) • Fixed work plate(R1807-S) • Simple appearance, save operating space |
||||||
| 3D Shaker | |||||||
| SK-D3309-Pro LCD Digital 3D Shaker |
• Three-dimensional rocking motion with an angle of 9° • Maximum load capacity of 5kg with platform • Speed range of 10-70 rpm • Independent LCD display of time and speed • Incubator compatible • Various platform accessories |
||||||
| Specifications | SK-O330-M | SK-O180-S | SK-L330-Pro | SK-L180-Pro | SK-R330-Pro | SK-R1807-S | SK-D3309-Pro |
| Orbital diameter | 10mm | 20mm | 10mm | 4mm | 9°（Tilt angle） | 7°（Tilt angle） | 9°（Tilt angle） |
| Max. load capacity (with platform) | 3kg | 2kg | 7.5kg | 2.5kg | 10kg | 2kg | 5kg |
| Motor type | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor | DC motor | DC motor | DC motor |
| Motor input power | 20W | 20W | 28W | 28W | 40W | 20W | 40W |
| Motor output power | 15W | 16W | 15W | 15W | 24W | 16W | 24W |
| Speed range | 70-400rpm | 40-200rpm | 100-350rpm | 100-350rpm | 10-70rpm | 10-80rpm | 10-70rpm |
| Speed display | LCD | LED | LCD | LCD | LCD | LED | LCD |
| Timer display | LCD | LED | LCD | LCD | LCD | LED | LCD |
| Time settings range | 1min-19h59min | 1min-19h59min | 1min-19h59min | 1min-19h59min | 1min-19h59min | 1min-19h59min | 1min-19h59min |
| Voltage,Frequency | 100-240V,50/60Hz | 100-240V,50/60Hz | 100-240V, 50/60Hz | 100-240V, 50/60Hz | 100-240V, 50/60Hz | 100-240V, 50/60Hz | 100-240V, 50/60Hz |
| Power | 25W | 20W | 30W | 30W | 50W | 20W | 50W |
| Weight | 9.8kg | 3.1kg | 13.5kg | 8.1kg | 9kg | 3.1kg | 9kg |
| Permissible ambient temperature and humidity | 5-40℃,80%RH | 5-40℃,80%RH | 5-40℃,80%RH | 5-40℃,80%RH | 5-40℃,80%RH | 5-40℃,80%RH | 5-40℃,80%RH |
| Dimension[W×D×H] | 420×370×100mm | 294×348×123mm | 370×420×100mm | 300X340X100mm | 360×410×200mm | 294×348×123mm | 360×430×106mm |
| Protection class | IP21 | IP21 | IP21 | IP21 | IP21 | IP21 | IP21 |
| Data connector | 335×335mm（Work plate Dimension [W x D]） | 268x268mm（Work plate Dimension [W x D]） | RS232 | RS232 |
