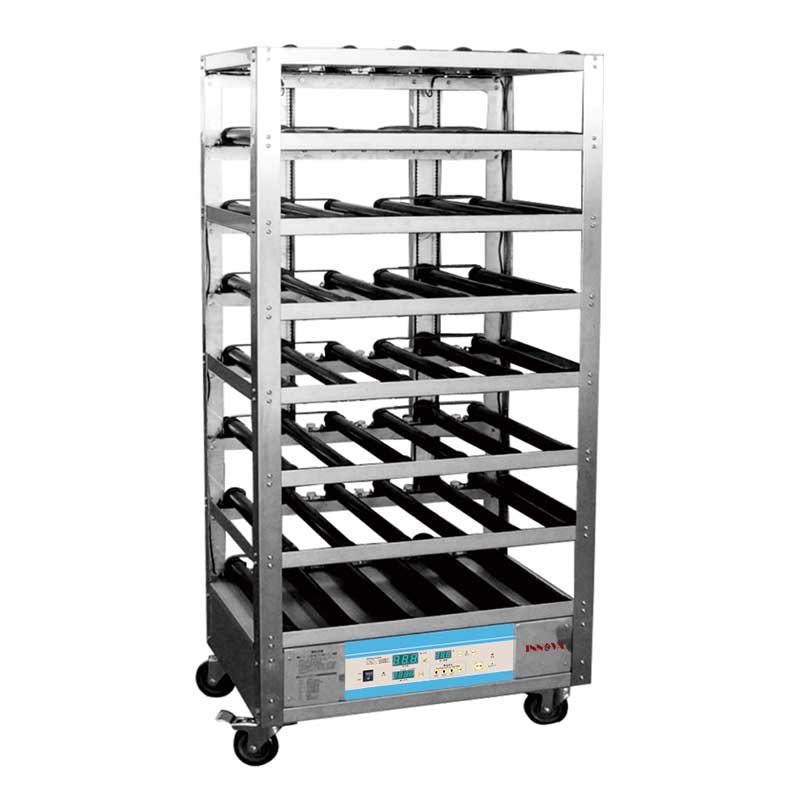

Innova CellRoller is designed for the production of monolayer and suspension cell cultures. All Innova CellRoller units have digital control systems and stable mechanical structure. A full range of speed settings and rotation modes come as standard features. These features provide consistent optimal media distribution, gas exchange and maximum surface area for cell growth. Yocell CellRoller systems are the ideal choice for both research and industrial needs.
1.LED speed display.
2.Heavy duty brushless DC motor.
3.Oil-free bearings ensure safe environment.
4.Special rubber roll guarantees stable bottle rotation speed.
Programmable rotation mode;
5.Fully functional within full cell culture temperature range.
6.Incubators are available for roller culture.
7.Customized order is available.
| Cell Culture Method | Monolayer and Suspension Cell Cultures | ||||
| Model | INO-RCAS-45 | INO-RCAS-30 | INO-RCAA-45 | INO-RCAA-30 | INO-RCAA-16 |
| Bottle Rotation Speed | Bottle Rotation Speed：1~990r/h (φ110mm Bottle) | ||||
| Rotation Mode | Clockwise/Clunter Clockwise Alternating Rotation(10° -180° ) | ||||
| Acceptable Bottle Size | Acceptable Bottle Size：φ108mm~φ121mm, L≤495mm Standard Bottle:φ110mm, L=490mm(3000ml) |
||||
| Bottle Diameter Setting | φ108mm~φ121mm (3L bottle) | ||||
| Bottle Positions per Deck | 5 | 5 | 5 | 5 | 4 |
| Bottle Positions | 45 | 30 | 45 | 30 | 16 |
| Material | Stainless Steel | Aluminum | |||
| Digital Control Display | Speed / Angle / Time | ||||
| Auto-run after Power Recovery | Yes | ||||
| Fuse | 4A250V | ||||
| Communication | RS 485 | ||||
| Optional Accessory | RollerMate Sofeware | ||||
| Outside Dimensions(WxDxH) | 770x594x1850mm | 770x594x1304mm | 797x598x1850mm | 797x598x1304mm | 672x598x936mm |
| Max.Load(L) | 135 | 90 | 135 | 90 | 48 |
| Environmental Temp. | 5℃~70℃ | ||||
| Relative Humidity | <90% | ||||
| Power | 70W | ||||
| Power Supply | AC220V±22V, 50Hz+1Hz | ||||
| Weight | 90kg | 75kg | 90kg | 75kg | 70kg |
