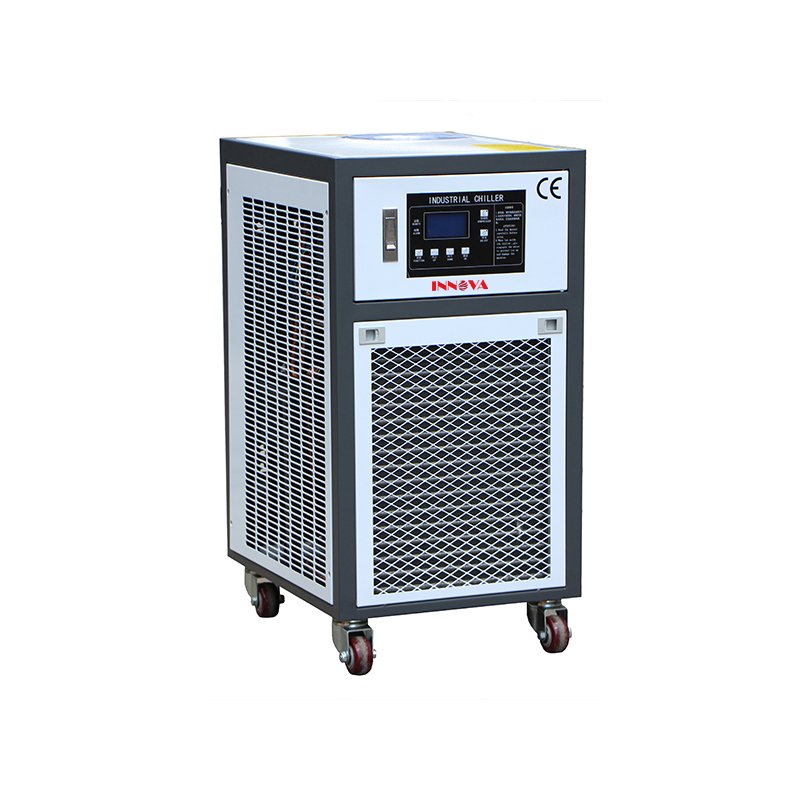

INNOVA Recirculating Chiller is usually used to provide constant low-temperature conditions for inspections, and chemical, biological, and physical experiments which need to be carried on under low temperatures, mainly used for medicine and health care, food process, the chemical industry, and teaching in colleges and research institutes.
● Imported compressor, built-in safety protection, low noise, energy-saving and durable.
● The electrical part adopts the international brand "Schneider" products to ensure the stable operation and long service life of the machine.
● Italian imported water pump, large flow, high efficiency, durable.
● Equipped with imported precision digital display temperature controller, accurate control of water temperature ±1 ℃, set temperature range of 5 ℃ ~ 50 ℃. With self-diagnosis function, automatic detection of unit faults, and Chinese (English) direct display of unit work and failure conditions, which is convenient for unit operation and management.
● All stainless steel thick water tank evaporators, built-in automatic water replenishment device, easy to clean and maintain.
● The condenser of the chiller is sleeve type, using a threaded copper tube, and the heat transfer effect is good.
● Refrigerants can be selected according to environmental standards, such as R404A, R134a, R407C, etc.
● Special power supplies can be customized.
| Mode | CA-0.6 | |
| Cooling capacity | 1290kcal/h | |
| 1.5kW | ||
| Total input power | 0.8kW | |
| Power supply | 2PH-220V/60HZ | |
| Refrigerant | Type | R410 |
| Control mode | Capillary | |
| Compressor | Type | Hermetic scroll type |
| Power | 0.95kW | |
| Condenser | Type | High efficient finned copper tube+ low noise outer rotor fan |
| Cooling Air volume | 1000m3/h | |
| Evaporator | Type | Water tank with coil |
| Chilled fluid flow | 0.49m3/h | |
| Tank volume | 20L | |
| Inlet/outlet pipe caliber | 1/2" | |
| Water pump | Power | 0.37kW |
| Pump head | 20M | |
| Safety protection | Compressor overheating, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing. | |
| Weight | 66kg | |
| Dimension | 530×440×780mm | |
