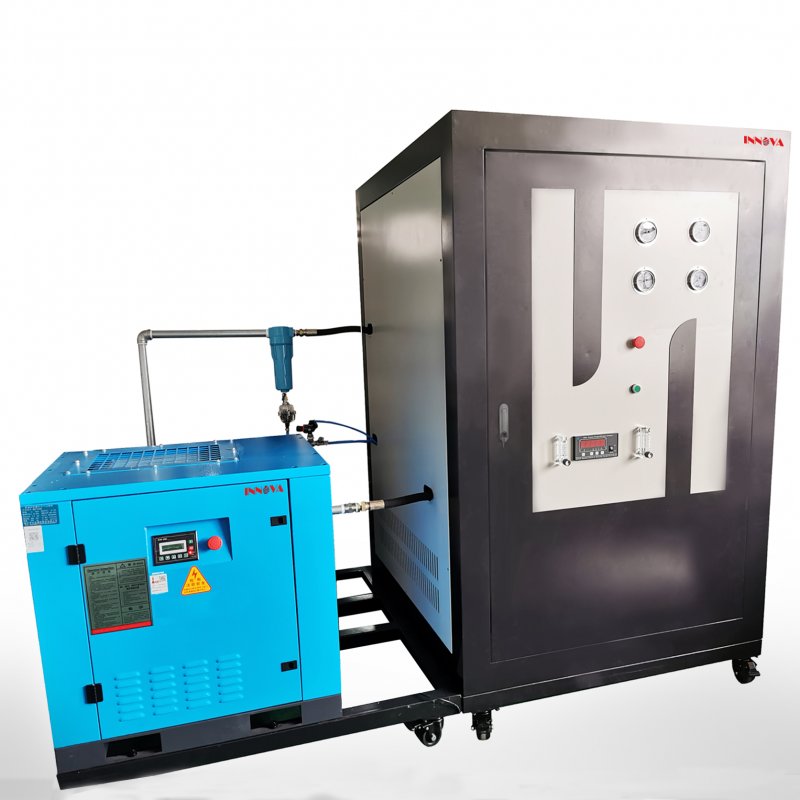

Pressure swing adsorption (PSA) nitrogen generator usually uses two adsorption towers in parallel, alternately pressurized adsorption and decompression regeneration to complete the separation of nitrogen and oxygen and obtain high purity nitrogen. Provide protective gas for metal heat treatment process, gas for chemical industry, nitrogen filling and purification of storage tanks and pipes, gas for rubber and plastic products production, fresh-keeping packaging for food industry, purification and covering gas for beverage industry, nitrogen charging and oxygen discharge for nitrogen-filled packaging and containers in pharmaceutical industry, protective gas for electronic components and semiconductor production process in electronics industry, etc.
● Including air compressor, air cold dryer and filtration system.
● Bottom load-bearing wheels and locks, which is stable and easy to move.
● Equipped with nitrogen purity meter and flow meter, which can display nitrogen purity and flow rate in real time for easy operation.
● Compressed air micro-oil absorber uses activated carbon to absorb residual oil in compressed air to prevent possible trace oil penetration and provide protection for the carbon molecular sieve.
● Air storage tank provides compressed air, reducing the load of the compressed air purification unit, reducing system pressure fluctuations, improving purification performance, reducing failure rates, and extending service life.
● The nitrogen buffer tank equalizes the purity and pressure of nitrogen output, provides high purity nitrogen needed for secondary homogenization process, and ensures stable nitrogen flow, purity and pressure.
| Model | IPSA-10LB | IPSA-30LB | IPSA-40LB | IPSA-70LB | IPSA-100LB | IPSA-100MB |
| Nitrogen purity | 95-99.999% (different purity can be customized according to users requirements) | |||||
| Production flow rate | 0-10L/min | 0-30L/min | 0-40L/min | 0-70L/min | 0-100L/min | 100m3/h |
| Oxygen content | ≤0.01% | ≤0.01% | ≤0.1% | ≤0.1% | ≤0.1% | ≤1% |
| Noise | 65dB | 65dB | 65dB | ≤65dB | ≤65dB | ≤65dB |
| Pressure | 0-0.6Mpa (Factory setting 0.5Mpa) |
0-0.6Mpa (Factory setting 0.5Mpa) |
0-0.6Mpa (Factory setting 0.5Mpa) |
0-0.5Mpa | 0-0.7Mpa | 0-0.6Mpa (Factory setting 0.5Mpa) |
| Power supply | 220V±10% 50Hz±5% |
220V±10% 50Hz±5% |
220V±10% 50Hz±5% |
380V±10% 50Hz±5% |
380V±10% 50Hz±5% |
220V±10% 50Hz±5% |
| Power | 2200W | 2800W | 3500W | 4500W | 4500W | 6000W |
