Product

Premium Stereomicroscope

The premium stereo microscope is a binocular microscope that observes objects from different angles and makes the eyes feel stereoscopic. The observation body does not need to be processed, it can be observed directly under the lens with lighting, as if it is upright, easy to operate and dissect.

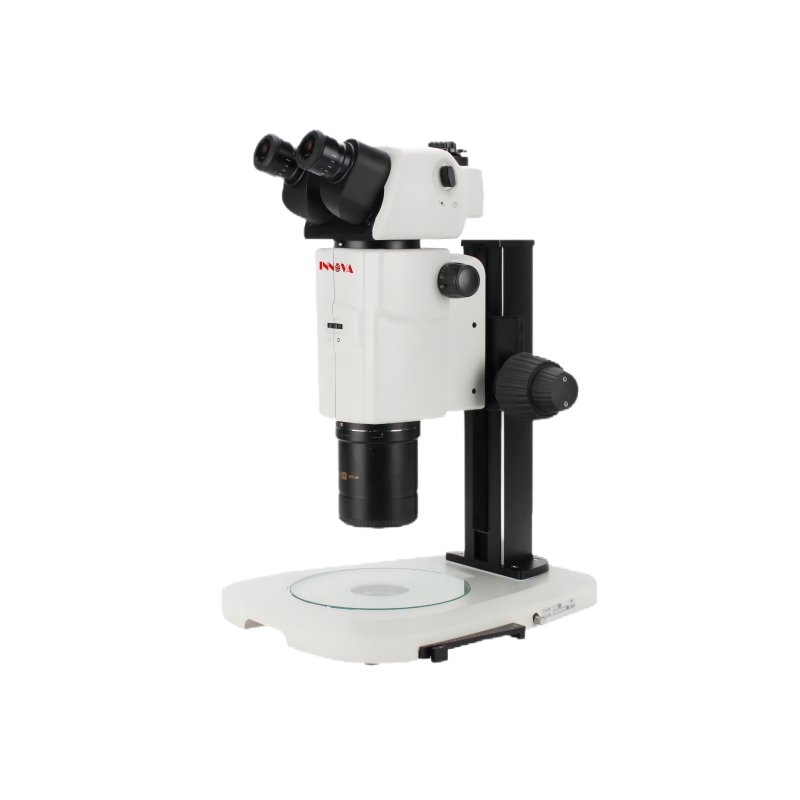

Stereomicroscope-SM818 Series

Clear imaging and reliable results:

18:1 zoom ratio with ultra-wide zoom range;

Complex achromatic optics with Plan Apo 1X objective lenses featuring NA. up to 0.15;

A built-in oblique illumination illuminator on the base as standard to increase the contrast of sample imaging;

A four-colour LED fluorescence illuminator with a six-station fluorescence carousel for bright, clear fluorescence imaging with a high signal-to-noise ratio;

Comfortable observation: The new trinocular head, with adjustable pupil distance and visual acuity, and a 47mm increase in baseline eye height, allows you to observe in the most natural and comfortable position. The standard switchable trinocular head can realize real-time video observation and microscopic image shooting and together with the special image analysis software, it can meet your various needs inscientific research.

Long working distance and large field of view: The 1x objective provides a working distance of 60mm, making it easy to place samples and move them around. NA of up to 0.15 gives you clarity for in-depthresearch. The large field of view allows you to see a wider and more comprehensive sample area.

Apochromatic bjective: Complex achromatic optics with a newlydeveloped and designed high numerical aperture 1x stereo objectivewith a numerical aperture (NA) of up to 0.15. Not only in bright fieldmode, but also in fluorescent mode, the brightness of the field of viewcan be guaranteed to be uniform at the lowest magnification. Theimage is clear and reliable at high magnification.

Stereomicroscope-SM800 Series

1.Unrivaled optical performance with infinity parallel optical system.

2.Providing even illumination and 6000 hours life expectancy with ultra-thin LED illumination for both incident and transmitted light.

3.With complete accessories, it can be used widely for scientific research industry, biological and medical field.

Stereomicroscope-SM608T Series

1.The leading role of the same level microscopes, wide range observation with zoom range 0.6X-5X, zoom ratio 1:8.3 and visual field up to ⌀76mm.

2.With high quality optical components, providing sharp and striking contrast image and no ghost image.

3.Ease the tiredness with ergonomic design.

4.With complete evepieces, auxiliary objectives and other accessories, it is an ideal instrument for industry assembling, inspection and teaching field.

Stereomicroscope-SM818 Series

Optical System			Parallel dual optical path zoom system
Eyepiece(F.O.V.mm)			WF10X (23)
Tube			Trinocular observation tube
Objective			1X flat field compound achromatic objective lens
Base			LED stereo illumination base (OCC built-in illuminator)
Zoom Ratio			1:18
Zoom Range			0.75X-13.5X
Working Distance			60mm
Motorizd Attachment			Zoom, focusing, light source controll and others--SM818M/SFL818

Travel range			60mm (with 1X objective can increase 99mm)-SM818 110mm--SM818M/SFL818

Expandability			Bright field Fluorescence(Motorized Epi illumination, including 4 filters)--SFL818 Oblique Illumination Simple Polarizing Darkfield

Stereomicroscope-SM800 Series

			SM806	SM808	SM810
Optical System	Parallel optical zoom system		●	●	●
Viewing Head	Binocular head, 20 inclined interpupilary distance 55-75mm		●	●	●
	Tilting binocular eyepiece tube, 0-35°incined, Interpupilary distance 55-75mm		○	○	○

Eyepiece	EW10X/⌀24		●	●	●
	WF15X/⌀16		○	○	○
	WF20X/⌀12		○	○	○
	WF30X		○	○	○
	10X Divisional Eyepiece		○	○	○
Objective	Zoom Objective	0.8X~5X	●
		0.8X~6.5X		●
		0.8X~8X			●
	Objective	WD:78mm 1X Plan achromatic objective	●	●	●
		WD:276mm 0.3X Achromatic objective	○	○	○
		WD:195mm 0.5X Achromatic objective	○	○	○
		WD:325mm 2X Plan achromatic objective	○	○	○
		WD:126mm 0.5X Plan apochromatic objective	○	○	○
Zoom Ratio	1:6		●
	1:8			●
	1:10				●
Working Distance	78mm		●	●	●
Focusing Range	160mm		●	●	●
lllumination	Transmission & reflection LED illumination, brightness adjustable		●	●	●
Optional	Coaxial illumination		○	○	○
	Epi-fluorescent attachment		○	○	○
	Dark field attachment		○	○	○
	Simple polarization set		○	○	○
	Iris diaphragm		○	○	○
	Beamsplitter (one port )		○	○	○
	Beamsplitter ( two ports)		○	○	○
	Photography & video attachment		○	○	○
	Moveable stage		○	○	○
	Temperature controlled stage		○	○	○
	Universal table stand/Table clamp stand		○	○	○
	Coaxial coarse & fine focusing unit		○	○	●
	Cold light illumination with dual light guide		○	○	○
	LCD Attachment		○	○	○
Note:●Standard, OOptional

Stereomicroscope-SM608T Series

		SM608T(A)	SM608T(B)
Viewing Tube	Trinocular viewing head,Inclined at 30°	●	●
Diopter Adjustment Eyepiece	Extra wide field eyepiece WF10X/⌀23	●	●
	WF15X/⌀16	○	○
	WF20X/⌀12	○	○
	WF30X/⌀8	○	○
Zoom Objective	0.6X-5X	●	●
Zoom Ratio	1:8.3	●	●
Working Distance	115mm	●	●
Interpupillary Distance	55-75mm	●	●

Auxiliary objective	0.5X WD:220mm	○	○
	0.7X WD:125mm	○	○
	2X WD:45mm	○	○
Stage Insert	Glass plate,Diameter 125mm	●
	Glass plate,Diameter 100mm		●
	Opal & black acrylic plate,Diameter 125mm	●
	Opal & black acrylic plate,Diameter 100mm		●
Focusing Range	105mm	●	●
lllumination	Incident lllumination 100V-240V/LED	●	●
	Transmitted Illumination 100V-240V/LED	●	●
Video Adapter	0.55X C Mount	●	●
	1X C Mount	○	○
Note:●Standard, OOptional
