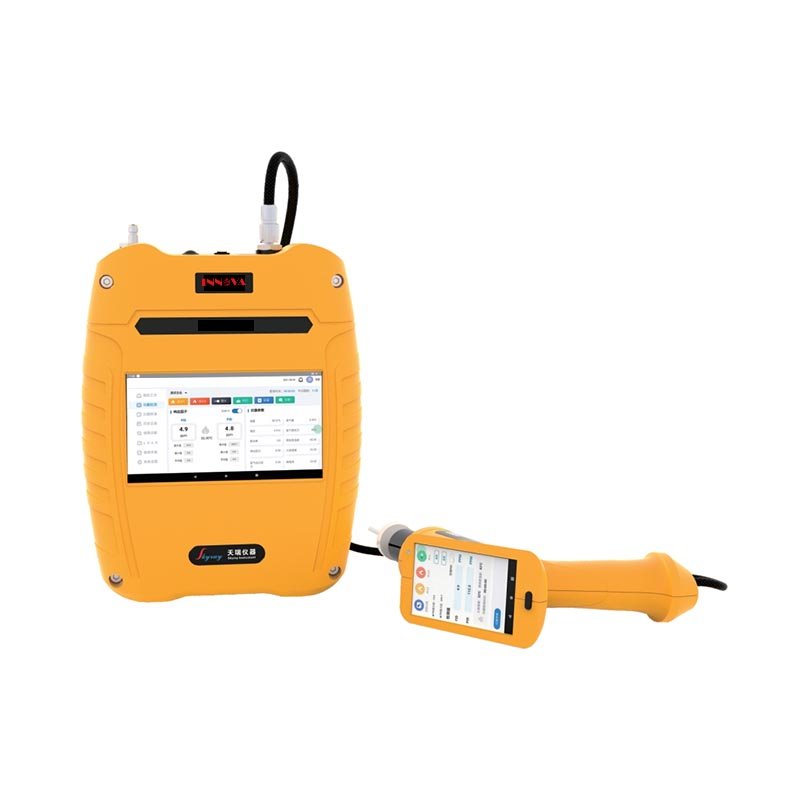

IVOC-5000 adopts hydrogen flame ionization detector (FID) and photoionization detector (PID) double detector, which can not only play the advantages of FID detector’s response to almost all VOC gases and good linear range, but also play the advantages of PID detector’s fast response speed and low detection limit.Used in petrochemical, chemical, pharmaceutical, resin, fertilizer and other industries, LDAR (leak detection and repair) detection, soil VOCs detection, factory workshop environment vOCs detection unorganized on-site emergency detection
Application Fields:
Third-party testing; Environmental law enforcement;voc testing of chemical enterprises; SoilvoCs detection;Oil gas recovery inspection at gas stations or bulkpetroleum terminals; vocs source investigation.
| FID detector | |
| Range range | 0-50,000 ppm |
| accuracy | ±5% or 3ppm of the reading, whichever is larger |
| Detection limit | 0.5 parts per million |
| Response time | T90 in 3.5 seconds |
| Return-to-zero time | Return to 10% of baseline in 4 seconds |
| Hydrogen cylinder | Capacity 100ml, maximum working pressure 20MPa |
| Hydrogen service time | Full gas use for more than 12 hours |
| Battery operating time | 10 h |
| igniter | Double igniter |
| Parameter display | Flame temperature, electricity, pump power, hydrogen pressure |
| PID detector | |
| range | 0-4000ppm |
| Detection limit | 0.1 parts per million |
| T90 Response time | <3s |
| Detection accuracy | Plus or minus 5% |
| other | |
| Main engine weight | 3.6 kg |
| Explosion-proof mark | Ex d ic mb llCT4 Gc |
| Main engine size | 27.3×20.5×6.8 (cm) Length * width * height |
