POCT (Point-of-Care Testing) is an immunoassay device that performs immediate testing at the sampling site, with portable instruments and reagents that produce rapid results without the need for complex laboratory processing.

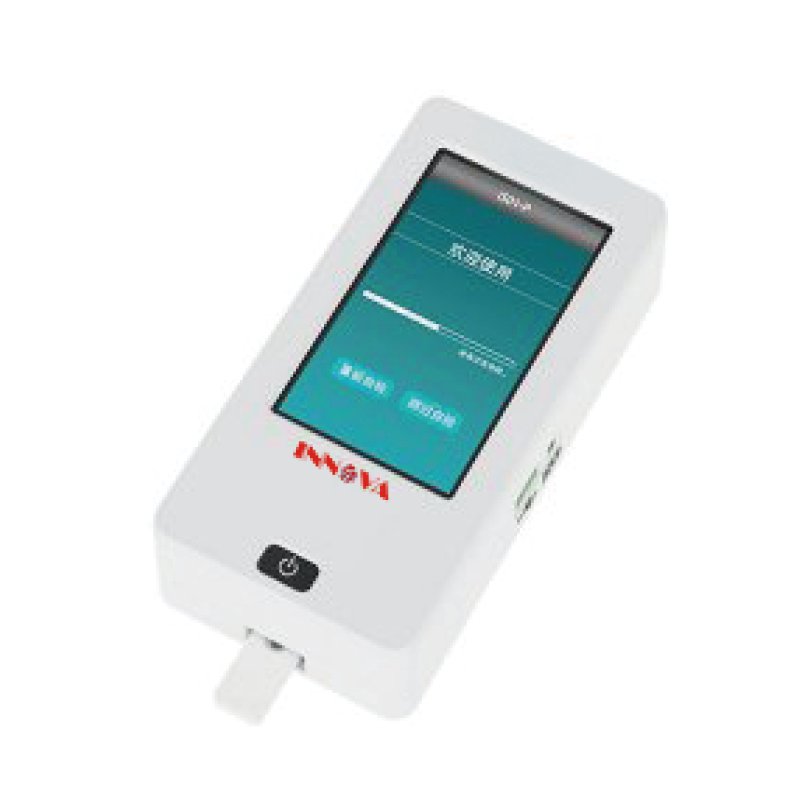

IPFI is an immune analyzers based on the principle of time-resolved fluorescence detection, suitable for detecting samples from immunochromatography test strips. The instrument is easy to operate, portable, and has stable performance. It is widely used in clinical medical testing, food safety testing, animal disease testing, and other areas.
● Handheld smart device, light and portable, easy to use at any time
● Long standby time, battery powered
● Time-resolved fluorescence technology, more accurate detection results
● The instrument uses SiPMT detector, which has higher detection sensitivity
● High-resolution 5-inch touch display
● Built-in bar-code scanner, supports scanning of both one-dimensional and two-dimensional codes
● Open platform, suitable for different testing items
IBFI is an immune analyzers based on the principle of time-resolved fluorescence detection, suitable for detecting samples from immunochromatography test strips. The instrument is easy to operate， portable, and has stable performance. It is widely used in clinical medical testing, food safety testing, animal disease testing, and other areas.
● Compact design, occupies a small tabletop area
● Time-resolved fluorescence technology, more accurate detection results
● Open platform, suitable for different testing items
● 7-inch color touch screen, intuitive and easy to operate
● Built-in thermal printer, which can print the test results immediately
● Built-in bar-code scanner, supports scanning of both one-dimensional and two-dimensional codes
● The instrument uses SiPMT detector, which has higher detection sensitivity
● Suitable for emergency rapid detection, on-site detection and other application scenarios
T/C ratio has a linear range up to 5 orders of magnitude
|
Model No |
IPFI |
IBFI |
|
Product type |
Handheld |
Desktop |
|
Principle |
Time-resolved fluorescence immunoassay |
Time-resolved fluorescence immunoassay |
|
Detection channel |
Single channel |
Single channel |
|
Detector |
SiPMT |
SiPMT |
|
Light source |
LED |
LED |
|
Excitation wavelength |
365nm（customizable） |
365nm（customizable） |
|
Emission wavelength |
610nm（customizable） |
610nm（customizable） |
|
Dynamic Range |
5 orders of magnitude |
5 orders of magnitude |
|
Stability |
CV <1% |
CV <1% |
|
Test speed |
Single detection time＜10s
|
Single detection time＜10s
|
|
Reagent Card Barcode |
1D/2D (customizable) |
1D/2D (customizable) |
|
Display |
5-inch touch screen |
7-inch touch screen |
|
Interface language |
Chinese and English, other languages can be expanded |
Chinese and English, other languages can be expanded |
|
Data transmission |
USB |
USB |
|
Barcode scanner |
Supported |
Supported |
|
Printer |
N/A |
Supported |
|
Power |
Lithium battery，2500mAh |
AC100-220V，50/60Hz |
|
Operating mode |
Stand-alone |
Stand-alone |
|
Dimension |
180*92*40mm，0.5Kg |
280*270*170mm,2Kg |
|
Operation Environment |
10-35℃，＜80% |
10-35℃，＜80% |
