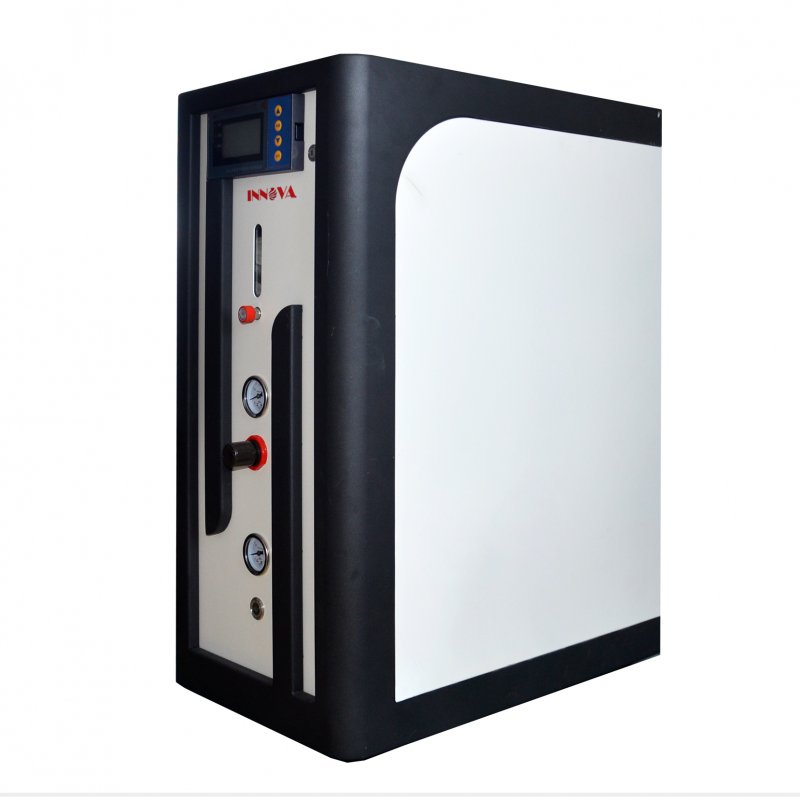

Nitrogen generator with simple structure, small size, no switching valve, and fast gas production (≤3 minutes). Equipped with imported membrane to produce high purity nitrogen. Compressed air enters the polymer membrane filter, and under a certain pressure, different gases with different properties have different permeation rates in the membrane to separate nitrogen.
● Imported membrane separation, high purity, long service life, no consumable replacement.
● Built-in water removal separator ensures long service life of the adsorbent.
●Three-stage independent filtration system, particles <0.01um&0.003mg/m3, ensuring continuity of gas production.
● Nitrogen purity display with high accuracy.
● Built-in compressor, with suspended sound insulation system, low noise.
● Dual pressure adjustable system, easy and convenient to operate.
● Display real-time nitrogen purity; real-time nitrogen flow rate; real-time nitrogen pressure and gas source pressure.
● Various flow rates can be customized, with purity levels of 99%, 99.9%, 99.99%, 99.999%, 99.9999%
| Model | ING-1L | ING-2L | ING-5L | ING-10L | ING-1LG | ING-2LG | ING-5LG | ING-10LG |
| Production flow rate | 1L/min | 2L/min | 5L/min | 10L/min | 1L/min | 2L/min | 5L/min | 10L/min |
| Purity | 99% | 99.90% | ||||||
| Pressure | 0-0.6mpa | 0-0.6mpa | ||||||
| Filter system | Three-stage | Three-stage | ||||||
| Total power | 450W | 500W | 1000W | 1600W | 450W | 500W | 1000W | 1600W |
| Power supply | 220V 50Hz | 220V 50Hz | ||||||
| Dimension | 500×330×710 | 500×330×710 | ||||||
| Model | ING-20L | ING-30L | ING-60L | ING-20LG | ING-30LG | ING-60LG |
| Production flow rate | 20L/min | 30L/min | 60L/min | 20L/min | 30L/min | 60L/min |
| Purity | 99% | 99.90% | ||||
| Pressure | 0-0.6mpa | 0-0.6mpa | ||||
| Filter system | Three-stage | Three-stage | ||||
| Total power | 2600W | 3200W | 3800W | 2600W | 3200W | 3800W |
| Power supply | 380V | 380V | ||||
| Dimension | 400×300×1300mm | 400×300×1300mm | ||||
