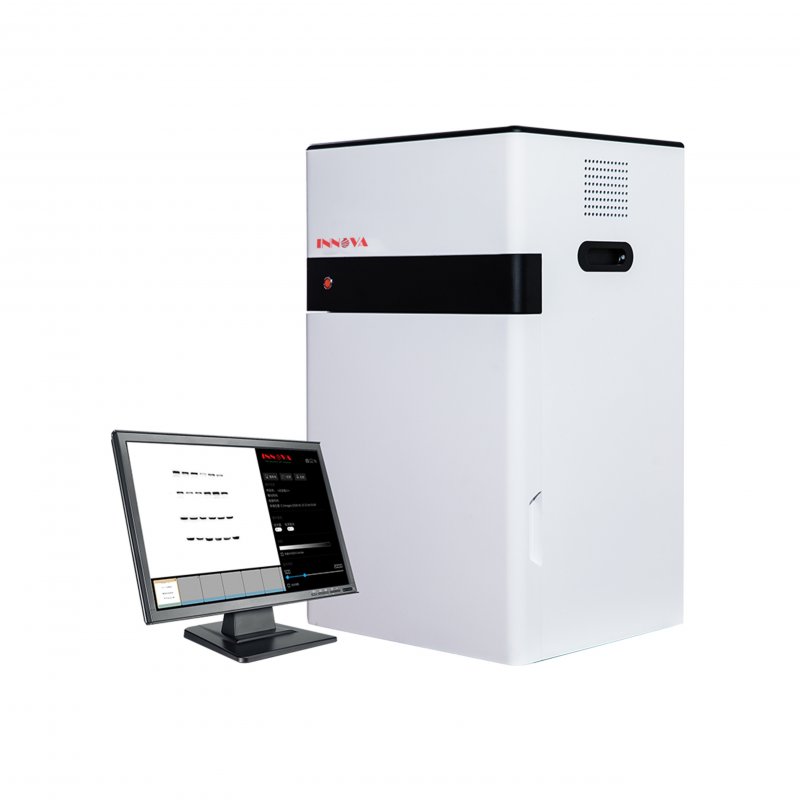

The Classic INNOVA Multifunctional Imagers provide high performance with ease of use for visible light (RGB) and far red/near infrared (FR/NIR) fluorescence and chemiluminescence detection and all general gel documentation applications. All INNOVA Imagers adopt sensitive cameras in the world-first class, which allow the imaging systems to capture utter weak signals of the bands.
· Super sensitive Cooled digital Camera.
· Wide range of applications.
· Fixed 4 layer chemiluminescence sample trays.
· Intuitive Software for unlimited users.
· Standard for Chemiluminescence,Gel doc & Protein Gels.
· Module design.
· Optional Fluorescent Application.
| Model | MI 910 | MI 600 | |
| Application | Chemilluminescence Imaging, ECL Western Blotting | ✅ | ✅ |
| Fluorescence Imaging, Fluorescent Western Blotting | ✅ | ✅ | |
| Gel Doc Application | ✅ | ✅ | |
| Protein gel；SDS Pages | ✅ | ✅ | |
| Features | High Sensitivity， High resolution | High Sensitivity for long time exposure | |
| High performance for long exposure time up to 30 min | High performance for the exposure time up to an hour | ||
| Fixed 4 layers sample trays for different sizes of chemiluminescence samples | |||
| UV Transmission as standard, Blue LED Transmission as optional | |||
| Standar Parameters |
Sensor | Back illuminated CMOS Sensor | Front illuminated CCD Sensor |
| Resolution | 9.1 Megapixels | 6 Megapixels | |
| Pixel Size | 3.76 × 3.76 μm | 4.54 x 4.54 μm | |
| Temperature | -30 ℃ regulated | ||
| Dynamic Range | 4.8OD | ||
| Pixel density | 16bit(65536 Grey scales) | ||
| Lens | F0.95 as standard (optional F0.8) Auto Focus | ||
| Chemilluminescence Sample tray | Fixed 4 layers sample trays for different sizes of western blotting membranes | ||
| DNA/RNA detection | Fixed 1 layer UV transmission as standard | ||
| Protein gel；SDS Pages | Fixed white LED Transmission for Protein Gels | ||
| Software | Capture and Analysis Software for unlimited number of users | ||
