MFC is a device that uses microorganisms to convert chemical energy in organic matter directly into electrical energy.

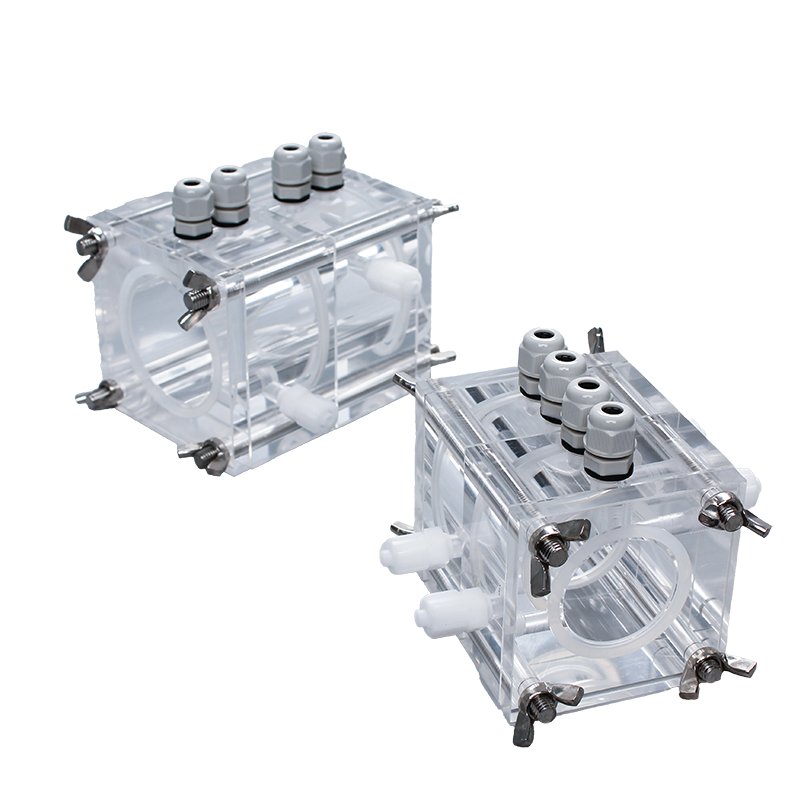

MFC(microbial fuel cell)：
Screws are made of high quality 304 corrosion resistant.
Each chamber is processed by diamond cutter to ensure smoothness.
Gasket and chamber precision with the main card gasket, gasket is not easy to loose.
Free silicone plugs for each single chamber.
Side holes are available for customisation.
Side can be equipped with optical quartz glass
Imported acrylic material, processed by imported diamond cutter, high transmittance.
Not high temperature and high pressure sterilization.
The use of imported diamond cutter processing.
Optical glass models placed under the glass inlaid with quartz glass gasket to reduce the pressure of plexiglass and quartz glass to prevent the glass from bursting.
MFC Microbial reactor：
The reactors are divided into clamp fixed type and anchor ear fixed type, with pagoda head and anaerobic head. The reactor fixed by the anchor ear is relatively better sealed. Bottle body and interface materials are selected high-quality borosilicate material production quality is stable and reliable. 30ml 50ml flange mouth inner diameter of 23mm, the rest of the capacity of the flange mouth inner diameter of 33mm. Supporting non-standard customisation.
| Product name | Order Code | Specification/Volume | Length*Width*Height | Hole d(mm) | |||
| Standard MFC (two-compartment ) | 6.1.1 | 7ml | 50*50*22 | 20 | |||
| 6.1.2 | 14ml | 50*50*22 | 30 | ||||
| 6.1.3 | 28ml | 60*60*24 | 39 | ||||
| 6.1.4 | 50ml | 80*80*40 | 40 | ||||
| 6.1.5 | 118ml | 90*90*50 | 56 | ||||
| Four-compartment microbial fuel cell box | 6.2.1 | 28ml(Two compartment ) | 50*50*22 | 28 | |||
| MFC quick connection reactor | 6.3.1 | 50ml | 80*80*40 | 40 | |||
| 6.3.4 | 118ml | 90*90*30 | 56 | ||||
| MFC Microbial reactor | Clamp fixed Type | Order Code | Type | Port | |||
| 6.5 | Type I | No | |||||
| 6.7 | Type Ⅱ | pagoda head | |||||
| 6.9 | Type Ⅲ | pagoda head | |||||
| 6.8 | Type Ⅱ | anaerobic head | |||||
| 6.10 | Type Ⅲ | anaerobic head | |||||
| Anchor ear fixed Type | 6.6 | Type I | No | ||||
| 6.13.1 | Type Ⅱ | pagoda head | |||||
| 6.14.1 | Type Ⅲ | pagoda head | |||||
| 6.12.1 | Type Ⅱ | anaerobic head | |||||
| 6.11.1 | Type Ⅲ | anaerobic head | |||||
