Metallurgical Microscope

Feature:

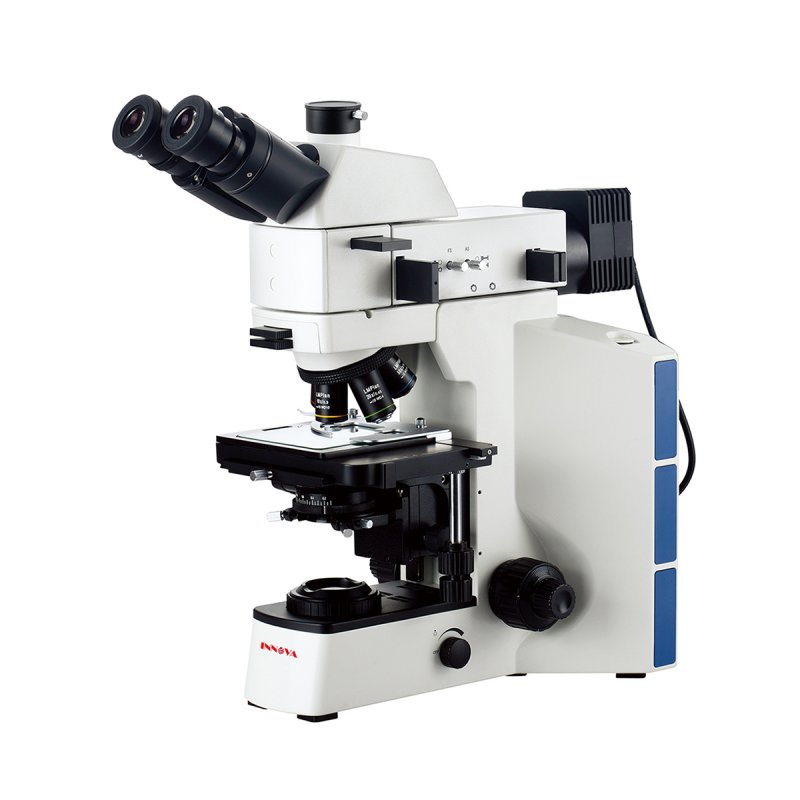

Metallurgical Microscope-INO40M

With the most suitable viewing degree, a 30 °inclined head holds everyone in the best working state, with less tension and fatigue. You can adjust the interpupillary distance to optimum according to the scale on the viewing head.

Reflected illuminator with field/aperture diaphragm and oblique light device, as well as slots for polarizing kit and filters, adopts Koehler illumination system.

Compared with other LEDs, a single 5W LED with warm white light (3000-3300K) reduces the fatigue on the observer's vision at the extreme.

With pull-rod devices for adjusting the centers of the field and aperture diaphragm, stray light can be eliminated by expanding or shrinking the illumination zone.

Simple polarizing observation is available with a pluggable polarizer kit. More ideal images are here with different filters.

The highest sample that can be tested is 28mm with transmitted & reflected frames while a 78mm high sample is available with the reflected frame, as the stage can be dropped 50mm by loosening the screw in the stage holder.

M4 wrench for socket head screws placed in the frame, making the best of the available space and improving your working efficiency.

The up-limit device is helpful to avoid the damage caused by the impact between a sample and the objective lens.

Using the outstanding condenser system, much more transmitted light can be through with a bigger numerical aperture and stronger intensity.

Metallurgical Microscope-INO41MI

INO41M with new designed infinity optical system, can be applied for industry research such as forging, smelting, heat treatment, and inspection of raw material.

Low position operating knobs 360-degree rotatable viewing head, according to ergonomic design, reduce the fatigue from long-time use.

With environmental and economic ECO infrared sensing systems, the microscope is preset to be shut down when there is no operator within a limited time.

With a built-in sensor in the nosepiece, the objective magnification on using is visible from the front plate.

Metallurgical Microscope-INO9370MI

Professional metallurgical objective and plan eyepiece provides a clear image, high resolution, and comfortable observation.

Superior image and reliable mechanical structure.

The corresponding photo or video accessories can collect and preserve the image, with computers and specialized metallographic analysis software can analyze the metallographic image.

Easy to operate, Have all kinds of accessories. Widely used in teaching and research metallographic analysis, semiconductor silicon wafer inspection, geology mineral analysis, precision engineering, and surveying fields.

Metallurgical Microscope-INO9590M

The flat-field anti-chromatic optical system and drop-shot Cura lighting system are adopted, and the anti-reflection structure is designed in the drop lighting system to effectively prevent reflected light interference with imaging light, thus making the imaging clearer and better field of vision lining.

Provide a stable and reliable operating mechanism for clearer imaging and easier operation.

The microscope body adopts a new ergonomic design and symmetrical structure to realize the expansion of building blocks.

The workbench, light strength, and coarse fine-tuning of the low operation improve the comfort of use.

It is widely used in various semiconductor silicon wafer detection, material science research, geological and mineral analysis, and precision engineering.
