Magnetic stirrers are used for low viscosity liquids or solid mixing, chemical synthesis, physical and chemical analysis, bio-pharmaceuticals etc.
| Models | Characteristics | |||||||

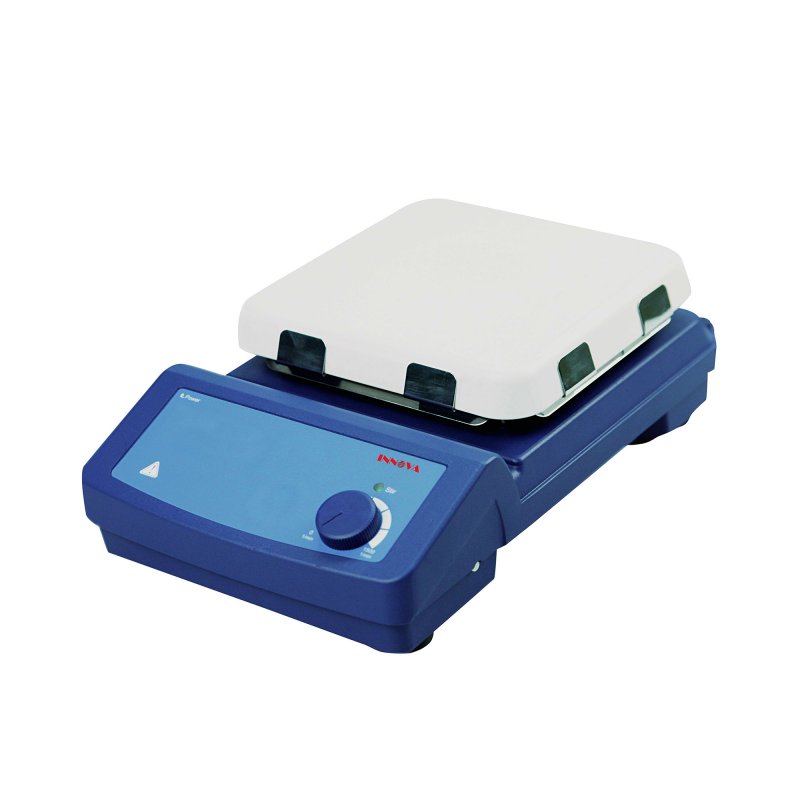

| MS-S Magnetic Stirrer MS7-S 7"Square Magnetic Stirrer |
• Speed range of 0-1500rpm • Maximum stirring quantity of H2O up to 10L • Ceramic work plate provides excellent corrosion resistance |
|||||||
| MS6-Pro LCD Digital Magnetic Stirrer |
• High resolution LCD displays actual stirring speed • Brushless DC motor is maintenance free • Aluminum covered ceramic coating，corrosion resistant and easy to clean • Digital speed control up to 1500rpm • Maximum stirring quantity of H2O at 5L |
|||||||
| MS-PA LED Digital Magnetic Stirrer MS-PB |
• Digital speed control within the range of 0-1500rpm • Maximum stirring quantity of H2O at 3L • LED display shows stirring speed (MS -PA) |
|||||||
| MS-T-S15 15-Position magnetic stirrer |
• LCD display for precise speed and time control. • Maintenance free DC brushless motor for long time and high stirring power. • Aluminum laser engraving work plate surface, anti-abrasive, skid and corrosion proof. • Strong magnets ensure fast and intense stirring. • 15 stirring positions are divided into 3 independent groups and each group can be controlled respectively at different speeds and with different timer settings. • Buzzer function: When the time countdown ends, the buzzer will remind the user by sound. |
|||||||
| MS-M-S10 10-Position Magnetic Stirrer |
• Efficient, simple and safe stirring • High performance and space-saving design to maximize the use of benchtop space and saving time by stirring multiple solutions • Maintenance-free brushless DC motor • Speed range 0-1100rpm • Stainless steel work plate covered with silicone cushion, provides excellent performance of skid resistance |
|||||||
| FlatSpin Ultra-flat Compact Magnetic Stirrer With excellent stirring functionality, the compact shape of FlatSpin takes less bench space and makes storage easier. |
• Speed range 15 to 1500rmp • Automatic reverse rotation for excellent mixing • PET top work plate provides excellent chemical resistance • Motorless technology provides ultra silent and vibration-free operation • Perfect magnetic stirrer for use during titration (bottle-top burette) in analytical chemistry |
|||||||
| EcoStir Economical Magnetic Stirrer EcoStir is a magnetic stirrer customized for liquid mixing, suitable for chemical analysis, biology reagent mixing, regular laboratory experiments and liquid handling. |
• Maintenance free brushless DC motor • Rare earth magnets give powerful stirring • Stepless speed regulation 300-2000rpm • Ultra silence and vibration-free design • PET top provides excellent chemical resistance • Shaft can be fitted with a pH sensor or other sensors for different purposes |
|||||||
| EcoStir Square Plate Magnetic Stirrer Stirrer with electrode holder has a reliable design and a powerful stirring ability. It is a basic and ideal tool for electrochemistry measurements or water & environment monitoring; drug or food analysis; liquid culture mixing, etc. |
• Compact design with small footprint, 12V voltage available for mobile labs. • Square work plate supports 1.5L stirring capacity. • Holder with clamp for pH electrode or other sensor. • Default PET top provides excellent chemical resistance. • Extra colorful stickers satisfy DIY design by yourself. • Maintenance free brushless DC moto. • An economical choice of a reliable & durable magnetic stirrer with an electrode holder for stable & powerful stirring ability. |
|||||||
| Specifications | MS7-S | MS-S | MS6-Pro | MS-PA | MS-PB | MS-T-S15 | MS-M-S10 | FlatSpin | EcoStir Square | EcoStir |
| Work plate Dimension [W x D] | 184x184mm (7 inch) | Ø 135mm(5 inch) | 140x140mm | Ø 135mm(5 inch) | Ø 135mm(5 inch) | 460x304mm | 180×450mm | Ø90mm | 120x115mm | Ø120mm |
| Work plate material | Glass ceramic | Stainless steel cover with ceramic | Aluminum cover with ceramic coating | Nylon+GF | Nylon+GF | Aluminum | Stainless steel with silicone coating | PET | PET | PET |
| Motor type | Shaded pole motor | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor | DC brushless | Brushless DC motor | Brushless DC Motor | Brushless DC motor | |
| Stirring positions | 1 | 1 | 1 | 1 | 1 | 15 | 10 | 1 | 1 | 1 |
| Max. stirring quantity[H2O] | 10L | 20L | 5L | 3L | 3L | 0.4Lx15 | 0.4Lx10 | 0.8L | 1.5L | 1.5L |
| Max.magnetic bar[length] | 80mm | 80mm | 40mm | 50mm | 50mm | 40mm | 40mm | 40mm | 40mm | 40mm |
| Speed range | 0-1500rpm | 0-1500rpm | 200-1500rpm | 200-1500rpm | 0-1500rpm | 0-1500rpm | 0-1100rpm | 15-1500rpm | 300-2000rpm | 300-2000rpm |
| Speed display | Scale | Scale | LCD | LED | scale | LCD | Scale | Button Setting | Knob setting | Knob setting |
| Protection class | IP21 | IP21 | IP21 | IP42 | IP42 | IP21 | IP20 | IP21 | IP21 | IP21 |
| Motor input Power | 15W | 18W | 2.4W | 5W | 5W | 12W | ||||
| Motor output Power | 1.5W | 10W | 1.8W | 3W | 3W | 4W | 3W | 1.2W | 1.2W | |
| Power | 30W | 30W | 10W | 15W | 10W | 40w | 20W | 5W | 7.2W | 7.2W |
| Voltage,Frequency | 100-120/200-240V，50/60Hz | 100-240V，50/60Hz | 100-240V，50/60Hz | 100-120/200-240V，50/60Hz | 100-120/200-240V，50/60Hz | 110V/220V50Hz/60Hz | 100-120/200-240V，50/60Hz | 100-120/200-240V，50/60Hz | DC 12V, 100-240V,50/60Hz | 100-120/200-240V，50/60Hz |
| Dimension[WxDxH] | 215x360x112mm | 160x280x85mm | 320x180x108mm | 150x260x80mm | 150x260x80mm | 615x307x90mm | 622x205x65mm | 175x120x15mm | 150x144x54mm | 150x145x50mm |
| Weight | 3.8kg | 2.8kg | 2.2kg | 1.8kg | 1.8kg | 9.2kg | 3.2kg | 0.3kg | 0.3Kg | 0.3kg |
| Permissible ambient temperature and humidity | 5-40℃, 80%RH | 5-40℃, 80%RH | 5-40℃, 80%RH | 10-40℃,80%RH | 5-40℃,80%RH | 5-40℃，80%RH | 5-40℃, 80%RH | 5-40℃,80%RH | 5-40℃, 80%RH | 5-40℃, 80%RH |
| Speed control accuracy | ±10rpm | |||||||||
| Timer function | 0min-99h59min |
