Magnetic hotplate stirrers are used for low viscosity liquids or solid mixing, chemical synthesis, physical and chemical analysis, bio-pharmaceuticals etc. Innova provides different series, heating range covers from 120°C-550°C
| Models | Characteristics | |||||||
|
MS10-H500-Pro LCD Digital Magnetic Hotplate Stirrer With 10 Inch Ceramic Plate |
• Large volume: Up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring | |||||||
| • Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer | ||||||||
| • LCD display for precise monitoring of speed and temperature. External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at±0.2°C | ||||||||
| • Digital speed control of 100 ~ 1500rpm | ||||||||
| • Max. heating plate temperature 500℃ | ||||||||
| • The “HOT”warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off | ||||||||
| • Data connector: The SD card records the instrument's running data in real time. | ||||||||
| • Timing function: the running time of the instrument can be set. | ||||||||
| MS7-H550-Pro LCD Digital Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate MS7-H550-S |
• LCD displays actual temperature & speed | |||||||
| • Built-in PID controller ensures safe heating of the medium with overheating protection | ||||||||
| • Maximum heating plate temperature up to 550℃ | ||||||||
| • Glass ceramic work plate is resistant to corrosion and is easy to clean | ||||||||
| • External temperature control is possible by connecting temperature sensor(PT1000) with an accuracy of ±0. 2℃ | ||||||||
| • Digital speed control with maximum range of 1500rpm | ||||||||
| • Outstanding brushless DC motor offers more stirring power | ||||||||
| • Two knobs enable easy adjustment of speed and temperature | ||||||||
| • “HOT”warning flashes when work plate temperature is above 50℃ even when hotplate is turned off | ||||||||
| • Remote function provides PC control and data transmission | ||||||||

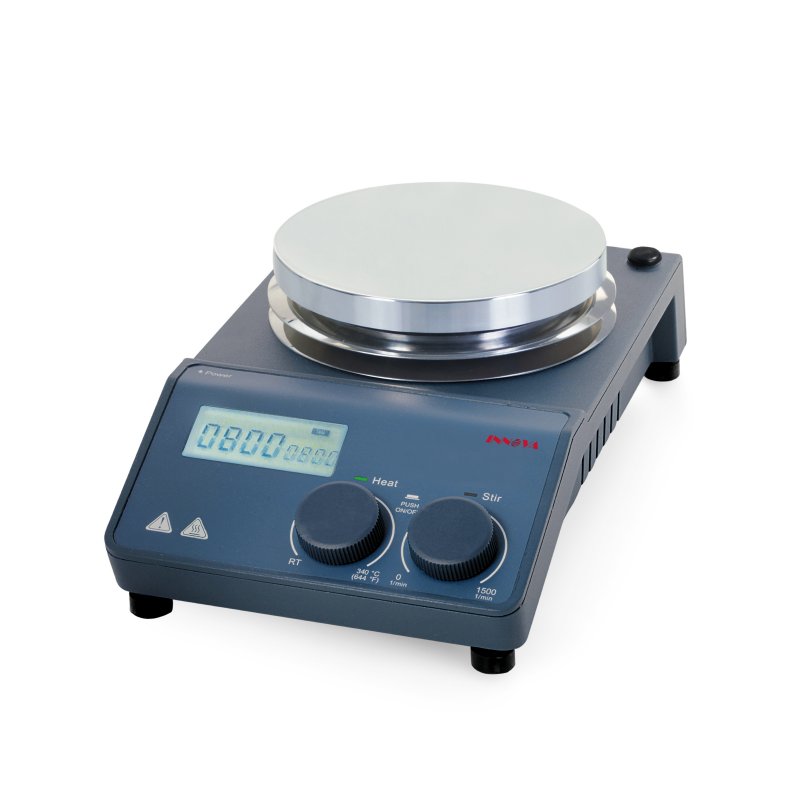

| MS-H-PROA LCD Digital Magnetic Hotplate Stirrer Three heating models for selecting(fast heating, standard heating and stable heating) MS-H-PRO+ LCD Digital Magnetic Hotplate Stirrer MS-H-ProT LCD Digital Magnetic Hotplate Stirrer with Timer MS-H-S Analog Magnetic Hotplate stirrer |
• Brushless DC motor is maintenance free and explosion-proof | |||||||
| • Digital temperature control up to 340°C | ||||||||
| • Digital speed control up to 1500rpm | ||||||||
| • Maximum stirring quantity of H2O is 20L | ||||||||
| • Safety circuits provide overheating protection | ||||||||
| • "HOT" warning flashes if plate temperature is above 50°C even when hotplate is turned off | ||||||||
| • Wide range timer function from 1 min to 99h 59min (MS-H-ProT only) | ||||||||
| • High-resolution LCD display shows actual temperatures and speed (MS-H-ProT displays the time) | ||||||||
| • External temperature control is possible by connecting the temperature sensor (PT 1000)with accuracy at ±0.2°C | ||||||||
| • Work plate with ceramic coating provides good chemical-resistant performance | ||||||||
| • Remote function provides PC control and data transmission | ||||||||
| • Wide variety of accessories available to choose | ||||||||
|
MS-H380-Pro |
• Maximum heating temperature is 380°C | |||||||
| • High resolution LCD displays actual temperature and speed | ||||||||
| • Brushless DC motor is maintenance free | ||||||||
| • Aluminum ceramIc coating work plate, allowing immediate heat transfer | ||||||||
| • External temperature control is possible with temperature sensor PT1000 | ||||||||
| • Digital speed control with maximum speed up to 1500rpm | ||||||||
| • Maximum stirring quantity of H2O at 5L | ||||||||
| MS-H280-Pro LED Digital Magnetic Hotplate Stirrer MS-H280-Pro is a perfect hotplate stirrer for handling small volume task and daily applications, with maximum temperature of 280°C |
• Digital temperature control with maximum temperature up to 280°C | |||||||
| • Digital speed control with maximum speed up to 1500rpm | ||||||||
| • Stainless steel with ceramic coating work plate provides high chemical resistant performance | ||||||||
| • External temperature control is possible by connecting temperature sensor(PT1000) with an accuracy at ±0.2°C | ||||||||
| • LED display shows temperature and stirring speed • "HOT" warning flashes if work plate temperature is above 50°C |
||||||||
| • "HOT" warning flashes if work plate temperature is above 50°C | ||||||||
| MS-H340-S4 LCD 4-Channel Digital Magnetic Hotplate Stirrer It is widely used in chemical synthesis, physical and chemical analysis, bio pharmaceuticals etc. |
• Independent heating and stirring control for each position | |||||||
| • LCD display shows real-time temperature and speed | ||||||||
| • PID controller ensures a precise and stable heating process (maximum temperature up to 340℃) | ||||||||
| • Brushless DC motor is quiet, reliable & maintenance free, and provides more powerful speed control | ||||||||
| • External temperature sensor (PT1000) with accuracy 0.2℃ | ||||||||
| • Overheating protection temperature at 420℃ | ||||||||
| • Stainless steel work plate with ceramic coating provides good chemical resistance | ||||||||
| • Wide variety of accessories available to choose from | ||||||||
| MS-H-S10 10-Position Magnetic Hotplate Stirrer |
• Maintenance-free brushless DC motor °C | |||||||
| • Maximum speed 1100rpm | ||||||||
| • Maximum temperature of work plate up to 120℃ | ||||||||
| • Stainless steel work plate, Covered with silicone cushion, provide excellent of heating uniformity and skid resistance | ||||||||
| Specifications | MS10-H500-Pro | MS7-H550-Pro | MS7-H550-S | MS-H-ProA | MS-H-PRO+ | MS-H-PROT | MS-H-S | MS-H380-Pro | MS-H280-Pro | MS-H340-S4 | MS-H-S10 |
| Work plate Dimension [W x D] | 254x254mm(10 inch) | 184x184mm ( 7 inch ) | 184x184mm ( 7 inch ) | Ø 135mm(5 inch) | Ø 135mm(5 inch) | Ø 135mm(5 inch) | Ø 135mm(5 inch) | 140x140mm | Ø 135mm(5 inch) | Ø 135mm(5inch) x4 | 180x450mm |
| Work plate material | Glass ceramic | Glass ceramic | Glass ceramic | Aluminum cover with ceramic coating | stainless steel cover with ceramic coating | stainless steel cover with ceramic coating | stainless steel cover with ceramic coating | Aluminum cover with ceramic coating | stainless steel cover with ceramic coating | Stainless steel with ceramic coating | Stainless steel covered with silicone cushion |
| Motor type | Brushless DC motor | Brushless DC motor | Shaded pole motor | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor |
| Stirring positions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 4 | 10 |
| Max. stirring quantity, [H2O] | 30L | 20L | 10L | 20L | 20L | 20L | 20L | 5L | 3L | 10L x 4 | 0.4Lx10 |
| Max. magnetic bar[length] | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm | 50mm | 50mm | 40mm | 40mm |
| Speed range | 100-1500rpm，resolution±1rpm | 100-1500rpm，resolution±1rpm | 0-1500rpm | 100-1500rpm resolution ±1rpm | 100-1500rpm resolution ±1rpm | 100-1500rpm resolution ±1rpm | 0-1500rpm | 200-1500rpm | 200-1500rpm | 200-1500rpm | 0-1100rpm |
| Speed display | LCD | LCD | Scale | LCD | LCD | LCD | Scale | LCD | LED | LCD | scale |
| Temperature display | LCD | LCD | LED | LCD | LCD | LCD | Scale | LCD | LED | LCD | scale |
| Heating temperature range | Room Temp.-500℃,increment 1℃ | Room Temp.-550℃,increment 1℃ | Room Temp.-550℃,increment 5℃ | Room temp.-340℃， increment 1℃ | Room Temp.-340℃, increment 1℃ | Room Temp.-340℃, increment 1℃ | Room Temp.-340℃ | Room Temp-380℃ | Room Temp-280℃ | 25-340℃ | Room temp.-120℃ |
| Temperature control accuracy | ±1℃(<100℃)±1%(>100℃) | ±1℃(<100℃) ±1%(>100℃) | ±10℃ | ±1℃(<100℃)±1%(>100℃) | ±1℃(<100℃)±1%(>100℃) | ±1℃(<100℃)±1%(>100℃) | - | ±1℃(<100℃)±1%(>100℃) | ±1℃ (<100℃)±1% (>100℃) | - | - |
| Overheating protection | 540℃ | 580℃ | 580℃ | 420℃ | 420℃ | 420℃ | 420℃ | 420℃ | 320℃ | 420℃ | 140℃ |
| Temperature display accuracy | ±0.1℃ | ±0.1℃ | ±1℃ | ±0.1℃ | ±0.1℃ | ±0.1℃ | - | ±0.1℃ | ±1℃ | ±0.1℃ | - |
| External temperature sensor | PT1000(accuracy ±0.2℃) | PT1000(accuracy ±0.2℃) | PT1000(accuracy ±0.2℃) | PT1000 ( accuracy±0.2℃ ) | PT1000 ( accuracy±0.2℃ ) | PT1000 (accuracy ±0.2℃) | - | PT1000 ( accuracy±0.2℃ ) | PT1000 ( accuracy±0.2℃ ) | PT1000( accuracy±0.2℃ ) | |
| "Hot" warning | 50℃ | 50℃ | 50℃ | 50℃ | 50℃ | 50℃ | - | - | 50℃ | ||
| Data connector | SD card | RS232 | - | RS232 | RS232 | RS232 | - | - | - | ||
| Protection class | IP21 | IP21 | IP21 | IP21 | IP21 | IP21 | IP21 | IP21 | IP42 | IP20 | IP20 |
| Motor rating input | 18W | 18W | 15W | 18W | 18W | 18W | 18W | 2.4W | 5W | 1.8Wx4 | 12W |
| Motor rating output | 10W | 10W | 1.5W | 10W | 10W | 10W | 10W | 1.8W | 3W | 4W | |
| Power | 1400W | 1050W | 1030W | 650W | 550W | 550W | 530W | 510W | 515W | 515Wx4 | 490W |
| Heating output | 1350W | 1000W | 1000W | 600W | 500W | 500W | 500W | 500W | 500W | 500Wx4 | 470W |
| Voltage,Frequency | 100-120/200-240V，50/60Hz | 100-120/200-240V，50/60Hz | 100-120/200-240V，50/60Hz | 100-120/200-240V， 50/60Hz | 100-120/200-240V， 50/60Hz | 100-120/200-240V， 50/60Hz | 100-120/200-240V， 50/60Hz | 100-120/200-240V， 50/60Hz | 100-120/200-240V， 50/60Hz | 100-120V,60Hz; 200-240V,50 Hz | 100-120/200-240V，50/60Hz |
| Dimension [WxDxH] | 328x424x138mm | 215x360x112mm | 215x360x112mm | 280x160x100mm | 160x280x100mm | 160x280x100mm | 160x280x100mm | 320x180x108mm | 150x260x100mm | 698x270x128mm | 182×622×65mm |
| Weight | 7.2kg | 5.3kg | 4.5kg | 2.8kg | 2.8kg | 2.8kg | 2.8kg | 2.2kg | 1.8kg | 9.5kg | 3.2kg |
| Permissible ambient temperature and humidity | 5-40℃,80%RH | 5-40℃,80%RH | 5-40℃,80%RH | 5-40℃,80%RH | 5-40℃,80%RH | 5-40℃,80%RH | 5-40℃,80%RH | 5-40℃,80%RH | 5-40℃,80%RH | 5~40℃,80%RH | 5-40℃, 80%RH |
| Timer function | 1min-99h59min | - | - | - | - | 1min to 99h59min | - | - | - |
