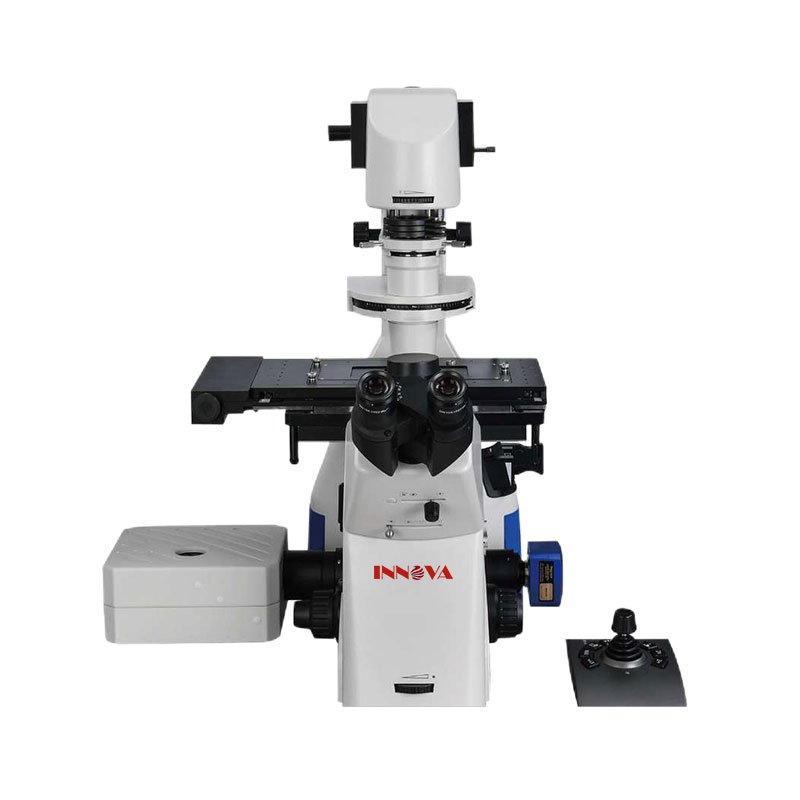

Laser confocal microscope is a high-end product in INNOVA Optics microscope series. It is designed as an essential microscopy tool for laboratory scientific research, providing powerful and stable imaging capabilities and highly integrated motorization capabilities.
1.Using 4 independent PMT laser detection units, it can realise 4-channel scanning and imaging at the same time to improve efficiency.
2.Standard scanning speed up to 4FPS (512x512 pixels)
3.LC950 pinhole structure for the infinitely variable motorised small hole, adjustable range 0-500μm
4.Can be equipped with self-developed high-performance confocal objective with 100X. Its numerical aperture (N.A.) reached the international leading 1.45, effectively improving the resolution and sharpness of laser confocal imaging.
5.Confocal rack in the practical function of 3 optical input/output common port, with better expandability, while the LC950 with 1X/1.5X switchable intermediate magnification.
6.LC950 confocal equipped with a high-precision motorised stage travel: 130mm X 100mm (table 325 mm X 144 mm) to achieve a larger scanning range, support for larger samples of large picture splicing.
7.Software features: LC950 confocal software to achieve wheel focus, software-controlled fluorescence carousel, software-controlled objective lens carousel, software-controlled spotting scope carousel, fluorescence crosstalk analysis, Gamma correction, simultaneous scanning of multi-colour, real-time fluorescence synthesis, three-dimensional model display, and other practical functions.
|
Laser Unit |
Laser 405 nm,488 nm,561 nm,640 nm |
|
Detector |
Wavelength:400-750nm, Detector: 4PMT |
|
Scanner |
Maximum Pixel Size: 4096 |
|
Scanning speed: 2 fps (512 x 512), 18 fps (256 x 256) |
|
|
0.5fps(1024X 1024), 0.12fps(2048X2048)， 0.03fps(4096X 4096) |
|
|
Scan Mode |
X-Y,X-Y-Z X-Y-T |
|
Pinhole |
Hexagon shape,Continuously Variable Transmission(CVT) |
|
Confocal Field number |
Square Inscribed in a 18mm Circle |
|
lmage bit depth |
12 bits |
|
Compatible Microscopes |
LC950 Full Motorized Inverted Microscope |
|
Optical System |
NIS60 Infinite Optical System(F200) |
|
Eyepiece |
10 x(25)，EP17.5mm, adjustable diopter -5 ~ +5, Interface ⌀30 |
|
Viewing Tube |
Seidentopf Trinocular Tube, Incined at 45 , Interpupilary Distance 47-78mm, Eyepiece lnterface ⌀30,Fixed Visibility; |
|
1) Eyepiece/Camera Switch(100/0.50/50,0/100) ; 2) Visualization/Turn off isualization/Bertrand lens Position Adiustable |
|
|
Nosepiece |
Motorized Sextuple Nosepiece(expansion slot),M25X 0.75 |
|
Condenser |
6-Position Motorized Control:NA0.55, WD26; Phase Contrast10/20,40,60 optional,DIC (10X,20X/40X) optional.Empty Hole |
|
Illlumination |
Transmitted Kohlerl Illumination,10W LED Illumination; |
|
Epi-Illumination: Wide-field Fiber illumination: |
|
|
6-Position Motorized Fluorescent Carousel(B, G,U standard outfit), Motorized Fluorescent Shutter |
|
|
Intermediate |
Manual 1X,1.5X Confocal switching |
|
Output Port |
Splitting Ratio: Left:Eyepiece=100:0, Right:Eyepiece=100:0 |
|
Stage |
Motorized Control:Moving Range 130 mm x 100 mm (325 mm x 144 mm ) |
|
Maximum Speed: 25mm/s;Resolution: 0.1pm - Repeat Accuracy: 3um. Mechnical Adjustable Slice Clamp |
|
|
Focusing System |
Coaxial Coarse and Fine Adjustment,Stroke: Focus up 7 down 2:Coarse Stroke 2mm per Rotation |
|
Fine Stroke 0.002mm per Rotation, Manual and Motorized Control, Minimun Stroke 0.0lum under Motivated Control |
|
|
DIC Plate |
10X，20X，40X Plate; Can be inserted in Nosepiece Slot; Optional |
|
Controller |
Rocking Bar, Controller Box,USB Connection Cable |
|
Computer |
1. Windows 10 Pro 64 bit Operating System |
|
2. CPU: Intel Core i7-8700. 6 Core. 12M B Cache. 3.20GHz, 4.6Ghz Turbo w/ HD Graphics 630 |
|
|
3.RAM: 16GB(2x8GB)2666MHZDDR4 UDIMM Non-ECC |
|
|
4. Hardware: 3.5"" 1TB 7200rpm SATA Hard Disk Drive |
|
|
5. Video card: NVIDIA Quadro P620 2GB,4 mDP to DP Adapter |
|
|
6. USB Interface: 6 Available USB Slots |
|
|
7. Display: 24”Monitor Display that Supports 1920X1080 Resolution |
|
|
Software |
NOMIS Advanced C |
|
Display/lmage Processing/Analysis |
|
|
2D/3D/4D Analysis,.Time-lapse Aanalysis,3D Volume Render/0rthogonal.lmage Stitching,Multi-channel Color Confocal lmage |
