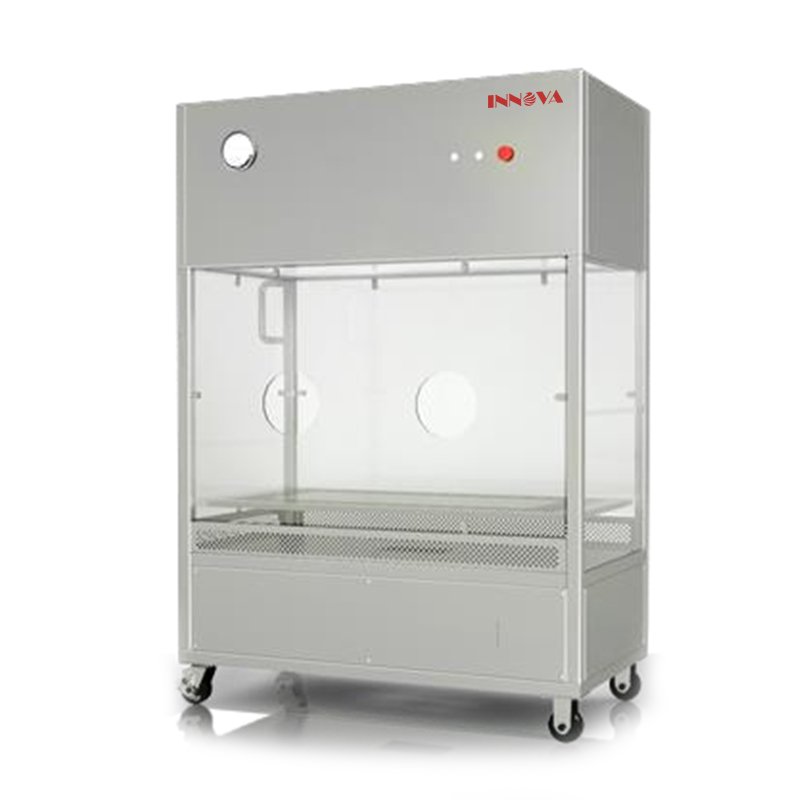

Laminar flow transport carts IFC are purification equipment for cleanrooms. These carts provide a self-circulating clean microenvironment and serve as supporting equipment in the pharmaceutical industry, enabling the transport of raw materials, semi-finished products, and finished goods under sterile conditions.
304 stainless steel frame with brushed finish and smooth, aesthetically pleasing welds. The work area meets GMP Class A requirements and achieves ISO Class 5. Touchscreen control system with LCD display offers strong controllability and ease of operation. Automatic alarm system provides real-time power monitoring.
Digital differential pressure gauge monitors pressure across the filter in real time.
Controllable battery enables 4 to 6 hours of uninterrupted operation.
Optional isolation gloves for containment operations.
Optional automatic push-feed servo system enhances operational efficiency and reduces labor intensity. Multi-module configuration fulfills integrated requirements for automated loading/unloading, transfer, temporary storage, and isolation operations.
Interface design adapts to freeze-drying or sterilization process outlet heights and structures, enabling automation and minimizing manual intervention.
Easy-clean transfer trays and safety glass sliding doors facilitate material handling.
Built-in automatic retractable charging power cord ensures aesthetic appeal and effortless cleaning.
| Model | IFC-TSGI32YH | IFC-TSGI42YH | IFC-TSGP5SYB |
| External Dimensions (WxDxH) mm | 900x680 x1850 | 1300x680x1850 | 1600x780x 2050 |
| Workbench Dimensions (WxDxH) mm | 800x600x700 | 1200x600x700 | 1500x700x700 |
| Filter Grade | G4(EN779) H14(EN1822) |
G4(EN779) H14(EN1822) |
G4(EN779) Chemical filtration (NH,98%) H14(EN1822) |
| Cabinet Material | SUS 304 | ||
| Cleanliness Level | ISO Class 5 (Class 100) | ||
| Average Air Velocity | 0.36~0.54 m/s | ||
| Lifting Stroke (Optional) | 500~800 mm | ||
| Touchscreen | Siemens | ||
| PLC | Siemens | ||
| Differential Pressure Gauge | DWYER Digital/Analog | ||
| Physical Barrier | PC Polycarbonate/Tempered Glass | ||
| Air Velocity Sensor Range | 0~2 m/s | ||
| Isolation Glove Assembly | Optional Oxidation-Resistant | ||
| Power Supply | AC 220 V/1 PH | ||
| Power Rating | 270 W | 330 W | 450 W |
| Battery Life | >5 h | >5 h | >5 h |
| Gross Weight (approx.) | 79 kg | 127 kg | 186 kg |
| Net Weight (approx.) | 97 kg | 104 kg | 152 kg |
