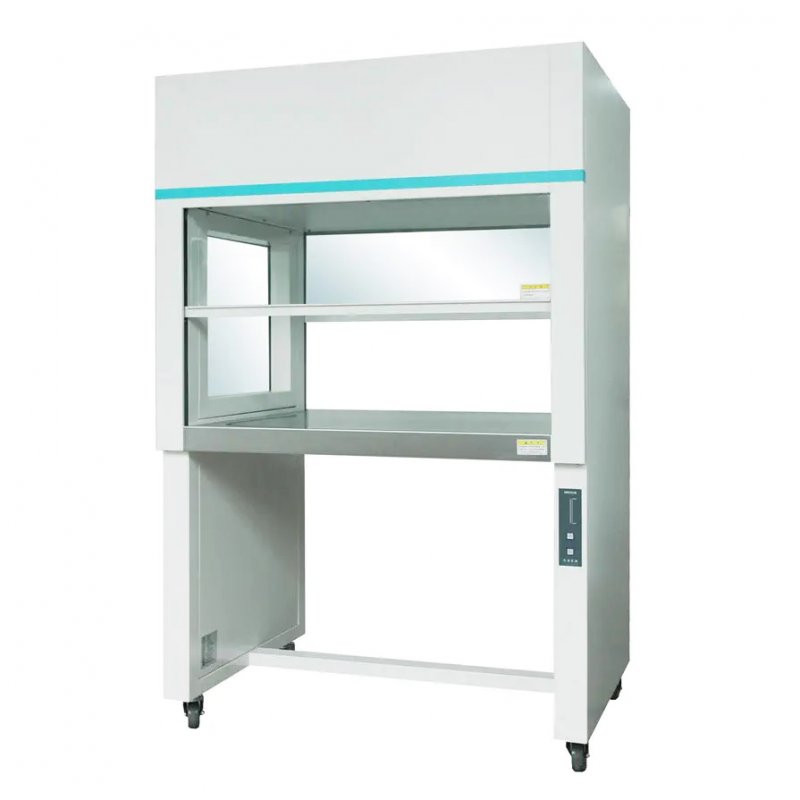

A laminar flow cabinet or tissue culture hood is a carefully enclosed bench designed to prevent contamination of semiconductor wafers, biological samples, or any particle sensitive materials. Air is drawn through a HEPA filter and blown in a very smooth, laminar flow towards the user. Due to the direction of air flow, the sample is protected from the user but the user is not protected from the sample. The cabinet is usually made of stainless steel with no gaps or joints where spores might collect.
Unique Features
◆ LCD colorful screen display interface, soft touch key operation, air velocity 3 level adjust, and display the status of the fan,lighting and UV.
◆ Set the UV lamp reservation on and off, display fan, UV lamp, filter cumulative running time.
◆ Built-in tempered glass on both sides for easy observing.
◆ Front window adopts hanging lifting system.
◆ Streamline shape decrease interference of airflow.
◆ High grade steel with static powder coating, well corrosion resistant ability, inhibiting bacterial growth effectively.
◆ Streamline shape decrease interference of airflow.
◆ High quality swivel caster easy to move and fixation.
◆ Humanized pre-filters design make customers more convenient to change and clean.
◆ Interlocking lighting and sterilization systems, with spare sockets design, short circuit protection, safe and convenient to use.
◆ Every clean bench is tested individually in according with international standard at factory for safety and performance.
| Model/Item | SW-CJ-1F | SW-CJ-2F | SW-CJ-1FD | SW-CJ-2FD |
| Cleanliness | ISO CLASS 5 | |||
| Air Velocity | 0.33 m/s ± 0.03 m/s | |||
| Noise | ≤62 dB(A) | |||
| Illumination | ≥300 Lx | |||
| Power Sypply | AC220V, 1φ, 50Hz | |||
| Consumpation※ | 250 w | 500 w | 250 w | 500 w |
| Weight | 130 kg | 170 kg | 130 kg | 170 kg |
| 870 x 690 x 520 mm | 1360 x 690 x 520 mm | 870 x 690 x 520 mm | 1360 x 690 x 520 mm | |
| Work Dimension | (34.3'' x 27.2'' x 20.5'') | (53.5'' x 27.2'' x 20.5'') | (34.3'' x 27.2'' x 20.5'') | (53.5'' x 27.2'' x 20.5'') |
| (W1XD1XH1) | ||||
| 1030 x 770 x 1650 mm | 1520 x 770 x 1650 mm | 1030 x 740 x 1650 mm | 1520 x 740 x 1650 mm | |
| Overall Dimension | (40.6'' x 30.3'' x 65.0'') | (59.8'' x 30.3'' x 65.0'') | (40.6'' x 29.1'' x 65.0'') | (59.8'' x 29.1'' x 65.0'') |
| (WXDXH) | ||||
| 780 x 610 x 50 x 1 set | 1270 x 610 x 50 x 1 sets | 780 x 600 x 50 x 1 set | 1270 x 610 x 50 x 1 sets | |
| Size & No.of | (30.7'' x 24.0'' x 2.0'' x 1 set) | (50.0'' x 24.0'' x 2.0'' x 1 sets) | (30.7'' x 23.6'' x 2.0'' x 1 set) | (50.0'' x 24.0'' x 2.0'' x 1 sets) |
| HEPA Filter | ||||
| Light | 7 w x 1 pc | 7 w x 2 pcs | 7 w x 1 pc | 7 w x 2 pcs |
| UV Light (optional) | 8 w x 1 pc | 8 w x 2 pcs | 8 w x 1 pc | 8 w x 2 pcs |
| No.of Colony | ≤0.5cfu/Dish*0.5h | |||
| Materials | Working table: All-in-one Stainless Steel, Outside cabinet: high grade steel and lacquered in ivory. | |||
| Mode of Operation | single people/double side | double people /double side | single people/single side | double people/single side |
