INNOVA can customize the entire filling line according to requirements of the production process, including lableing machine. Suitable for filling glass bottles or plastic bottles in pharmaceutical, healthcare, food industry, etc.

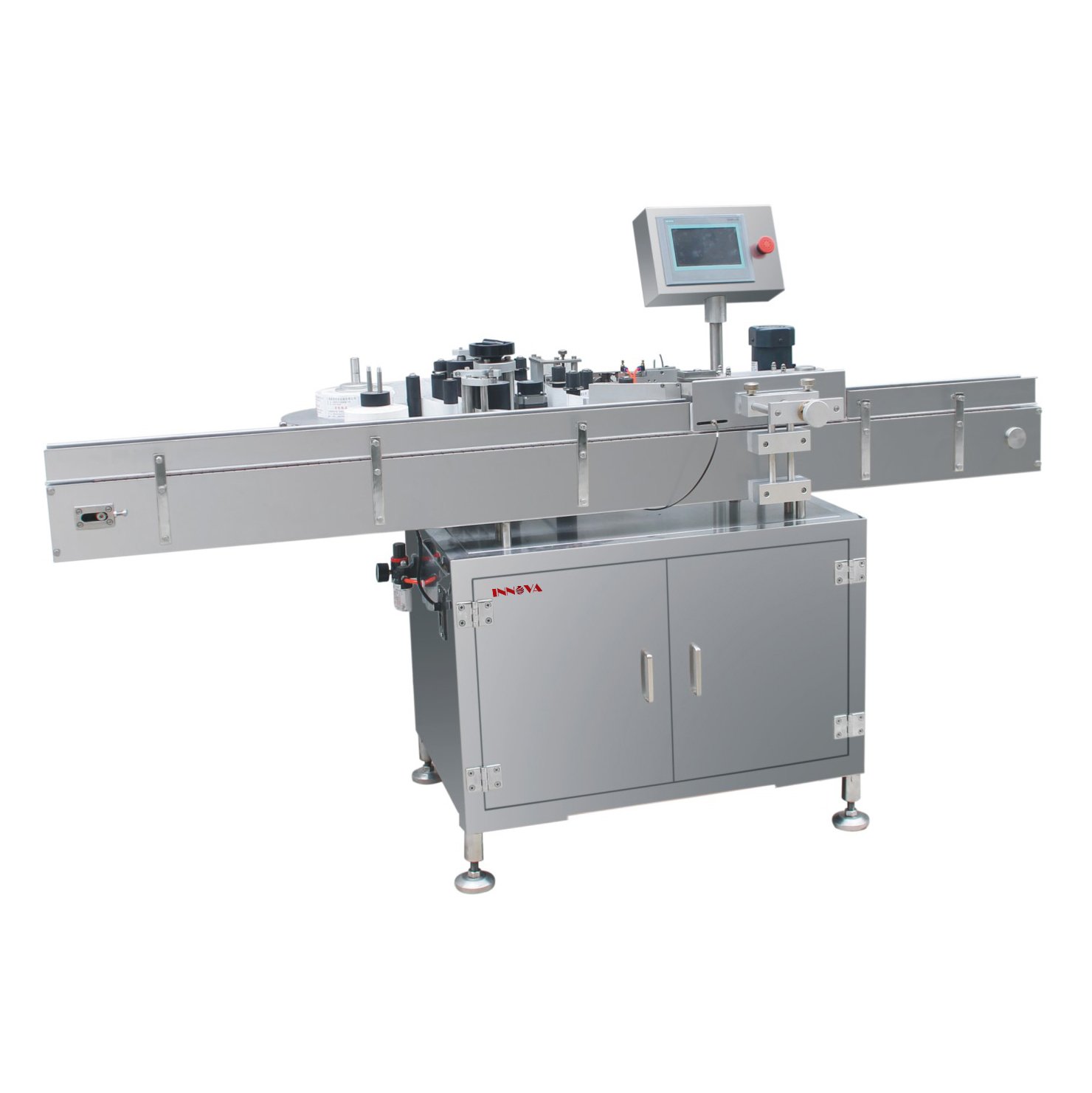

Vertical labeling machine
ILT is suitable for labeling round tube-type bottles and round objects. It is controlled by a stepping motor or servo motor.

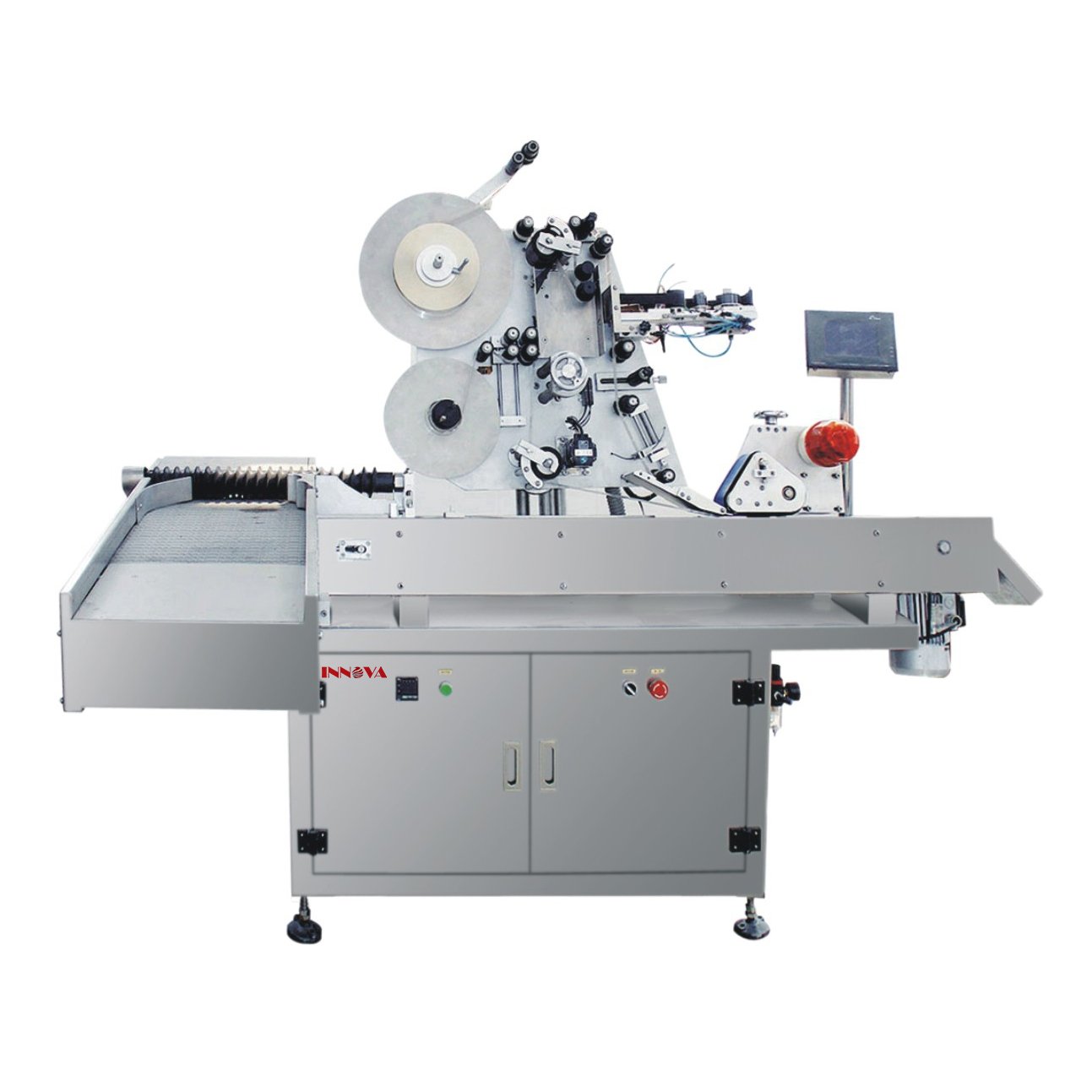

Horizontal labeling machine
IWT is suitable for labeling round tube-type bottles and round objects. It is controlled by a stepping motor or servo motor.
| Type | Labeling machine | |
| Vertical labeling machine | Horizontal labeling machine | |
| Model | ILT | IWT |
| Label length | 10-200 mm | |
| The inner diameter of the label’s core | 76 mm | |
| Outer maximum diameter | 350 mm | |
| Label width | 10-80 mm | |
| Label speed | ≤ 35 m/min | |
| Bottle range | 18-100 mm | |
| Total power | 0.8 kW | |
| Power supply | 220V 50Hz | |
| Total weight | 300 kg | |
| Overall size | 2000*600*1350 mm | 2150*700*1350 mm |
