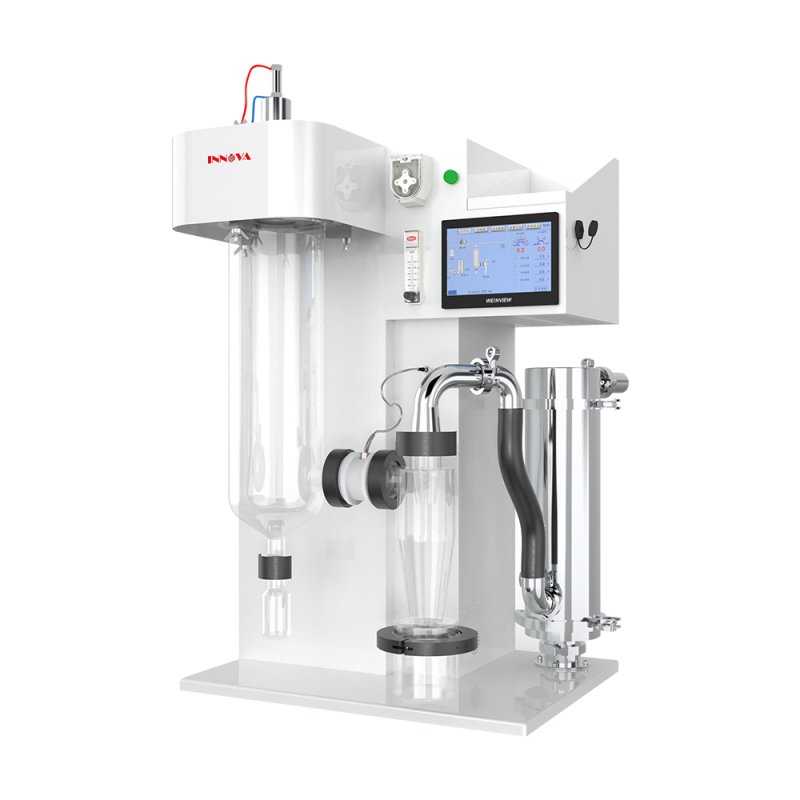

INNOVA Lab Spray Dryer is mainly used in universities, research institutes and laboratories of food, medicine and chemical enterprises to produce micro-particle powders, and has broad-spectrum applicability to all solutions such as emulsions and suspensions, and is suitable for drying of heat-sensitive substances such as biological products, biological products, etc. Pesticides, enzyme preparations, etc., because the sprayed materials are only exposed to high temperature when they are sprayed into mist-shaped particles, so they are only heated instantly, which can keep these active materials from being damaged after drying.
Design
● Desktop Mini Spray Dryer, easy to complete your operation on the laboratory bench.
● Machine buttons, thermometers, air pipes, and touch screens are all ergonomically designed, fast plugging and unplugging, and user-friendly operation.
Optional Filter
● High exhaust filtration efficiency, can capture fine dust with particle size larger than 1 micron, and the air purification efficiency can reach more than 99%.
● Stable operation, convenient maintenance, improved environment, recycled materials, green environmental protection.
Nozzle
● The top manufacturer in the nozzle industry - American Spray Company.
● High-quality nozzles guarantee high precision and maximum service life of the equipment.
PLC
● The equipment adopts German Siemens controller, a leading brand in the field of industrial control.
● Rich control modes allow our equipment to have the richest function settings in the industry.
Panel
● The touch screen adopts Taiwan's excellent brand Wei Lun Tong, the touch control is accurate, and the picture performance is delicate.
● The control interface is beautifully displayed, easy to operate, and fully functional.
● Added USB data export function to facilitate data storage.
Fan
● The size of the fan speed and the wind pressure will affect the material spraying effect of different products, and correspond to different product yields.
● Users can choose the best feeding method according to the material situation.
| Model | ISD-Mini | |||
| Maximum water evaporation | 2000mL/h | |||
| Inlet air temperature | 30～250℃±1℃ | |||
| Outlet air temperature | 30～120℃±1℃ | |||
| Fan | 1.5m3/min; Delta inverter, imported fan | |||
| Electric heater | 3.0kW/AC220V; Material: 2520 special stainless steel |
|||
| Inlet and outlet air temperature monitoring | Taiwan PT-100 platinum resistance, intelligent PID control | |||
| Spray system | Dual-fluid nozzle | |||
| Average drying time | 1.0～1.5 seconds | |||
| Automatic blocking device | The frequency of automatic needle penetration is adjustable, 0~60 seconds/time | |||
| Control System | German Siemens PLC automatic control system; 7-inch color touch screen | |||
| Software | Display and control of inlet air temperature, outlet air temperature, variable frequency, needle frequency, etc. Data logging and export, curve analysis functions, alarms and overload protection |
|||
| Electrical Standard | Made by Schneider Electric | |||
| Quick release design | Thermometer, air pipeline, power supply, all use quick plug and unplug design | |||
| Optional | Magnetic agitator, weighing system, filter bag, etc. | |||
| Voltage | AC220V, 50Hz | |||
| Dimensions (W×D×H) | 570×620×900mm | |||
| Total Weight | 60kg | |||
