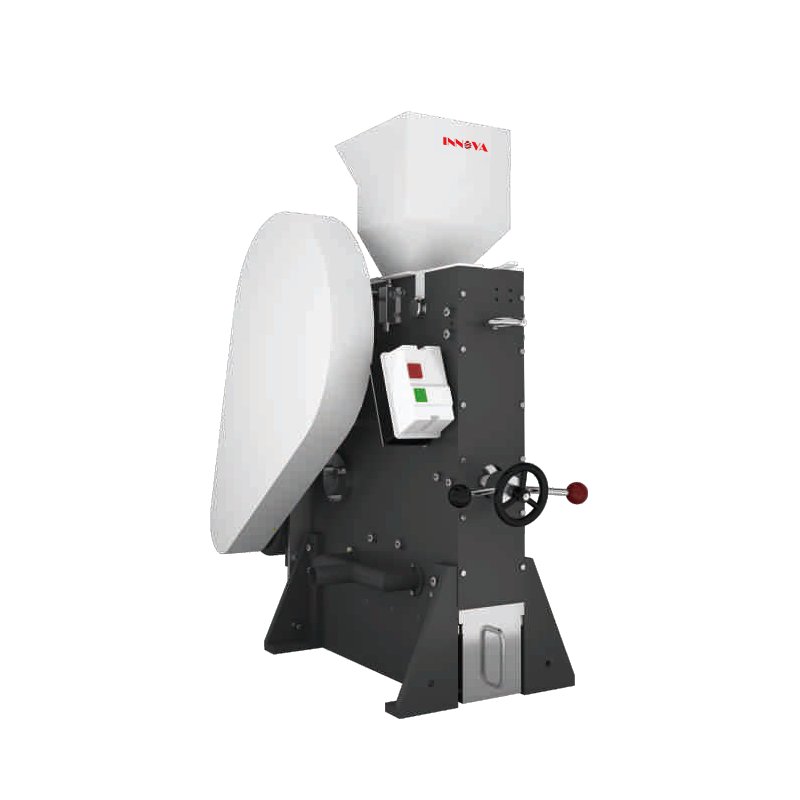

Jaw mill is a floor-type jaw crusher, widely used in geological and mineral laboratories and even factories. The sample processing capacity of 300kg per hour enables him to have the production nature of jaw crusher, which can quickly and gently crush and pre-crush medium hard, hard, brittle and large samples. Available in a variety of accessories, crushing efficiency, jaw crusher with a solid construction design, simple operation and cleaning. To enable you to achieve a crushing process that meets different analytical requirements, there are special models for the semiconductor industry. The injection funnel and collection tank are lined with polymer material and the jaw plate is made of tungsten carbide.
◆The feed funnel adopts anti-splash design, which can easily flip to one side, so that the operator can easily and quickly clean the milling chamber, and is equipped with an electronic proximity switch, so that the instrument will not be started when the funnel is opened, to ensure the safety of the operator.
◆The hand wheel with the scale can be used to adjust the zero point conveniently, adjust the gap of the jaw plate, and accurately control the particle size of the sample.
◆The instrument will produce a large amount of dust when crushing the sample, so we specially designed a dust removal device. Before the instrument is started, the dust inside the instrument will be discharged with negative pressure to achieve a clean and dust-free laboratory.
◆The instrument can provide a variety of material jaw plate for choice, to meet different experimental analysis requirements, in order to protect the jaw plate, the instrument has the function of automatic reversal after jamming.
| Injection size | <100 mm | Zero correction | Yes |
| Sample size | <2 mm | Rated voltage | 380 V, 50 Hz (three-phase AC) |
| Rotational speed | 690 rpm | Rated power | 2.2 kW |
| Receiving tank volume | 5 liters | Instrument size | 450*950*1100 mm |
| Jaw width | 99 mm | Package size | 800*1200*1400 mm |
| Jaw gap adjustment | 0~30 mm, continuously adjustable | Instrument weight | 350 kg |
