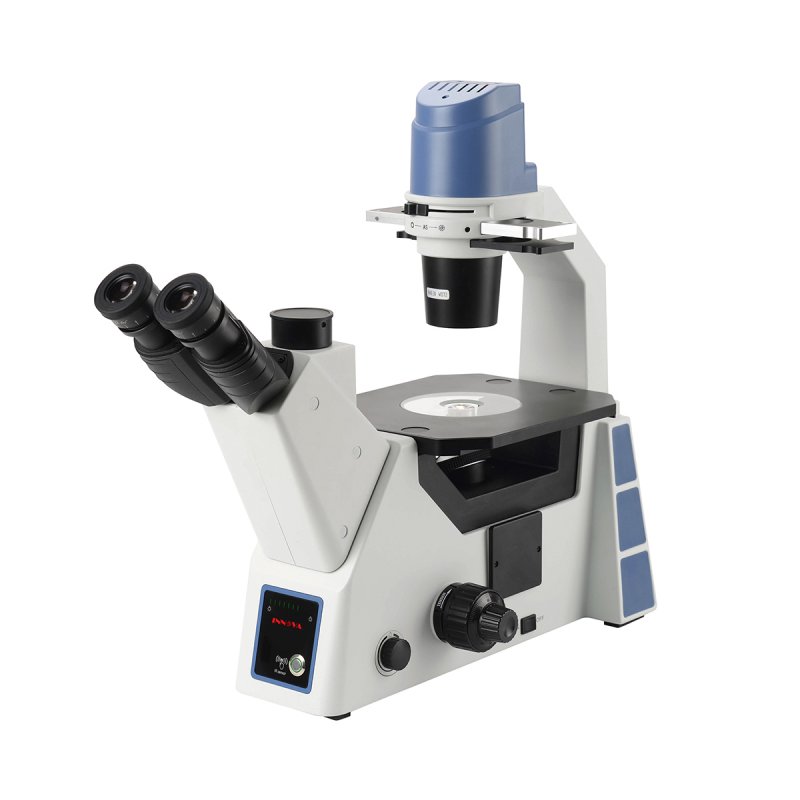

The INO3690BI inverted biological microscope is a branch of the biological microscope, which is used for observation and research of biological slices, biological cells, bacteria, living tissue culture, fluid sedimentation, etc., and can observe other transparent or translucent objects, powders, fine particles, and other objects. Compared with ordinary biological microscopes: it is suitable for observing and recording living substances attached to the bottom of Petri dishes or suspended in the culture medium and can also play a huge role in the fields of food inspection, water quality identification, crystal structure analysis, and chemical reaction sediment analysis.
Features:
Ergonomic Viewing Head
360 ° rotatable viewing head with 50mm-75mm adjustable inter-pupillary distance, the eye-point can be raised 34mm directly by rotating the tube at 65mm IPD, more convenient and faster than the traditional way.
Safe and Efficient LED
Illumination Adopting CREE 5W LED, energy saving and long-lasting, no fever, the illumination is safe and stable.
Intelligent ECO System
Based on the concept of energy conservation and environmental protection, INO3690BI is designed with an ECO system. The illumination power can be automatically on or off through infrared induction.
Practical Marking Objective
New designed "objective" with ink inside for marking the target, is very practical and effective to extract the target cell when observing and culture the living cell.
A Kit for Smartphone Connection
The specially designed kit which can be inserted into the eyepiece tube for combining a smartphone with a microscope, keep a record of time by taking photo or video.
| Model | INO3690BI Inverted Biological Microscope |
| Optical System | Infinity color corrected optical system |
| Viewing Head | 45° inclined trinocular head, 360° rotatable, inter-pupillary range: 50-75mm, fixed splitting ratio=5:5 |
| Eyepiece | High eye-point wide field plan eyepiece PL10X/22mm, with adjustable diopter, micrometer attachable |
| High eye-point wide field plan eyepiece PL15X/16mm, with adjustable diopter | |
| Objective | Infinity plan achromatic objectives 4X/10X/20X/40X/60X |
| Infinity plan phase contrast objectives 4X/10X/20X/40X | |
| Infinity plan fluorescence objectives 4X/10X/20X/40X/60X | |
| Infinity plan phase contrast and fluorescence objectives 20X/40X | |
| Nosepiece | Quintuple nosepiece |
| Frame | Biological frame with coaxial focus system, coarse range: 9mm (6.5mm up and 2.5 down), fine precision: 0.002mm. With upper limit and tension adjustment. |
| External wide voltage transformer, 100V-240V input and 12V5A output; 5W LED with light indicator, intensity adjustable. With infrared induction. | |
| Stage | 215mm X 250mm fixed stage; mechanical stage attachable, moving range: 120mm X 80mm; extension plate; slide holder; |
| Petri dish holder; Teraseki holder; metal plate; glass plate. | |
| Condenser | NA0.3 long working distance condenser, demountable. |
| Camera adapter | 0.35X, 0.5X, 0.65X, 1X C-mount adapter |
| Others | Color temperature change filter, green interference filter, infrared eliminate filter |
