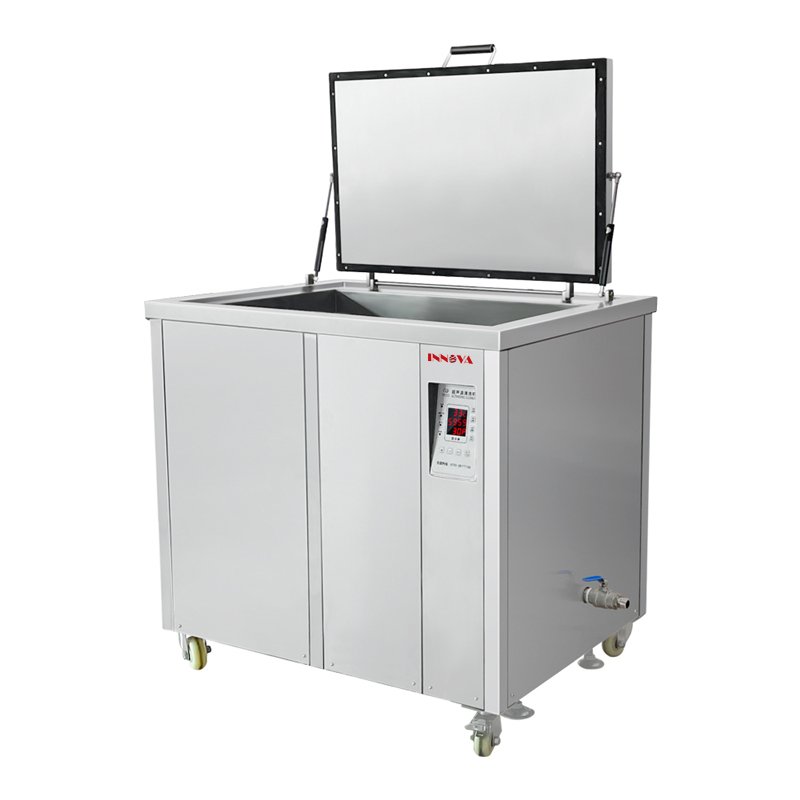

INNOVA industrial ultrasonic cleaner with easy to use, convenient maintenance and good quality.
● Full digital operation, intelligent design, one key degassing, power regulation, timing, heating and liquid level protection, and faiure alarm function.
● Our own research and development of automatic frequency tracking, MCU-sweep ultrasonic generator drive circuit, ultrasonic cleaning performance is strong, less noise.
● One key degassing added, quickly improve deaning efficiency, power 0-100% adjustable, to meet different product cleaning requirements.
● Independent development of industrial high Q value ultrasonic tansducer, imported high strength glue bonding, high ultrasonic conversion efficiency, long service life.
● All stainless steel process, vibration plate chrome coated, inside and outside groove riveting welding, tank life longer.
● Digital timing 1-9hours 59mins and dligital heating control, temperature 1-100℃ arbitrary setting. Equipped with photoelectic inductive liquid level protection funcion, effective protection of heating safety.
● The washing basket is welded with high quality 304 stainless steel mesh, and the surface is treated by electrolytic polishing.
● Strict producing and aging process, the whole machine is passed 2500V high voltage test and CE, FCC and so on certifications.
| Model | IUC-1010SG | IUC-1018SG | IUC-1024SG | IUC-1030SG | IUC-1036SG | IUC-1042SG | IUC-1048SG | IUC-1060SG | IUC-1072SG | IUC-1108SG |
| Capacity | 36-42L | 52L | 96L | 105L | 112L | 147L | 160L | 240L | 320L | 480L |
| Ultrasonic power | 600W | 900W | 1200W | 1500W | 1800W | 2100W | 2400W | 3000W | 3600W | 5400W |
| Working frequency | 17/20/25/28/40/53/68/80/100/132/170/200KHz | |||||||||
| Heating Power | 2000W | 1500W | 4500W | 4500W | 6000W | 6000W | 6000W | 9000W | 9000W | 12000W |
| Temperature range | 30~100℃ | |||||||||
| Inner tank dimension (Customizable) |
700×300×(170-200)mm | 500×350×300mm | 600×400×400mm | 600×500×350mm | 700×400×400mm | 600×600×400mm | 700×500×450mm | 800×600×500mm | 800×800×500mm | 1200×800×500mm |
| Material | SUS304 or SUS316L stainless steel Thickness: 2.0-3.0mm | |||||||||
| Power supply | 110±10%, 50/60Khz; 220 ±10%, 50/60Khz | |||||||||
