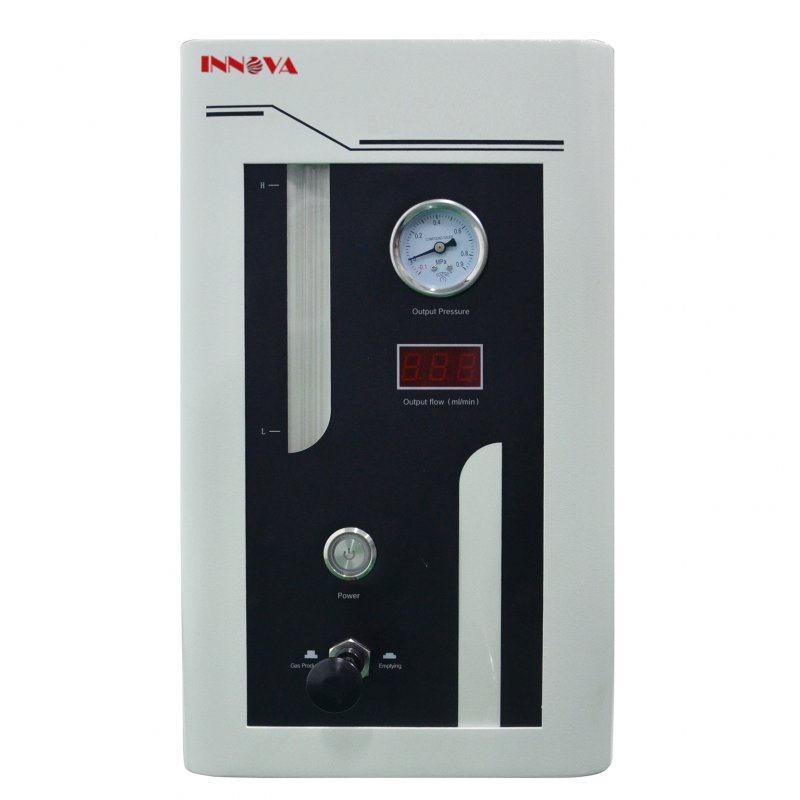

Hydrogen generator is composed of electrolytic cell, pure water tank, hydrogen / water separator, collector, dryer, pressure regulating valve, etc.
● Easy to operate, safe and reliable, only replenish distilled water for daily use.
● Stainless steel gas pipeline, electrolytic polishing, ultrasonic cleaning, equipped with overvoltage protection device, two-stage purification.
● Anti-backflow device to ensure no reflux.
● Imported special precious metal electrolysis materials can effectively improve electrolysis efficiency and constant cell temperature, and greatly improve service life of electrolysis cell.
● The flow rate is stable, the purity is not attenuated, and it can work continuously.
● Digital display of hydrogen production makes it easy to observe the working status of the instrument and judge the fault.
| Model | IHG-300ML | IHG-500ML | IHG-1000ML |
| Hydrogen purity | ≥99.999% | ||
| Production flow rate | 0-300ml/min | 0-500ml/min | 0-1000ml/min |
| Pressure | 0-0.4Mpa adjustable (Factory setting 0.3Mpa) | ||
| Power supply | 220V±10% ; 50Hz±5% | ||
| Power | 800W | 120W | 180W |
| Working conditions | Temperature: 0-50℃; Relative humidity: ≤85% | ||
| Dimension | 310×190×360mm | ||
| Interface | 1/8inch/Φ3 or others | ||
| Water replenishment mode | Automatic / manual | ||
| Weight | 10kg | 12kg | 12kg |
| Type | HOK alkali type | ||
