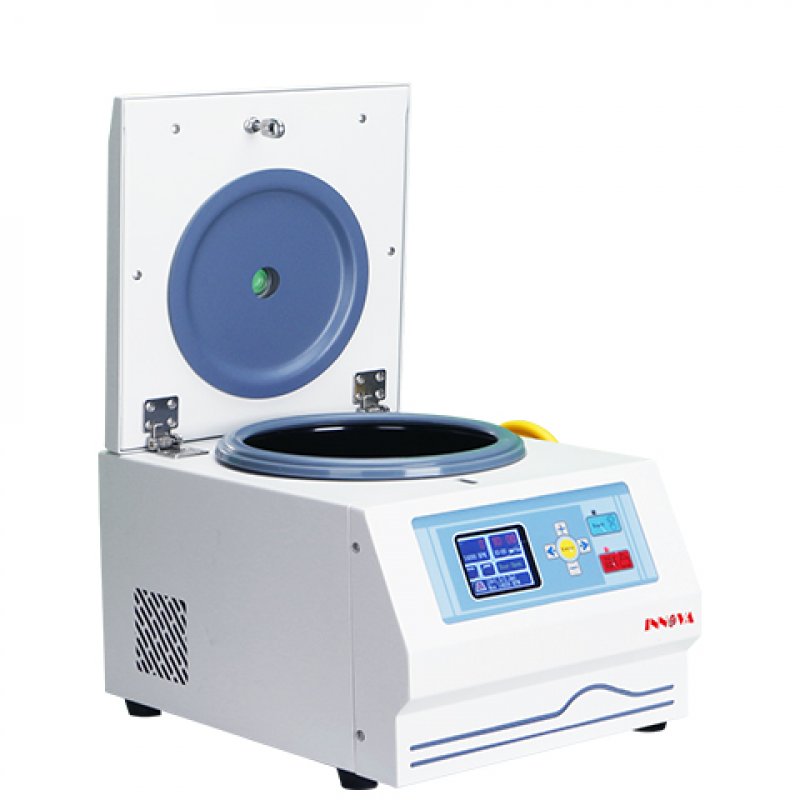

The centrifuge is widely applied in science and research units of biology,chemistry,radio-immunity,medicine,pharmacy,food and environmental protection,to make separation of biological products and blood sample.
Product Features：
Intelligent control system
◆ Equipped with five groups of user-defined preset programs.
◆ Program group shortcut key, large storage space, can store 99 program groups.
◆ Automatic electronic door lock.
◆ One key short-time centrifuge button.
Excellent kernel performance
◆ HD large LCD display and the parameters can be revised during operation without shutdown.
◆ Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.
◆ 10 gear acceleration /deceleration with linear drive.
◆ Two modes can be set: start timing/arrival revolution timing.
Careful and safe care
◆ With rotor automatic identification system .
◆ Over speed,over heat,unbalance protections with auto lid lock.
◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.
Intimate detail design
◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.
◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.
◆ It is equipped with a rotor cover that can be quickly locked for easy use.
◆ Ergonomic, low opening height, close the centrifuge cover with one press.
◆ Special noise reduction system.
| Model | Rotoh 166 | |||
| Max Speed | 16500rpm | Voltage | AC 220±22V 50Hz 10A or custom | |
| Max RCF | 21615×g | Power | 350W | |
| Max Capacity | 12×5ml | Noise Level | ≤ 62dB（A） | |
| Timer | 1s～99min59s | Size (mm) | 360×270×250 | |
| Revolutions/min | ±10r/min | Net Weight | 19kg | |
| Model | H1850 | Noise | ≤65dB(A) |
| Max. speed | 18500r/min | Power supply | AC220V±22V 50/60Hz |
| Max. RCF | 23797xg | Power consumption | 700W |
| Max. capacity | 4x100ml | Dimension (WxDxH)(mm) |
380x505x360 |
| Speed accuracy | ±10r/min | Packing dimension (WxDxH)(mm) |
480x780x460 |
| Time setting range | 1s to 99min59s | Net weight | 36kg |
| Model | Rotoh 168 | Rotoh 1814 | Rotoh 2017 | Rotoh 2117 |
| Max Speed | 16500rpm | 18000rpm | 20000rpm | 21000rpm |
| Max RCF | 26145×g | 31115×g | 31115×g | 32868×g |
| Max Capacity | 6×50ml | 4×100ml | 4×250ml | 4×750ml |
| Timer | 1s～99h59min | |||
| Revolutions/min | ±10r/min | |||
| Rotor automatic recognition | Yes | |||
| Voltage | AC 220±22V 50Hz 10A or custom | |||
| Power | 800W | 800W | 1200W | 1500W |
| Noise Level | ≤ 60dB（A） | ≤ 60dB（A） | ≤ 60dB（A） | ≤ 60dB（A） |
| Size(mm) | 480×360×330 | 480×360×330 | 560×570×370 | 660×730×445 |
| Net Weight | 38kg | 38kg | 110kg | 123kg |
