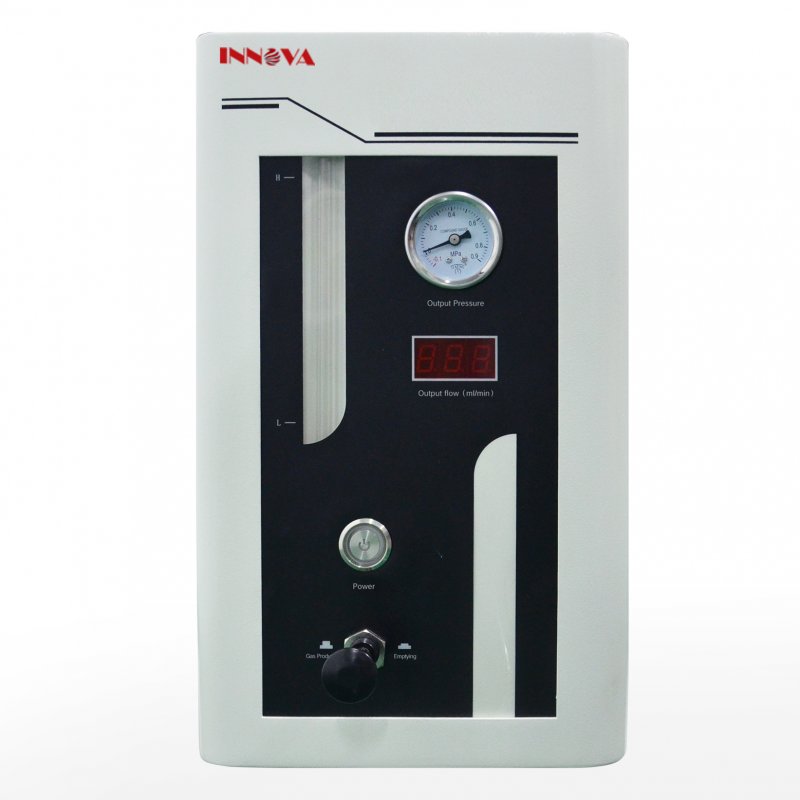

High purity nitrogen generator is mainly composed of electrolysis system, purification system and display system. The electrolytic nitrogen is directly extracted from the air by the combination of physical adsorption and electrochemical separation, and the precious metal is used as the catalyst to make the nitrogen more pure.
● Can replace the high-pressure nitrogen cylinder, which is safer.
● Automatic control of working process, simple operation and convenient daily maintenance.
● Digital display of nitrogen production makes it easy to observe the working status of the instrument and judge the fault.
● Long service life, continuous or intermittent use, stable gas production
● Self-diagnosis function and service prompt function, easy to maintain.
● Built-in gas storage tank pressure stabilizing unit, with international standard safety valve design.
● Portable design with wheels, easy to move.
| Model | IHNG-300MLG | IHNG-500MLG |
| Production flow rate | 0-300ml/min | 0-500ml/min |
| Pressure | 0-0.4Mpa | |
| Pressure stability | ＜0.2% | |
| Nitrogen purity | ＞99.997% | |
| Power | 150W | |
| Output Interface | 3mm or 1/8in ( M8×1 external thread) | |
| Liquid tank volume | 1.2L | |
| Water consumption | About10ml/h | |
| Water quality | Conductivity ≥1MΩ/cm | |
| Power supply | AC 230V(50/60Hz) Fuse: 250V/2A | |
| Working conditions | Temperature10-40℃, Relative humidity<85%, no serious dust | |
| Dimension (W×D×H) | 400×250×350 | |
| Working mode | Continuous mode | |
