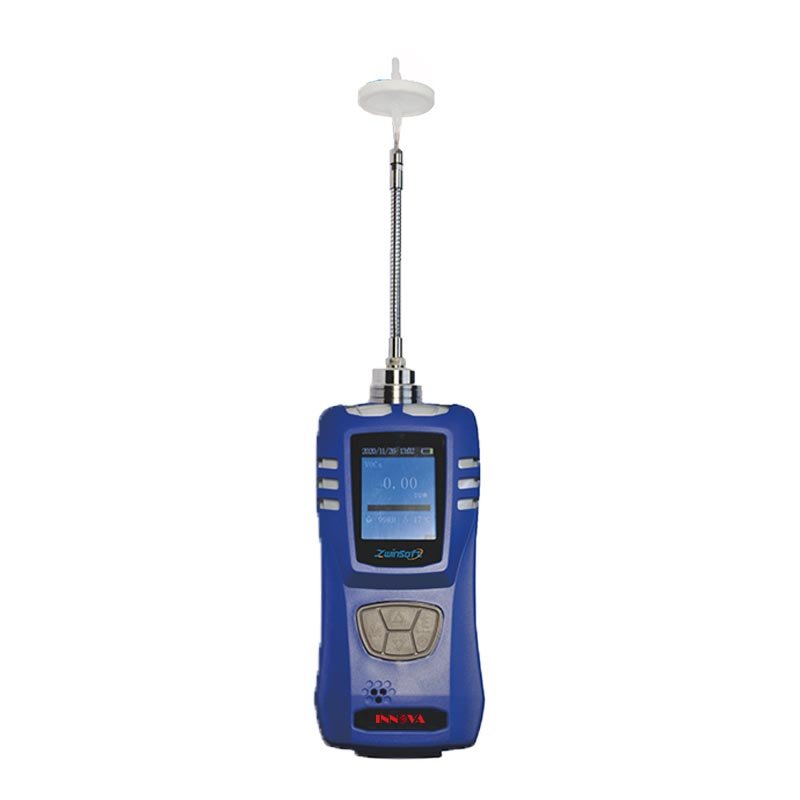

IVOC adopts high stability, high sensitivity PID photoion sensor, zero self-calibration, adjustable sampling pump speed and other proprietary technologies, which can accurately detect volatile organic compounds with a maximum concentration of 10000ppm in real time. ZWIN100X adhere to the practical strategy, equipped with high energy efficiency lithium batteries, intelligent power management; Large capacity data can be stored automatically, and data can be processed directly on the offline and computer through USB connection. Can quickly detect and store volatile organic compounds gas concentration, temperature, humidity on site. Achieve simple operation and convenient maintenance. Widely used in petrochemical, emergency rescue, industrial safety, coking, electronics, rubber, spraying and other industries to achieve equipment leak detection. On-site comparison testing, environmental law enforcement testing, personal safety protection.
·The sensor has high sensitivity, accurate measurement and detection accuracy up to ppb level
·Built-in temperature, humidity and pressure sensor, automatic compensation, to ensure the accuracy of detection
·Built-in powerful sampling pump, adjustable high and low speed, high speed sampling distance is greater than 10 meters, rapid response to broad spectrum detection, built-in more than 200 kinds of VOC monitoring factors, convenient for users to choose
·External sensor compartment, easy maintenance, no need to disassemble sensors and filters can be replaced
Built-in water vapor, dust filter, can effectively prevent water vapor and dust damage to the instrument components
| Model | IVOC-1001 | IVOC-1002 | IVOC-1003 | IVOC-1004 |
| Explosion-proof class | Ex ia IICT4 Ga | / | ||
| Case color | Blue | Yellow | ||
| range | lppb-10,20,100,200ppm | 1ppm-1000, 2000, 5000,10000ppm | lppb-10,20,100,200ppm | 1ppm-1000, 2000, 5000,10000ppm |
| Resolution | 0.1~1 PPM | |||
| Detection gas | 200 kinds of VOC gases | |||
| Detection principle | PID photoion | |||
| Settling time | <15S | |||
| key | 4 operating keys | |||
| Sampling mode | Built-in pump suction, flow 250-550ml/min | |||
| Measurement accuracy | <± 3% | |||
| Response time | (T90) Less than 5s | |||
| sensor | PID,10.6ev, smart sensor | |||
| Data recording | 600,000 pieces | |||
| Dimensional | 84×53×260 ( mm ) | |||
| Weight | 629g | |||
| Battery | 3.7V.5000mAh lithium battery | |||
| Charging time | ≤7 hours | |||
| Running time | 10 hours | |||
| Display screen | 2.4 inch 240 x 320 dot matrix 65K color TFT screen | |||
| Alarm light | Red LED, flashing | |||
| Audible alarm | The buzzer 95dB@30cm | |||
| Vibration alarm | There are | |||
| Communication port | USB | |||
| Class of protection | IP66 | |||
| Humidness | 0~95%RH | |||
