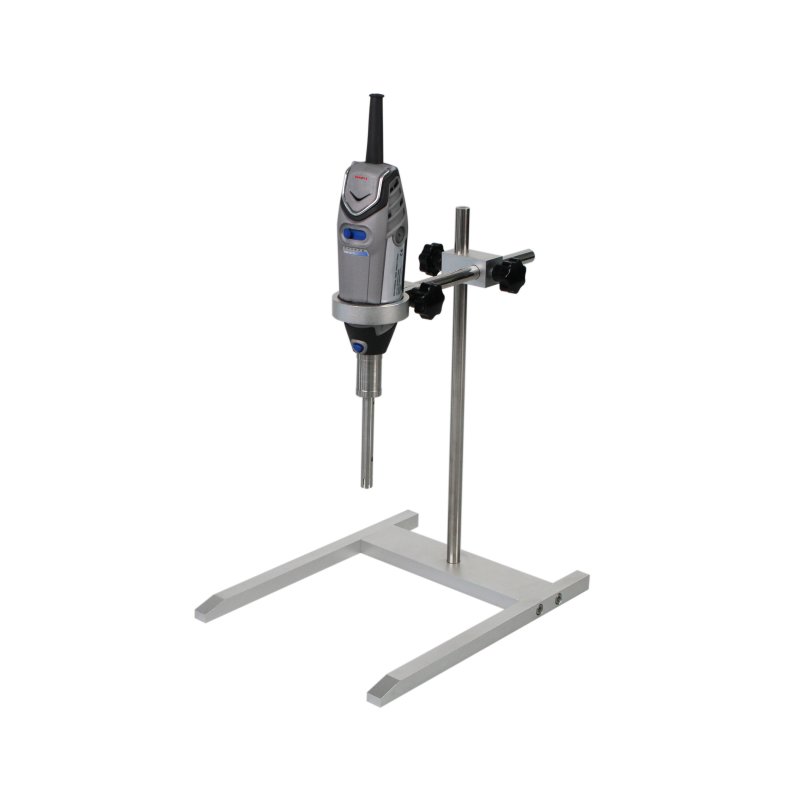

Designed for rapidly homogenize, emulsify, suspend and disrupt biological samples like tissue of animal, bacteria, yeast, plant samples,etc. in liquids. Ideal for samples from 0.1mL to 250mL depending on shaft chosen.
• Portable, lightweight with ergonomic design ideal for manual operations
• Processing volumes from 0.1-50mL or 1-250mL
• Variable speed from 8,000 to 32,000 rpm
• 316L stainless steel shafts are fully autoclavable
• Interchangeable shafts for easy dismantling and cleaning
| Specifications | D-160 | D-500 |
| Speed range | 8000-32000rpm | 10000-30000rpm |
| Max linear velocity | 6.3m/sec or 14m/sec | 22.7-36m/sec |
| Speed level | 10 stage | 6 stage |
| Working volume [H2O] | 0.1-50mL (Dispersing shaft DS-160/5) | 10-40000mL |
| 1-250mL (Dispersing shaft DS-160/10) | ||
| Max. viscosity | 5,000mPas | 10000mPas |
| Material of Dispersing Shaft | SS 316L stainless steel, PTFE | 316L stainless steel, PTFE |
| Noise | 72 dB(A) | 79 dB(A) |
| Protection class | IP20 | IP20 |
| Voltage,Frequency | 110-120V/60Hz | 110-120V/60Hz |
| 220-240V/50-60Hz | 220-240V/50-60Hz | |
| Power | 160W | 500W |
| Motor Type | AC carbon brush motor | AC carbon brush motor |
| Dimension [WxDxH] | 45mm x 55mm x 190mm | 75mm x 75mm x 280mm |
| Weight | 0.54 kg | 1.7 kg |
| Permissible ambient temperature and humidity | 0-40℃, 85%RH | 0-40℃, 85%RH |
