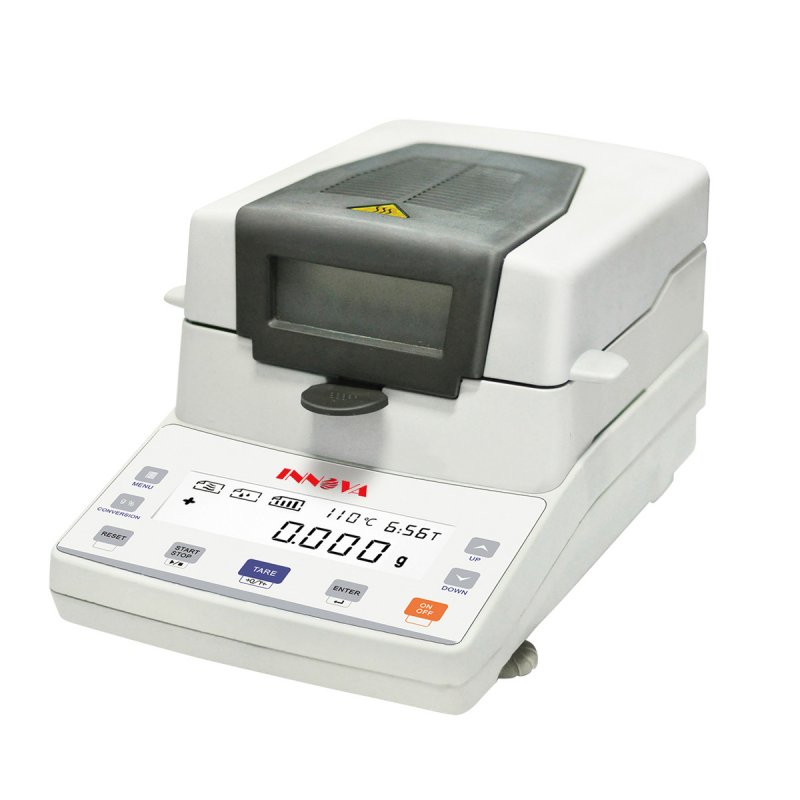

INNOVA Halogen Moisture Analyzer is equipped with a halogen lamp for INO-MW and a highlight halogen lamp for INO-MW-A. The moisture in the sample can reach the equilibrium endpoint within a few minutes to ten minutes to get the analysis result.
INO-MW series :
Halogen lamp/HBM sensor
Aluminum shell/Stainless steel chamber
LCD (White backlight with black font)
Temperature/Time set
The percentage of moisture content/dry residual
Store historical set
Option: Aluminum box/Printer/Grinder/USB
INO-100MW-A:
Halogen lamp/HBM sensor
Aluminum shell/Stainless steel chamber
High definition LCD
Highlight halogen lamp
Temperature/Time set
The percentage of moisture content/dry residual
Store historical set
Option:Aluminum box/Printer/Grinder
| Mode | INO-110MW | INO-105MW | INO-102MW | INO-100MW |
| Capacity | 110g | |||
| Readability | 0.01g | 0.005g | 0.002g | 0.001g |
| Operating Temp | 5℃-35℃ | |||
| Pan Size | Ø90mm | |||
| Heat Source | Halogen Lamp-1 | |||
| Temp.Sensor | PT 100 | |||
| Temp. Range | 40℃-199℃ | |||
| Temp.Step | 1℃ | |||
| Moisture Range | 0.00%-100.00% | |||
| Moisture Readability | 0.20% | 0.10% | 0.04% | 0.01% |
| Dry Range | 100.00%-0.00% | |||
| Dry Readability | 0.20% | 0.10% | 0.04% | 0.01% |
| Temp Setting | 40℃-199℃ By 1℃ Step | |||
| Time Setting | 1-99min by 10 s | |||
| Number of Storage | 15 | |||
| Heater | 220V ±15% 50HZ / 110V±15% 60HZ / 400W | |||
| Balance | Input: 220V 50HZ / 110V 60HZ, Output:9V | |||
| Chamber Height | 22mm | |||
| Packing Size | 490×350×360mm | |||
| Gross Weight | 7.5kg | |||
| Display | LCD | |||
| Calibration | External Calibration | |||
| Interface | RS232(Standard) / USB(Optional) | |||
| Mode | INO-100MW-A | |
| Capacity | 110g | |
| Readability | 0.001g | |
| Operating Temp | 5℃-35℃ | |
| Pan Size | Ø90mm | |
| Heat Source | Halogen Lamp-2 | |
| Temp.Sensor | PT 100 | |
| Temp. Range | 40℃-199℃ | |
| Temp.Step | 1℃ | |
| Moisture Range | 0.00%-100.00% | |
| Moisture Readability | 0.01% | |
| Dry Range | 100.00%-0.00% | |
| Dry Readability | 0.01% | |
| Temp Setting | 40℃-199℃ By 1℃ Step | |
| Time Setting | 1-99min by 10 s | |
| Number of Storage | 15 | |
| Heater | 220V ±15% 50HZ / 110V±15% 60HZ / 400W | |
| Balance | Input: 220V 50HZ / 110V 60HZ, Output:9V | |
| Chamber Height | 22mm | |
| Packing Size | 490×350×360mm | |
| Gross Weight | 7.5kg | |
| Display | High definition LCD | |
| Calibration | External Calibration | |
| Interface | RS232(Standard) / USB(Optional) | |
