Hazardous chemicals refer to highly toxic chemicals and other chemicals that are poisonous, corrosive, explosive, flammable, and combustion-supporting, and are harmful to the human body, facilities, and the environment. In order to protect our safety and health, hazardous chemicals should be placed in special cabinets.
Features：

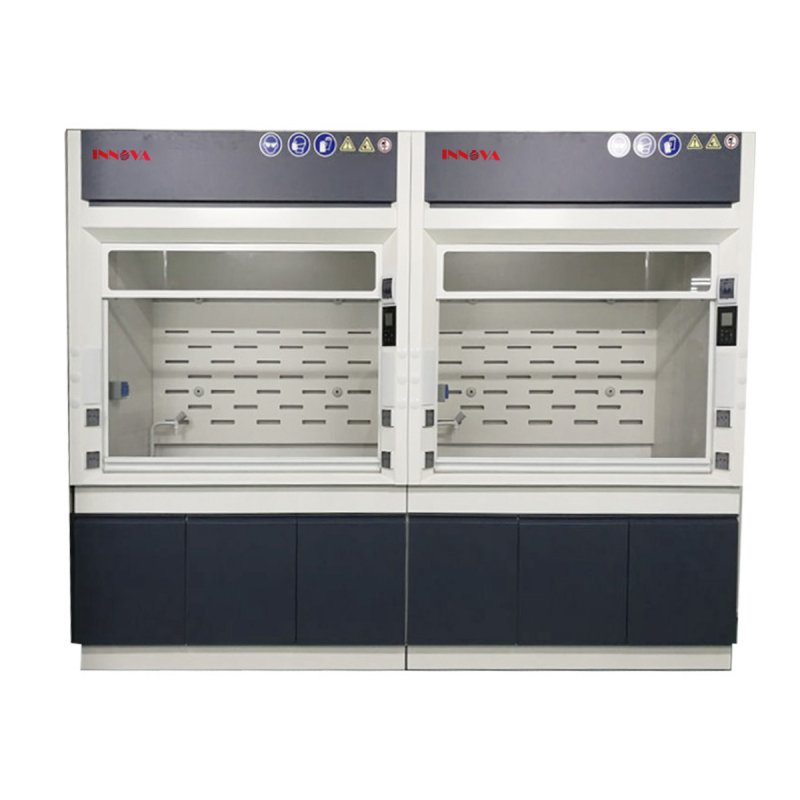

Fume hood
1. The up-and-down sliding device of the sliding door adopts the elevator counterweight structure, stepless and arbitrary stop, the glass of the sliding door is made of 5mm tempered safety glass, the handle of the sliding door is made of pp material, which has good corrosion performance, and the side of the sliding door is wrapped in chemically resistant plastic.
2. All internal connection devices need to be concealed and anti-corrosion, and there are no exposed screws.
3. The external connection devices are resistant to chemical corrosion, stainless steel parts and non-metallic materials wrapped in polyvinyl chloride.
4. Exhaust outlet: The exhaust outlet is circular and connected by a casing to reduce gas turbulence.
5. Table: 12.7mm thick core physical and chemical board table.
6. Accessories: PP small cup holder, single mouth gooseneck faucet, LCD control panel, LED lighting, electronic damper, centrifugal fan, 220V 10A power socket, etc.
| Fume hood | ||
| Model | Material | Dimensions (H*W*D) |
| SCV120B | Steel | 2350*1200*850 |
| SCV150B | Steel | 2350*1500*850 |
| SCV180B | Steel | 2350*1800*850 |
| SCV120 | PP | 2350*1200*850 |
| SCV150 | PP | 2350*1500*850 |
| SCV180 | PP | 2350*1800*850 |
| Self cleaning fume hood | ||
| Model | Material | Dimensions (H*W*D)(mm) |
| SCV080AA | Steel | 1245*800*620 |
| SCV100AA | Steel | 1245*1000*620 |
| SCV080A | Steel | 1245*800*620 |
| SCV100A | Steel | 1245*1000*620 |
| SCV127A | Steel | 1245*1275*620 |
| SCV160A | Steel | 1245*1600*790 |
|
Filter options: ①Organic filter②Ammonia filter③Inorganic filter④HEPA filter⑤Formaldehyde filter |
||
