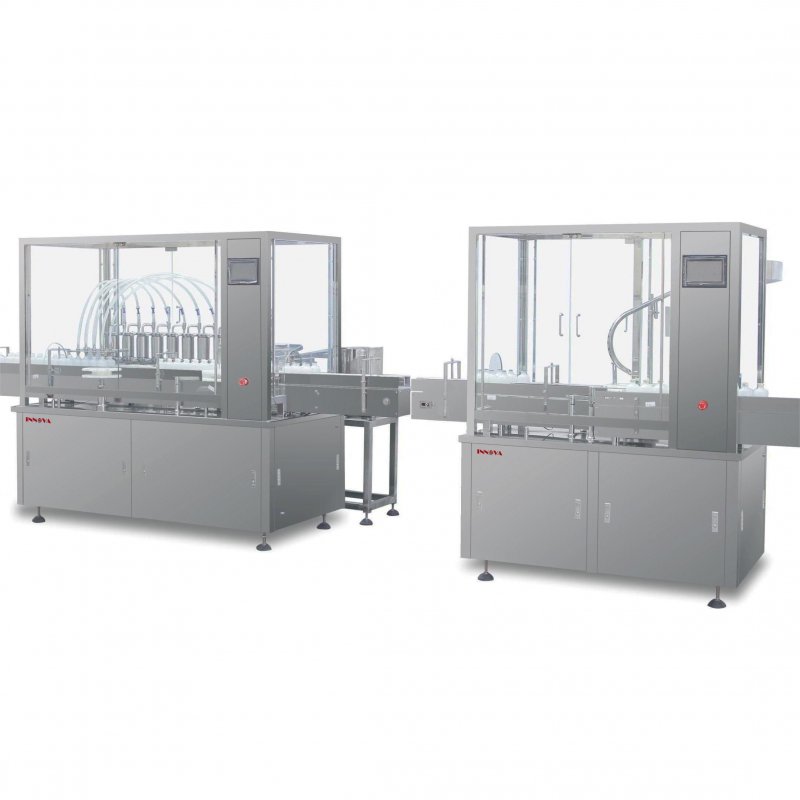

INNOVA can customize the entire filling line according to requirements of the production process, such as filling, stoppering and capping in any combination. Suitable for filling glass bottles or plastic bottles in pharmaceutical, healthcare, food industry, etc.
1. Filling, stoppering, and capping machine
IGSZ is suitable for liquid filling, stoppering, and capping. Uses a single rail to feed the bottle, the bottle is transferred by conveying belt, and the dialing wheel positions the bottle.
2. Filling and stoppering machine
IGS series are suitable for liquid filling and stoppering. Use a single rail or dual rail to feed the bottle, the bottle is transferred by conveying belt, and the dialing wheel positions the bottle.
3. Filling and capping machine
IGZ series is suitable for liquid filling and capping. Uses a single rail or dual rail to feed the bottle, the bottle is transferred by conveying belt, and the dialing wheel positions the bottle.
IYGZ is suitable for liquid filling and capping of special-shaped bottles. Uses a single rail to feed the bottle, the bottle is transferred by conveying belt, and the dialing wheel positions the bottle.
IGX is suitable for liquid filling and screw capping. This machine uses a dialing wheel to feed the bottle, the bottle is transferred by a synchronous belt, and the filling needle is reciprocating tracking, and uses 10-head screw capping.
IKF-24 is suitable for oral liquid filling and capping, adopts mesh belt inlet bottle rotary wheel transfer, the filling needle is reciprocating tracking, and the single capping knife is rotary pressing, it can automatically execute bottle feeding, filling, unscrambling on the cap, and capping, etc.
IFZ is a powder filling and capping machine and is applicable to the packaging of powder, and solid particles in the pharmaceutical and food industry with functions of filling, caps screwing, and capping. This equipment is a kind of machine type Single-headed or double-headed filling/capping is available according to the client's specific requirements.
4. Capping machine
ITX series are ferrule capping machines, suitable for gargle bottle capping.
IZ series are star wheel positioning type capping machines, suitable for the screw (crimp) capping. With 3 knife sealing, and 4 knife screw capping.
IYZ is a single knife high-speed capping machine, mainly applicable to capping operations for antibiotic bottles in pharmaceutical factories.
IDL is a cupping machine, suitable for syrup putting cup, the machine structure is reasonable, uses a three-star wheel, and continuously feed bottle and cup.
| Filling & Closing Machine | |||||||||||
| Type | Filling&stoppering machine | Filling, stoppering& capping machine | Filling and capping machine | Filling and screw capping machine | Oral liquid filling and capping machine | Powder filling and capping machine | Spray filling and capping machine | ||||
| Model | IGS-1 | IGS-2 | IGSZ | IGZ-1 | IGZ-2 | IYGZ | IGX | IKF-24 | IFZ | IPGX-1 | IPGX-2 |
| Applied range | 30-500ml | 1-500 mL | 30-500ml | 5-300ml | 5-25ml | 3-500g | 3-25ml | ||||
| Capacity | 40-60 b/min | 80-100 b/min | 40-100 b/min | 40-60 b/min | 80-100 b/min | 40-60 b/min; 80-100 b/min |
150-200 b/min | 250-450 b/min | 15-30 b/min single-headed; 20-60 b/min double-headed | 40-60 b/min | 60-80 b/min |
| Filling method | Peristaltic pump optional |
Servo system stainless steel pump |
Servo system+stainless steel pump |
Servo system stainless steel pump |
Glass pump peristaltic pump, ceramic pump optional |
/ | Servo system+2 ceramic pump | ||||
| Filling accuracy |
± 1% | ± 1% | ± 1% | ± 1% | ± 1% | 0.5-2% | |||||
|
Compressed air consumption |
0.5-0.6 MPa 5m3/h | 0.5-0.6 MPa 10m3/h | 0.5-0.6 MPa 5m3/h | 0.5-0.6 MPa 10m3/h | 0.5-0.6 MPa 10m3/h | / | 5 m3/h | ||||
| Filling head | 4 heads | 10 heads | 4 heads | 4 heads | 10 heads | 4 heads | 10-16 heads | 10-16 heads | 1 or 2 heads | 2 heads | |
| Stoppering head |
1 head | 2 heads | 1 head | / | / | / | / | / | / | / | |
| Capping head | / | / | / | 1 head | 2 heads | 1 head | 10 heads | 24 heads | 1 or 2 heads | 1 head | |
| Total power | 2.0 kW | 2.5 kW | 2.0 kW | 3.5 kW | 3.0 kW | 1.5-2.0 kW | 2.0 kW | ||||
| Power supply | 220V 50Hz | 220V 50Hz | 220V 50Hz | 380V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz | ||||
| Noise | ≤65 dB/A | ≤65 dB/A | ≤65 dB/A | ≤65 dB/A | ≤65 dB/A | ||||||
| Total weight | Around 800 kg | Around 900 kg | Around 800 kg | Around 800 kg | Around 1000 kg | Around 800 kg | Around 2000 kg | Around 2000 kg | 750 kg | ||
| Overall size: mm | 2440*1200*1700 | 3300*1200*1700 | 2440*1350*1700 | 2440*1350*1700 | 3300*1100*1700 | 2440*1350*1700 | 4500*2230*1700 | 3500*1500*1700 | 2400*1200*1800 | 2440*1300*1700 | 3000*1350*1700 |
| Closing Machine | ||||||
| Type | Ferrule capping machine | Star wheel positioning type capping machine | Single knife high-speed capping machine | Cupping machine | ||
| Model | ITX-1 | ITX-2 | IZ-1 | IZ-2 | IYZ | IDL |
| Applied range | 20-500 mL | 30-500ml | 30-500ml | 2-30 mL | 5-500 mL | |
| Capacity | 40-60 b/min | 80-100 b/min | 40-60 b/min |
80-100 b/min dual rail to feed bottle, dual head screwcapping |
240-300 b/min | 100-200 b/min |
| Capping head | 1 head | 2 heads | 1 head | 2 heads | 6, 8, 12 capping knife | |
| Total power | 1.0 kW | 1.0 kW | 1.0 kW | 1.5 kW | ||
| Power supply | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz | ||
| Noise | ≤65 dB/A | ≤65 dB/A | ≤65 dB/A | ≤65 dB/A | ||
| Total weight | Around 600 kg | Around 650 kg | 500 kg | Around 600 kg | ||
| Overall size | 2400*1350*1700 mm | 2600*1350*1700 mm | 2440*1200*1700 mm | 2600*1100*1700 mm | 1500*11480*1382 mm | 2440*1650*1700 mm |
