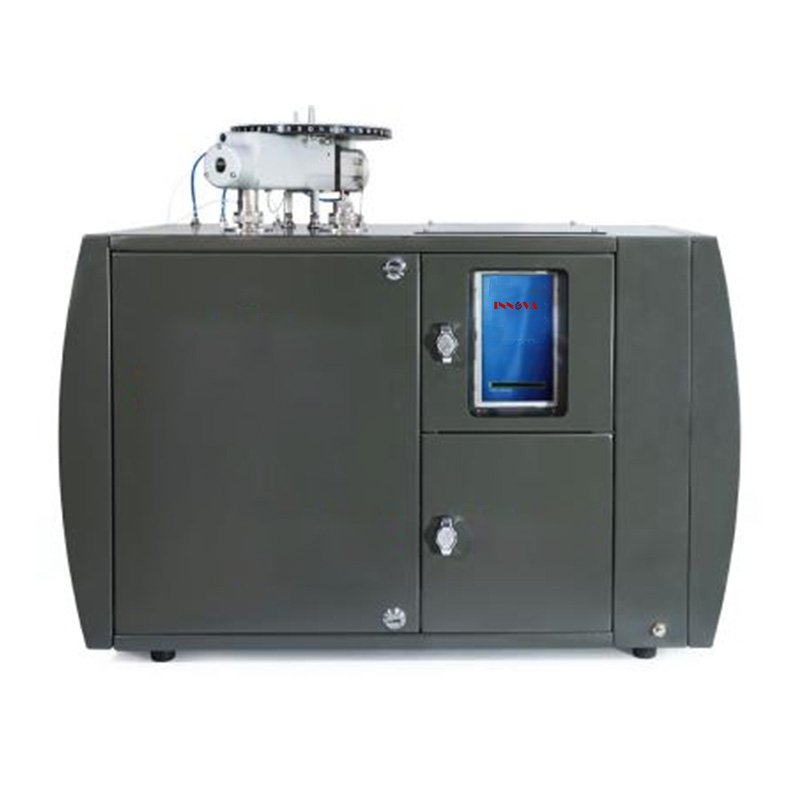

INOEA-8020 is a C-H-N-S-O Elemental Analyzer Model based on the Dumas combustion method.It is a state-of-the-art system for the elemental analysis based on sample combustion and separation of gases with a chromatographic column. The combustion products, i.e. CO2, H2O,N2 and SO2, are separated and quantified by a high resolution TCD detector.
⚫ LIMS
Clarity offers connectivity with LIMS both for sample submission and result output. This
can be done via convenient ASCII transfers.
⚫ Method and calibration history
Each chromatogram can easily be displayed under the same conditions as when it was
printed, exported or saved.
⚫ Column performance
Calculations of peaks in terms of symmetry, efficiency, resolution; all by several methods.
⚫ Batch
Automatically batch processes, displays, exports or prints any number of chromatograms.
| Type | CHNS-O | |
| Analysis time | CN | 5 min |
| CHN | 8 min | |
| CHNS | 10/25 min | |
| O | 4 min | |
| Analytical range | C | 0.002-20 mg |
| H | 0.002-5 mg | |
| N | 0.002-20 mg | |
| S | 0.002-6 mg | |
| O | 0.002-2 mg | |
| Accuracy* Precision* Sampler | <0.2% (certified standard; purity >99.9%) <0.1% (certified standard; purity >99.9%) Pneumatic autosampler Electronic autosampler Manual sampler |
|
| Dimensions | 81x50x37 cm | |
| Weight | 68 kg | |
| Power supply | 230V, 50/60Hz 5A, 1100W | |
| Adsorbed power | Helium (99.999% purity), 3-5 bar Oxygen (99.999% purity), 3-5 bar |
|
| Gas requirements | Air (oil free compressed air) | |
