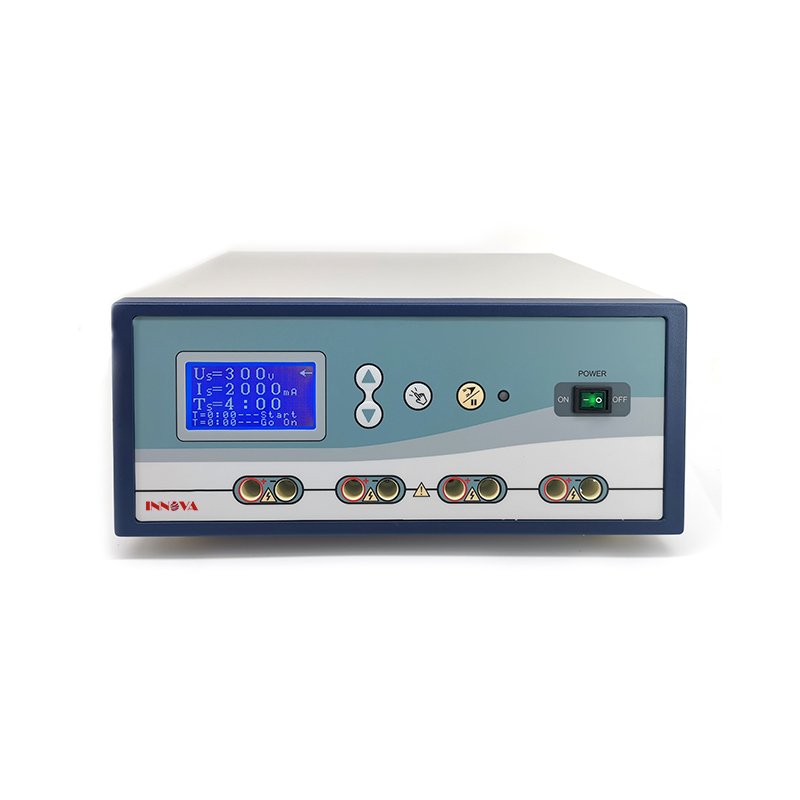

Suitable for series of electrophoresis, including DNA sequencing analysis, isoelectric focusing electrophoresis, trans-blotting electrophoresis, etc.
● Micro-computer processor intelligent control;
● Able to adjust parameters in real time under the working condition;
● LCD displays voltage, electric current, timing time;
● With automatic memory function, able to store the operation parameters;
● Able to work with constant voltage, constant current, constant power and automatically switch program according to the pre-set parameters for different needs;
● Protection and warning function for unloaded, overload, sudden-load change.
| Model | IDY-2C | IDY-6C | IDY-8C | IDY-7C | IDY-10C | IDY-12 | IDY-12C | IDY-6D |
| Volts | 0-600V | 6-600V | 5-600V | 2-300V | 10-3000V | 10-3000V | 20-5000V | 6-600V |
| Current | 0-100mA | 4-400mA | 2-200mA | 5-2000mA | 3-300mA | 4-400mA | 2-200mA | 4-600mA |
| Power | 60W | 240W | 120W | 300W | 5-200W | 4-300W | 5-200W | 1-300W |
| Type of output | Constant voltage /constant current |
Constant voltage /constant current |
Constant voltage /constant current |
Constant voltage /constant current |
Constant voltage /constant current /constant power |
Constant voltage /constant current /constant power |
Constant voltage /constant current /constant power |
Constant voltage /constant current /constant power |
| Display | LCD screen | LCD screen | LCD screen | LCD screen | LCD screen | LCD screen | LCD screen | LCD screen |
| Number of output jacks | 2 sets | 4 sets | 2 sets | 4 sets | 2 sets | 4 sets | 2 sets | 4 sets |
| Memory Function | ● | ● | ● | ● | ● | ● | ● | ● |
| Step | — | — | — | — | 9 steps | 9 steps | 9 steps | 3 steps |
| Timer | ● | ● | ● | ● | ● | ● | ● | ● |
| Volt-hour Control | — | — | — | — | ● | ● | ● | — |
| Pause/resume function | 1 group | 1 group | 1 group | 1 group | 10 group | 10 group | 10 group | 10 group |
| Automatic recovery after power failure | — | — | — | — | — | — | — | ● |
| Alarm | ● | ● | ● | ● | ● | ● | ● | ● |
| Low current mantain | — | — | — | — | — | — | — | ● |
| Stable state Indicate | ● | ● | ● | ● | ● | ● | ● | ● |
| Overload detection | ● | ● | ● | ● | ● | ● | ● | ● |
| Short-circuit detection | ● | ● | ● | ● | ● | ● | ● | ● |
| No-load detection | ● | ● | ● | — | ● | ● | ● | ● |
| Ground leak detection | — | — | — | — | ● | ● | ● | — |
| Dimensions (L x W x H) | 315×290×128 | 315×290×128 | 315×290×128 | 315×290×128 | 303×364×137 | 303×364×137 | 303×364×137 | 246×360×80 |
| Weight (kg) | 5 | 5 | 5 | 5 | 7.5 | 7.5 | 7.5 | 3.2 |
