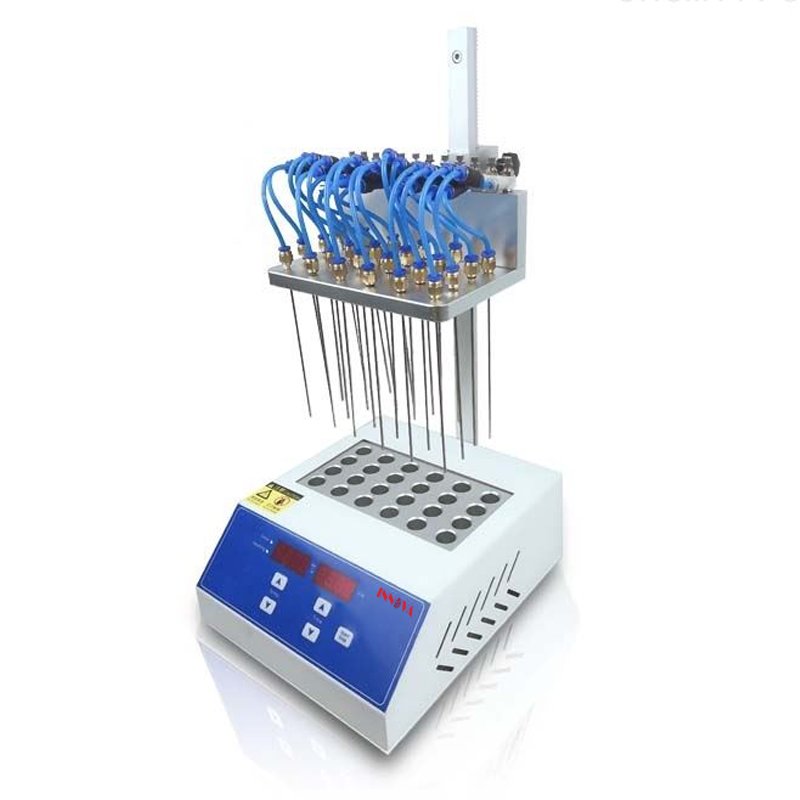

Dry-type nitrogen evaporator mainly used for the concentration or preparation of large batches of samples (such as sample preparation for drug screening, hormone analysis, liquid phase, and mass spectrometry analysis). With high purity aluminum material as the heating medium, temperature control is more accurate and wide temperature control range. The working principle is to blow nitrogen into the surface of the heated sample to quickly evaporate and separate the solvent in the sample, so as to achieve the purpose of oxygen-free concentration and keep the sample pure.
● Blowing needles are independent to avoid cross contamination.
● The height of dispensing chamber is adjusted, and the standard gas needle length is 150mm.
● Equipped with 24 airway control switches, no waste of gas.
● When concentrating toxic solvents, the entire system can be placed in a fume hood.
● Built-in over-temperature protection device, automatic fault detection and alarm function.
● LED screen, temperature display, time decrement display, simple and convenient operation.
| Model | INE-100-1 | INE-100-2 |
| Temperature range | Room temperature +5℃ ~150℃ | |
| Timing range | ≤ 99 h 59 min | |
| Temperature control accuracy | ≤ ±0.5℃ | |
| Temperature display accuracy | ±0.1℃ | |
| Temperature uniformity@100℃ | ≤ ±0.5℃ | |
| Temperature uniformity@150℃ | ≤ ±1℃ | |
| Heating duration (40~150℃) | ≤ 30min | |
| Lifting height | 200mm | |
| Standard module | One MK05 | Two MK05 |
| Gas pressure | 0.02MPA (Applicable test tube≤ 16) 0.05MPA (Applicable test tube>16) |
|
| Gas flow rate | 15L/min | |
| Gas needle length | 150mm (Applicable test tube diameter≥ Φ10mm) 80mm (Applicable test tube diameter <Φ10mm) |
|
| Number of module | 1 | 2 |
| Heating power | 150W | 300W |
| Fuse | 250V 3A Φ5×20 | |
| Dimension | 280mm×240mm×500mm | |
| Weight | 7kg | 7.5kg |
