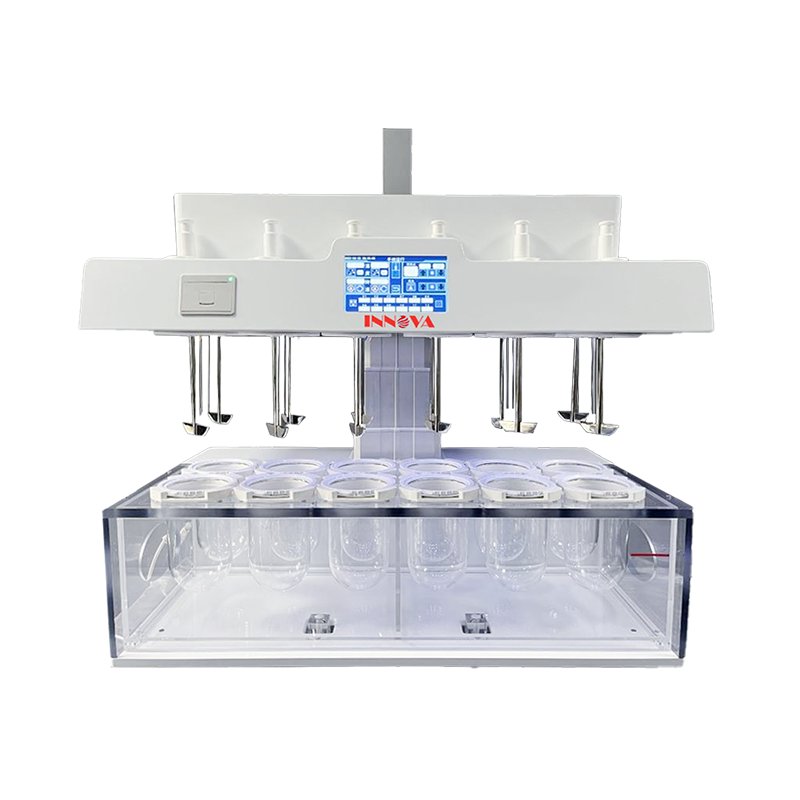

A mechatronics test equipment controlled by microcomputer is provided for the dissolution test method, which is mainly composed of a motor, a constant temperature device, a basket body, a stirring paddle, a dissolution cup and a cup cover, etc.
Dissolution tester is a high-performance dissolution testing device that is newly designed and manufactured in strict accordance with the provisions of the Chinese Pharmacopoeia and the United States Pharmacopoeia. It features a high degree of intelligence, advanced structure, accurate control, and good reliability.
Applicable methods: Chinese Pharmacopoeia Basket Method, Paddle Method, Small cup Method (optional), Paddle disc Method (optional), Rrotating drum Method (optional).
The PC cup plate and water bath box are designed as an integrated unit, featuring an elegant and spacious appearance that facilitates observation of the experimental process from multiple angles.
In line with national industry standards, with self-test and automatic protection functions.
High temperature resistance, corrosion resistance, extended service life.
The DA-08 and DA-12 have three levels of permission management and come standard with a built-in printer.
The two cups of DA-08 can be used as Isothermal refill cup, and DA-12 comes standard with an external 2L Isothermal refill cup.
|
Model |
DA-06 |
DA-08 |
DA-12 |
|
Device number |
6 cups 6 rods |
8 cups 8 rods |
12 cups 12 rods |
|
Speed zone |
1 area |
(6+6) 2 working areas |
|
|
Mode of administration |
Simultaneous dosing and sequential dosing are two ways |
||
|
Stirring paddle swing amplitude |
≤0.3mm |
||
|
Stirring speed |
20~200rpm |
25~250rpm |
|
|
Stirring direction |
Clockwise, counterclockwise |
||
|
Stirring speed resolution |
1 rpm |
0.01 rpm |
|
|
Speed error |
≤0.5% |
||
|
Swing of the basket |
≤0.8mm |
≤0.5mm |
|
|
Deviation between rotating rod and dissolving cup shaft |
≤1mm |
≤0.5mm |
|
|
Water bath Temp. |
RT~45℃（DA-08 and DA-12 Max Temp. to 55℃ is optional） |
||
|
Temperature resolution |
0.1℃ |
0.01℃ |
|
|
Temp. accuracy |
0.3℃ |
0.1℃ |
|
|
Dosing mode |
Simultaneous dosing |
Sequential dosing, simultaneous dosing |
|
|
Lifting system |
Automatic lifting |
Bamboo square column lifting |
|
|
Authority management |
/ |
Three levels, seven users |
|
|
Audit trail |
/ |
128 items x366 days |
|
|
Operating noise |
＜60db |
||
|
Ambient environment |
Temperature: 5-37 ℃ Humidity: ≤80% |
||
|
Power source |
220V 50Hz |
||
