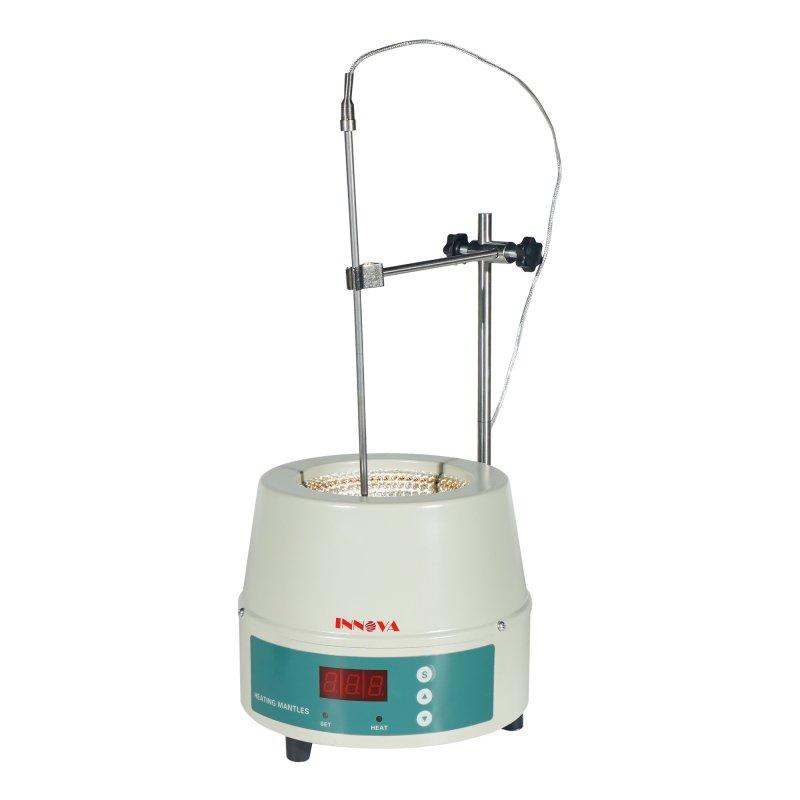

Heating Mantle is a general laboratory heating apparatus, by alkali-free glass fiber and metal heating wire compilation of hemispherical heating inner sleeve and control circuit, mostly used for glass containers temperature control heating. It has the characteristics of fast heating, high temperature, easy operation and durability, and is an ideal instrument for temperature control heating test.
PID single screen temperature controller, fast heating, good temperature uniformity and high precise temperature control.
Several rows type, produce as customer inquiry, beautiful shape, easy to operate and effecive.
PT100 Temperature sensor, withadjustable sensor rack and stainless rods.
| Model | HM-II-C |
| Heating Mode |
Surface heat-conduction |
| Surface Max. Temp.(℃) | 450℃ |
| Temperature control range | RT+20~250℃ |
| Heating Element | Nichrome wire |
| Insulation Layer | High quality aluminum silicate cotton（with CE） |
| Shell | Cold roller steel plate, surface spraying |
| Working Mode | Continuous |
PID single screen temperature controller.
Heating and stirring can be used simultaneously, stepless speed adjustable.
PT100 temperature sensor, with adjustable sensor rack and stainless rods.
| Model | HM-III-B |
| Heating Mode |
Surface heat-conduction |
| Surface Max. Temp.(℃) | 450℃ |
| Temperature control range | RT+20~250℃ |
| Speed Range | 0~1600rpm |
| Heating Element | Nichrome wire |
| Stir Bar | PTFE |
| Insulation Layer | High quality aluminum silicate cotton（with CE） |
| Shell | Cold roller steel plate, surface spraying |
| Motor Power | 0.01kw |
| Working Mode | Continuous |
|
Model |
HM-II-C/HM-III-B |
|||||||||
|
Capacity |
50 |
100 |
250 |
500 |
1000 |
2000 |
3000 |
5000 |
10000 |
20000 |
|
Heat Power（kw） |
0.08 |
0.1 |
0.15 |
0.25 |
0.35 |
0.45 |
0.6 |
0.8 |
1.2 |
2.5 |
|
Exterior size(mm) |
Φ280×220 |
Φ330×230 |
Φ340×245 |
Φ350×250 |
Φ425×320 |
Φ470×340 |
||||
|
Packing size(mm) |
290×290×300 |
340×340×350 |
360×360×300 |
390×390×310 |
430×430×350 |
510×510×380 |
||||
|
Voltage(V) |
100~120V or 200~240V |
200~240V |
||||||||
|
N.W.(Kg) |
2.5 |
5.5 |
6.5 |
7.5 |
8 |
9.8 |
16 |
|||
|
G.W.(Kg) |
2.8 |
6 |
7 |
8 |
9.2 |
12 |
20 |
|||
We can produce different size heating mantle as customer's requirement. For example:4000ml, 6000ml, 50 liters,100 liters and etc.
