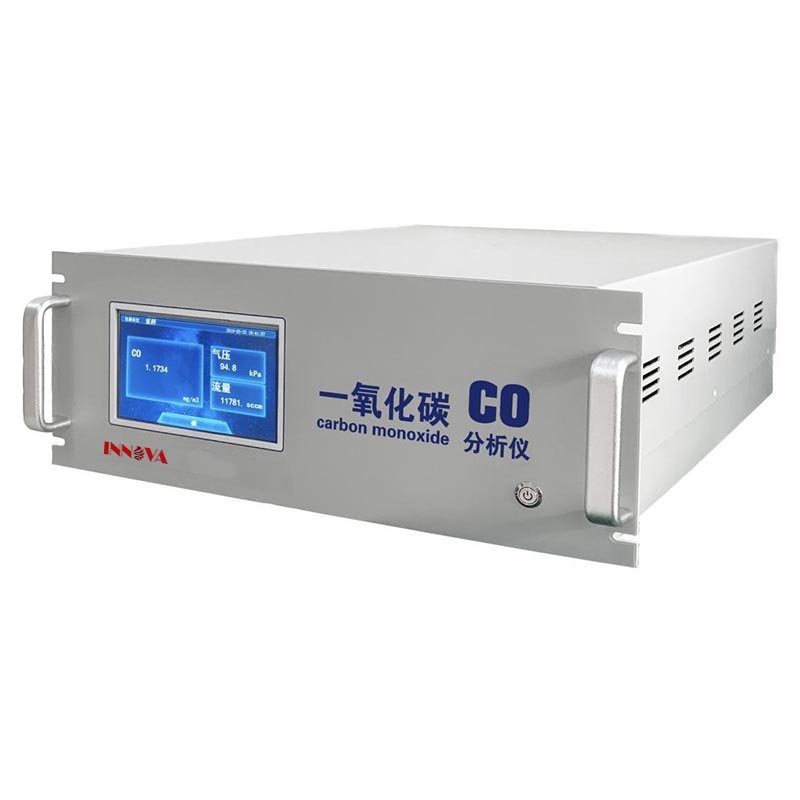

IGAS 300 CO analyzer is a gas analyzer product for dilution measurement in ambient air quality monitoring and continuous emission monitoring system (CEMS). Based on the technical principle of non-spectral infrared method related to gas filtration, combined with advanced microprocessing technology, it provides accurate and reliable ppm CO measurement and analysis
· This product has the characteristics of high measurement accuracy, good reliability, fast corresponding time, easy operation and wide application range.
· The analyzer supports manual calibration and automatic calibration, the calibration procedure can be set by the user, and supports remote control and remote upload.
· Real-time measurement data and instrument status parameters can be automatically transmitted and queried, which can facilitate relevant departments to timely and accurately grasp the air quality status.
| Argument | Index |
| Parameter range | Minimum (0~50)μmol/mol(ppm), maximum (0~1000)μmol/mol(ppm) |
| unit | nmol/mol(ppb), μmol/mol(ppm), μg/m3, mg/m3(optional) |
| Zero noise | 0.02μmol/mol (ppm) |
| Range noise | 0.04μmol/mol (ppm) |
| Lower detection limit | 0.4 nmol/mol (PPB) |
| Zero drift (24h) | < 0.1 umol/mol (PPM) |
| Zero drift (7days) | < 0.5 umol/mol (PPM) |
| Range drift | < 0.5 umol/mol (PPM) |
| Linearity | <1%FS |
| Repeatability | < 1% |
| Fluctuation error | < 1% |
| Response time | T90<60 s |
| Sample gas flow | (800±80) cc/min |
| Operating temperature | 5℃~40℃ |
| Working humidity | (0~95)%RH |
| Instrument size | 178 mm×432 mm×597mm |
| Weight | <15kg |
| Power supply | (200~240)V AC/(45~55) Hz |
