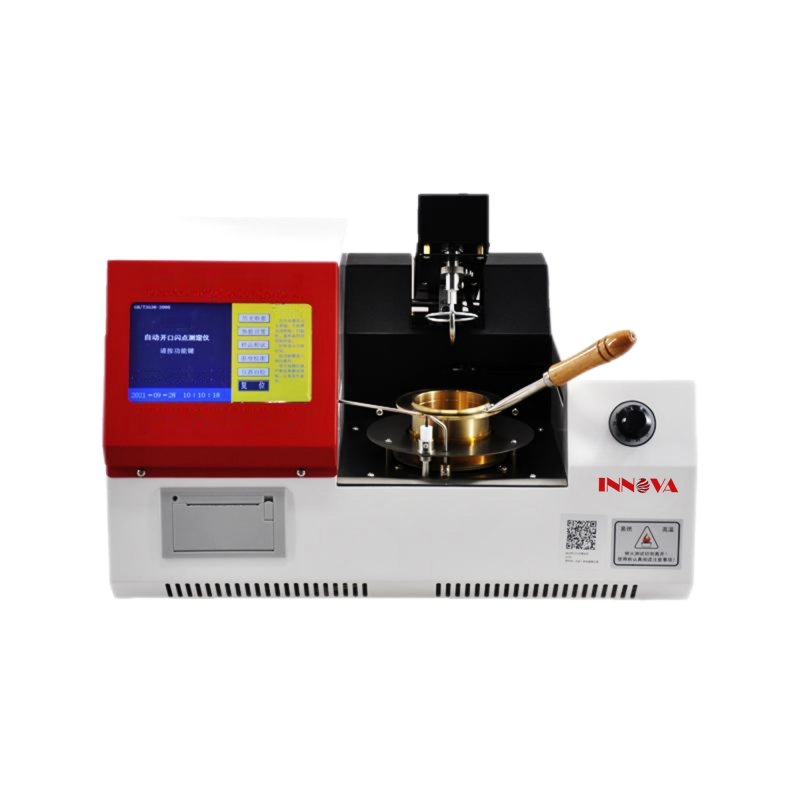

ICFP1020 Cleveland Flash Point Tester adopts analog control integrated software, modular structure, in line with ASTM D92, and other standards. Used in railway, aviation, electric power, oil industry and scientific research departments.
1.Man-machine dialogue interface, touch screen keyboard, preset temperature, sample label, atmospheric pressure, test date and other parameters with prompt menu oriented input function.
2.Simulation tracking display temperature rise and test time function curve, with Chinese operation software prompt modification function, with test date, test time and other parameters prompt function.
3.Equipped with standard RS-232 computer interface, the lower machine stores 120 groups of historical data, and can be connected to the computer
Data can be stored and stored for a long time, data can be transmitted, and the upper computer can modify the parameters of the lower computer.
4.Calculate the atmospheric pressure correction.
5.Scanning, ignition, detection, printing data automatic completion.
6.Electronic ignition, forced air cooling.
7.Detect the ignition point.
| Temperature range | Room temperature ~400℃ | ||||
| Resolution | 0.1℃ | ||||
| Repeatability | ≤4℃ | ||||
| Reproducibility | ≤8℃ | ||||
| Ignition mode | Electronic ignition, gas flame | ||||
| Ambient temperature | 5～40℃ | ||||
| Relative humidity | ≤85% | ||||
| Power consumption | ≤500W | ||||
| Supply voltage | 220v±10% 50Hz±10% | ||||
| Overall dimensions | 520mm×360mm×310mm | ||||
| The weight of the instrument | 16Kg | ||||
