The main function of the chemiluminescence imager is to achieve high-sensitivity detection and imaging of samples. It can be used for research in life sciences, drug development, environmental monitoring and other fields.
In life sciences, chemiluminescence imagers can be used to detect the activity of biomolecules, determine the concentration of drug metabolites, study the structure and function of proteins, etc. In the field of drug research and development, chemiluminescence imagers can be used to screen drugs, evaluate drug efficacy, study drug metabolism pathways, etc. In the field of environmental monitoring, chemiluminescence imagers can be used to detect harmful substances in the environment, assess the degree of environmental pollution, etc.

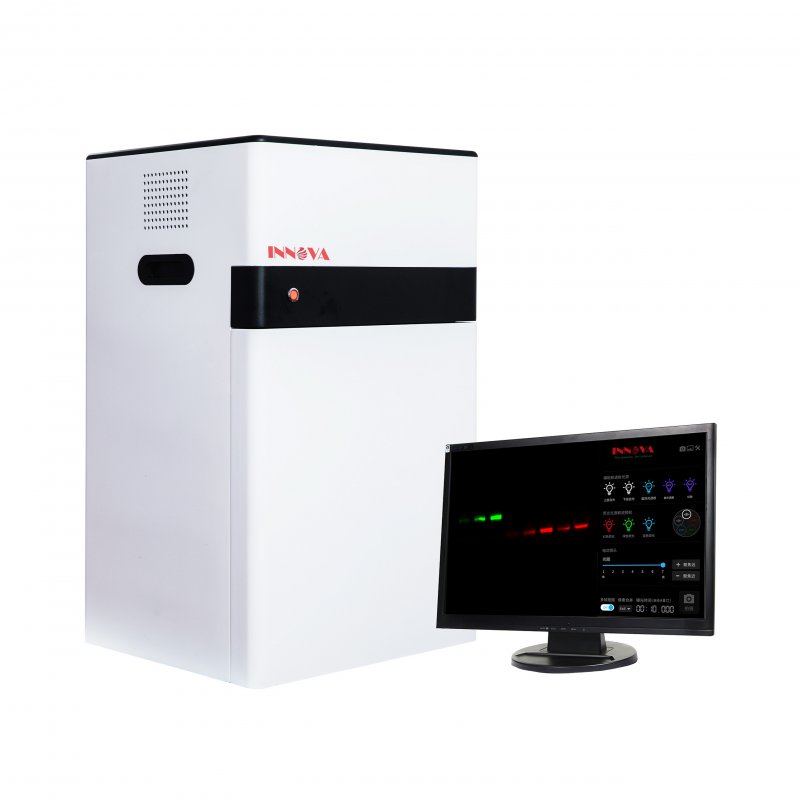

Premium Series：Mini Chemi Imager
· Smart, compact and saving the space
· Removable industrial computer instead of embedded PAD
· Optional fluorescent module
· Intuitive Software for unlimited users.
Classical Chemiluminescence Imager
· Cooled digital cameras (Back illuminated CMOS or Front illuminated CCD)
· Fixed 4 layers of chemilluminescence sample trays
· Software for unlimited users
· Focus on Chemi Imaging Application
· Optional Fluorescent application
Elite Chemi Imager
The Elite series Chemiluminescence Imagers are the second generation ChemiDoc imagers of INNOVA. The series consist of two models. Both of them adopt super fast cooled digital cameras. Such series are Chemiluminescence dertection oriented only.
Application: Chemiluminescence detection only
· Cute,smart and compact
· Intuitive Software for unlimited users.
· Cooled digital Camera
· Software for unlimited users
All INNOVA's Imagers adopt sensitive cameras in the world-first class, which allow the imaging systems to capture utter weak signals of the bands.
| Premium Series：Mini Chemi Imager | |||
| Model | C-Imager 600(P) | ||
| Application | Chemilluminescence Imaging, ECL Western Blotting | ✅ | |
| Fluorescence Imaging, Fluorescent Western Blotting | ✅ | ||
| Gel Doc | Not applied. | ||
| Protein gel；SDS Pages | Not applied. | ||
| Features | High Sensitivity， High resolution | ||
| High performance for long exposure time up to 30 min | |||
| Compact and smart, optional removable PC | |||
| Software free for unlimited number of Users | |||
| Standar Parameters |
Sensor | Back illuminated CMOS Sensor | Front illuminated CCD Sensor |
| Resolution | 9.1 Megapixels | 6 Megapixels | |
| Pixel Size | 3.76 × 3.76 μm | 4.54 x 4.54 μm | |
| Temperature | -30 ℃ regulated | ||
| Dynamic Range | 4.8OD | ||
| Pixel density | 16bit(65536 Grey scales) | ||
| Lens | F0.95 as standard (optional F0.8) | ||
| Software | Capture and Analysis Software for unlimited number of users | ||
| Classical Chemiluminescence Imager | |||
| Model | CI 900 | CI 600 | |
| Application | Chemilluminescence Imaging, ECL Western Blotting | ✅ | ✅ |
| Gel Doc | Not applied. | ||
| Protein gel；SDS Pages | Not applied. | ||
| Standard | Sensor | Back illuminated CMOS Sensor | Front illuminated CCD Sensor |
| Parameters | Resolution | 9.0 Megapixels (3000x3000) | 6 Megapixels (2680x2200) |
| Temperature | -65 ℃ below ambient (-30 degree regulated) | ||
| Pixel density | 16bit (65536 Grey scales) | ||
| Software | Capture and Analysis Software for unlimited number of users | ||
| Elite Chemi Imager | |||
| Model | CI-Elite 910 | CI-Elite 600 | |
| Standard | Sensor | Back illuminated CMOS Sensor | Front illuminated CCD Sensor |
| Parameters | Resolution | 3000x3000 | 2680x2200 |
| Quantum Efficiency | Max. 97% | Max. 75% | |
| Temperature | -30 ℃ regulated | ||
| Dynamic Range | 4.8OD | ||
