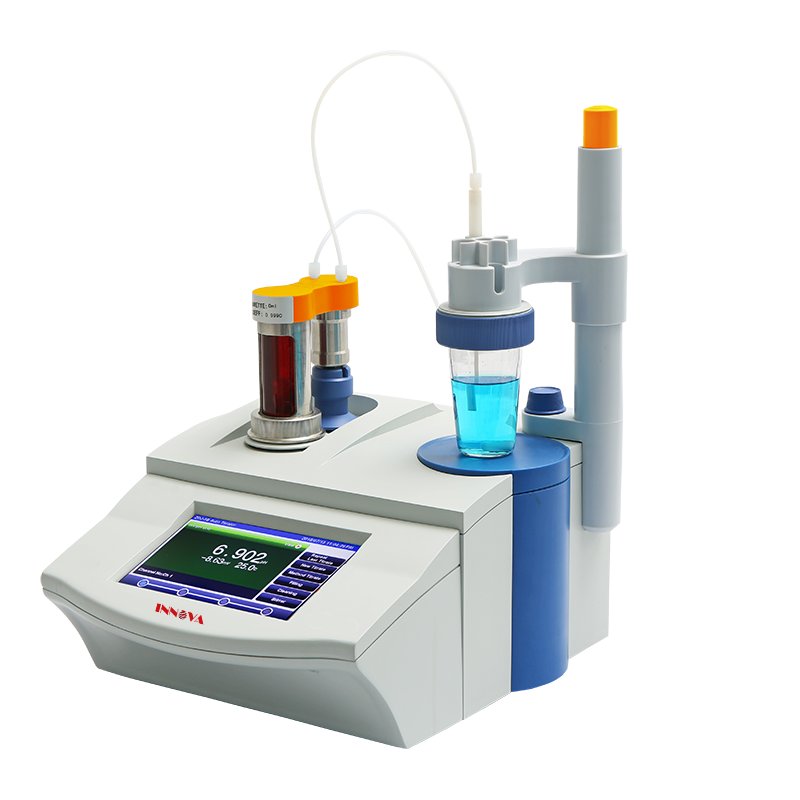

INNOVA automatic titrator is suitable for chemical analysis of various components in colleges and universities, scientific research institutions, petrochemical, pharmaceutical, drug inspection, metallurgy and other industries.
Features
● 7"colorful touchscreen and smart guide system.
● Titration methods, curves, and results are displayed in detail.
● 1 extra burette driver can be installed (optional).
● Replaceable burette with high-accuracy (10ml or 20 ml selectable).
● Intelligent operation system provides features including user management, method management, electrode management, titrant management, data management, etc.
● Support the following titration modes:
DET (dynamic equivalence point titration),
MET (monotone equivalence point titration),
SET (Preset Endpoint Titration)
MAT (manual titration).
● pH calibration and measurement are supported.
● Up to 100 user-defined methods and 10 user-defined shortcuts.
● Auto calculation with pre-defined formula.
● Store up to 200 titration data sets (GLP-compliant).
● Data analysis feature helps user review, compare and recalculate results.
● Data can be easily transferred to the printer via the RS-232 communication interface.
● Titrator can be controlled by computer via USB or RS-232 communication interface.
● Automatic sampler is supported.
| Model | Ti-50 | |
| Burette | Repeatability | 0.20% |
| Accuracy | 10ml Burette: ±0.025ml; 20ml Burette: ±0.035ml | |
| Resolution | 10ml Burette: 1/20000; 20ml Burette: 1/10000 | |
| Mechanical Unit | Resolution | 1/30000 |
| Measuring Unit | Range | -1999.0~1999.0mv, 0.00~14.00pH |
| Resolutions | 0.1mV, 0.01pH | |
| Accuracy | pH: ±0.01pH; mv: ±0.03%FS | |
| Fluctuation | ±0.3mV±1bit /3h | |
| Temp. Compensation | Range | -5.0~105.0 ℃ |
| Resolutions | 0.1 ℃ | |
| Accuracy | ±0.3 ℃ | |
| General | Power Supply | AC Adapter, 100-240V AC input, DC24V output |
| Dimension | 340×400×400mm | |
| Weight | 10kg | |
