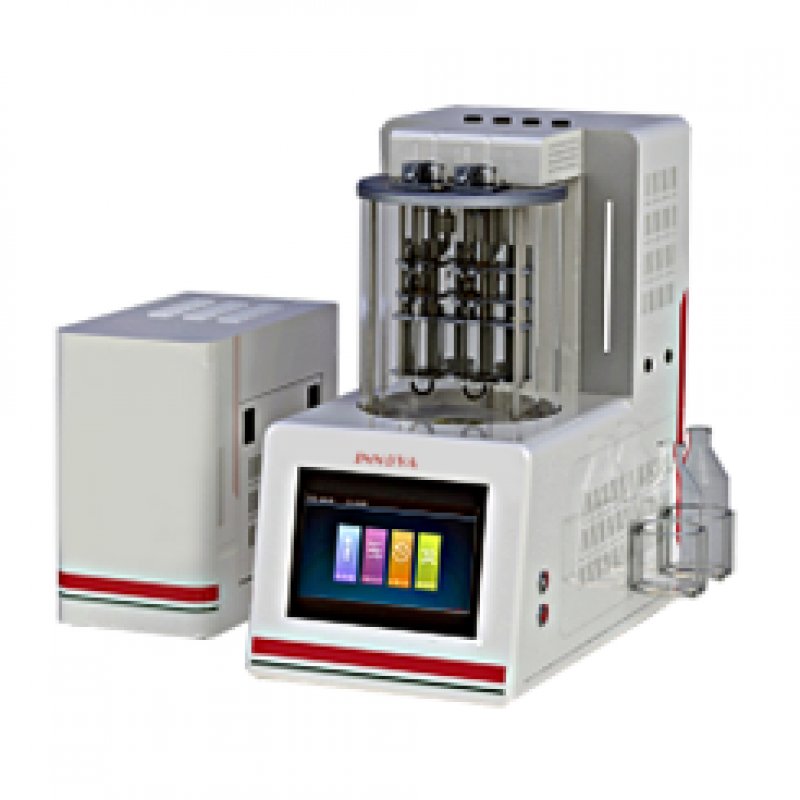

The IKV1011P Automatic Kinematic Viscosity Tester is designed to measure the kinematic viscosity of liquid petroleum products (Newtonian fluids), expressed in m²/s (commonly used as mm²/s in practice). This instrument employs integrated and discrete circuitry for simultaneous control, featuring a touchscreen LCD display. It is widely used in petrochemical, power generation, railway, and research sectors for oil analysis and quality inspection.
1. Utilizes high-precision temperature sensors to ensure accurate and precise temperature measurement;
2. Employs PLC control to enhance automation and guarantee stable precision;
4. Features a touchscreen LCD display with a user-friendly menu interface and wizard-style operation for simple and convenient use;
5. Incorporates dry-burn protection design to ensure testing safety;
6. Equipped with RJ-45 network port, RS-232, and USB interfaces for connecting to LIMS systems and barcode scanners;
7. Fully automated operation including temperature control, timing, cleaning, drying, liquid level alerts, waste liquid alerts, automatic data logging, result calculation, optional automatic data saving, and optional automatic printing.
|
Control Module: |
PLC integrated module, electronic circuitry, touchscreen control |
|
Vacuum Pressure: |
-70kPa (low noise) |
|
Waste Discharge Flow: |
220ml/min |
|
Cleaning Valve Body: |
SMC three-way valve body (corrosion-resistant and durable), SMC two-way valve (corrosion-resistant and durable) |
|
Liquid Tubing: |
Fluorocarbon hose (corrosion-resistant) |
|
Agitation Motor: |
DC motor (excellent noise reduction, minimal vibration) |
|
Temperature Control Module: |
High-precision temperature control module |
|
Temperature Control Accuracy: |
±0.01°C |
|
Detection Technology: |
Infrared photoelectric technology, Timing Accuracy: 0.001s |
|
Measurement Range: |
10-1000 mm²/s |
|
Sample Volume: |
10 mL |
|
Constant-temperature bath: |
1 |
|
Testing positions: |
2 |
|
Testing duration: |
≥200s |
|
Power supply: |
AC 220V ±10%, 50±10%Hz |
|
Total power: |
Rated 500W, max 1200W |
|
Operating Environment |
Temperature 5°C to 40°C, Humidity <85% RH; Laboratory surroundings free from strong vibration, airflow, intense electromagnetic interference, and corrosive gases. |
|
Dimensions: |
Main Unit 615mm × 350mm × 660mm Pump Box 410mm × 235mm × 405mm (L × W × H) |
|
Instrument Weight: |
60kg (with pump box) |
