INNOVA analytical balance with 0.1mg resolution, different ranges can be selected, equipped with external or internal calibration functions.
IB-T series
Internal auto-calibration
5 Inch touch panel
One key/Time trigger internal calibration
Electromagnetic force sensor
Aluminum shell/Large space windproof cover
Tare function/Counting/Density/Percentage
Unit conversion(g/mg/ct/oz)...
Under weighing
Sensitivity/Speed set
Overload alarm/Fault alarm/Level indicator
Option: Density kit (Solid/Liquid)
IB-E(N) series
Internal auto calibration for IB-EN
Electromagnetic force sensor
LCD (White backlight with black font)
Tare function/Counting/Unit conversion
Sensitivity/Speed set/Percentage
Accumulation function/peak hold/Upper and lower set
Dynamic weighing/Net and Gross/Clock function (option)
Print function(baud rate setting,Continuous communicationor press communication)
Calibration time setting
Overload alarm/Fault alarm/Level indicator
Option:USB / printer
IB(N) series
Internal auto calibration for IB-N
LCD (White back light with black font)
One key/Time trigger internal calibration
Electromagnetic force sensor
Aluminum shell/Large space wind proof cover
Tare function/Counting/Percentage
Unit conversion(g/mg/ct/oz)...
Under weighing
Sensitivity/Speed set
Overload alarm/Fault alarm/Level indicator

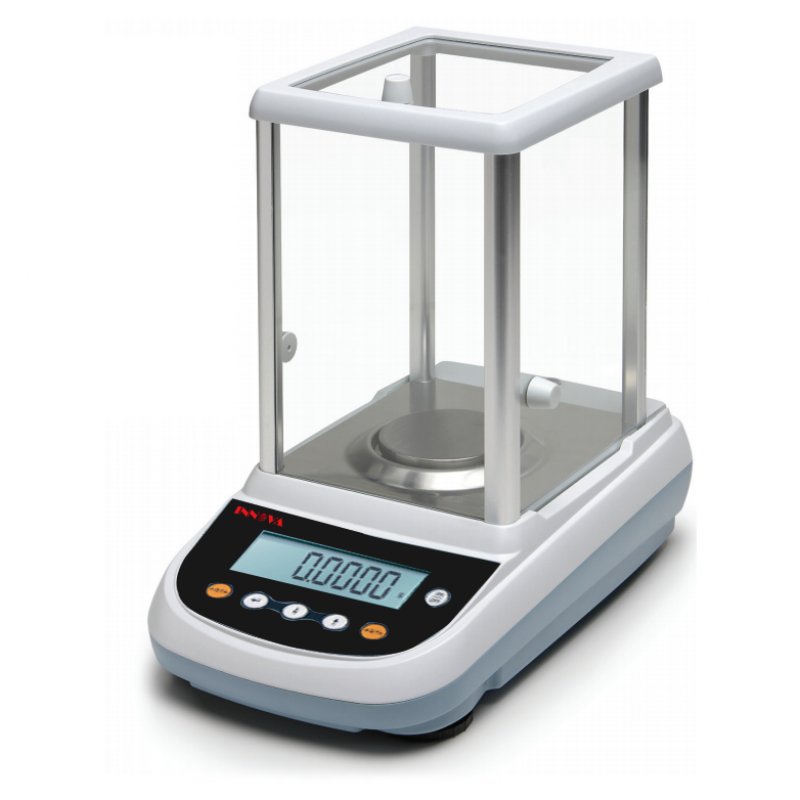

IB-AI series
Internal calibration
LCD (White backlight with black font)
One key/Time trigger internal calibration
Electromagnetic force sensor
Glass draft shield with 3 sliding doors for easy
access to the items being weighed
Tare function/Counting/Percentage
Unit conversion(g/mg/ct/oz)...
Sensitivity/Speed set
Overload alarm/Fault alarm/Level indicator
| IB-T Series | |||||
| Model | IB1004T | IB2004T | IB2204T | ||
| Capacity | 100g | 200g | 220g | ||
| Readability | 0.1mg | ||||
| Min weighing | 0.0004g | ||||
| Stable Time | ≤3s | ||||
| Pan size | Φ80mm | ||||
| Operation temp | 15-35℃ | ||||
| Repeat ability | ±0.0002g | ||||
| Linearity | ±0.0003g | ||||
| Draft shield size | 240mm×190mm×265mm | ||||
| Calibration | Internal Calibration | ||||
| lnterface | RS232(standard), USB(optional) | ||||
| Option | Printer | ||||
| Packing size | Inside：415×285×430mm Outside：475×315×485mm | ||||
| G . weight | 11kg | ||||
| IB-E(N) Series | |||||
| Model | IB1004E(N) | IB1204E(N) | IB2004E(N) | IB2204E(N) | |
| Capacity | 100g | 120g | 200g | 220g | |
| Readability | 0.1mg | ||||
| Min weighing | 0.0004g | ||||
| Stable Time | ≤3s | ||||
| Display | LCD（white back light with black font） | ||||
| Pan size | Φ80mm (standard), Φ90mm (optional) | ||||
| Operation temp | 5-35℃ | ||||
| Repeat ability | ±0.0002g | ||||
| Linearity | ±0.0003g | ||||
| Dimension | 300×200x295mm | ||||
| Draft shield size | 180×175×200mm | ||||
| Calibration | Internal calibration for IB-EN, External calibration for IB-E | ||||
| lnterface | RS232C(standard), USB/Printer(optional) | ||||
| Packing size | 425×320×415mm | ||||
| G . weight | 6kg | ||||
| Power | 100-240V 50/60Hz | ||||
| IB(N) Series | |||||
| Model | IB1004(N) | IB1204(N) | IB2004(N) | IB2204(N) | IB3004 |
| Capacity | 100g | 120g | 200g | 220g | 300g |
| Readability | 0.1mg | ||||
| Min weighing | 0.0004g | ||||
| Stable Time | ≤3s | ||||
| Pan size | Φ80mm | ||||
| Operation temp | 15-35℃ | ||||
| Repeat ability | ±0.0002g | ||||
| Linearity | ±0.0003g | ||||
| Dimension | 340x215x350mm | ||||
| Draft shield size | 240mm×190mm×265mm | ||||
| lnterface | RS232(standard), USB(optional) | ||||
| Calibration | Internal calibration for IB-N, External calibration for IB | ||||
| Option | Printer | ||||
| Packing size | Inside：415×285×430mm Outside：475×315×485mm | ||||
| G . weight | 11kg for IB-N, 10kg for IB | ||||
| IB-AI Series | |||||
| Model | IB314AI | IB414AI | IB514AI | IB614AI | IB1104AI |
| Capacity | 310g | 410g | 510g | 610g | 1100g |
| Readability | 0.1mg | ||||
| Min weighing | 0.0004g | ||||
| Stable Time | ≤4s | ||||
| Display | LCD（white back light with black font） | ||||
| Pan size | Φ80mm | ||||
| Operation temp | 5-35℃ | ||||
| Repeat ability | ≤220g: 0.1mg 220g-310g: 0.3mg 310g-610g:0.35mg |
||||
| Linearity | ±0.0005g | ||||
| Draft shield size | 162mm×171mm×225mm | ||||
| Calibration | Internal calibration | ||||
| interface | RS232C(standard), RS485/Printer(optional) | ||||
| Dimension | 345×215×345mm | ||||
| N . weight | 7kg | ||||
